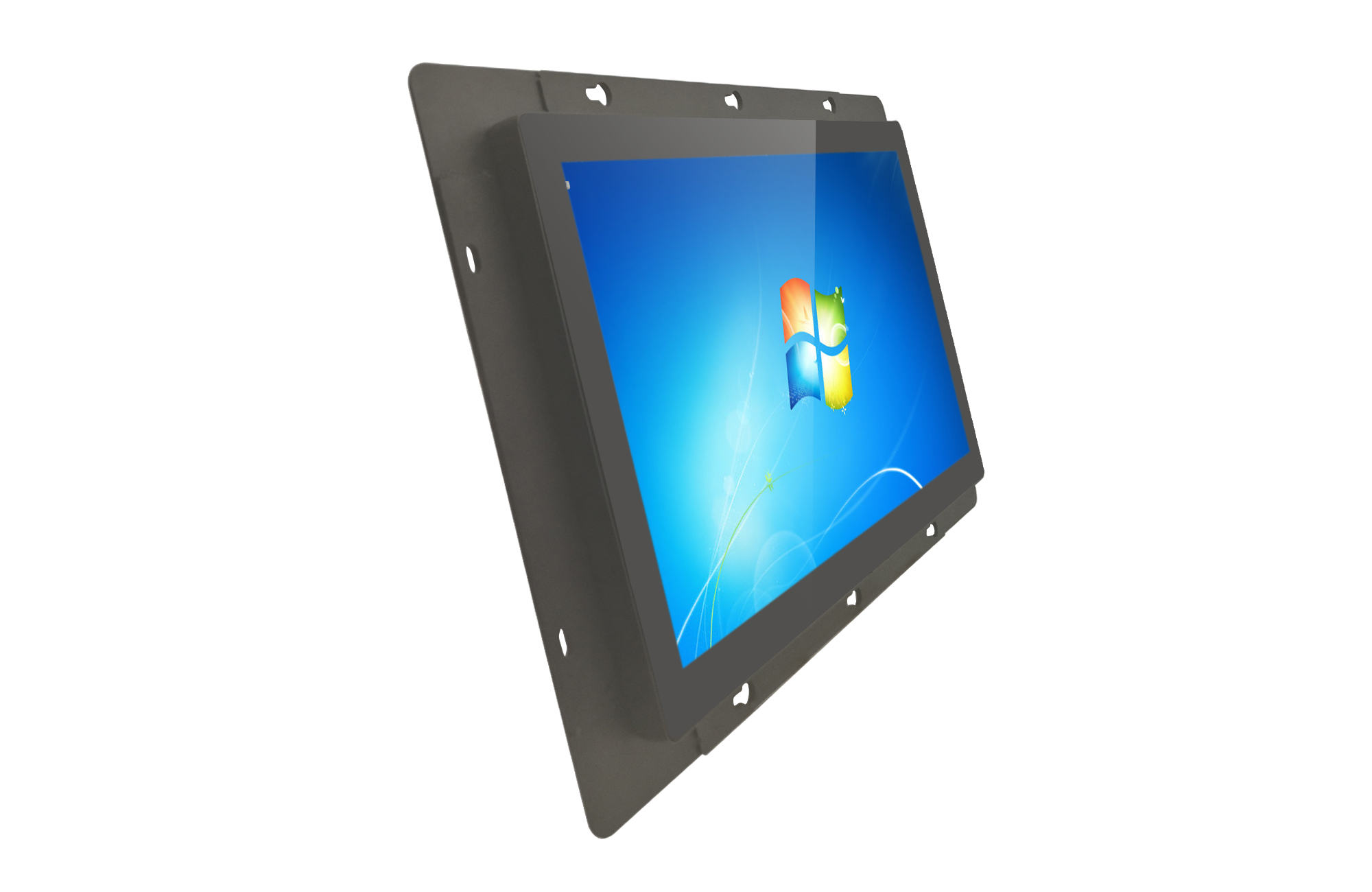

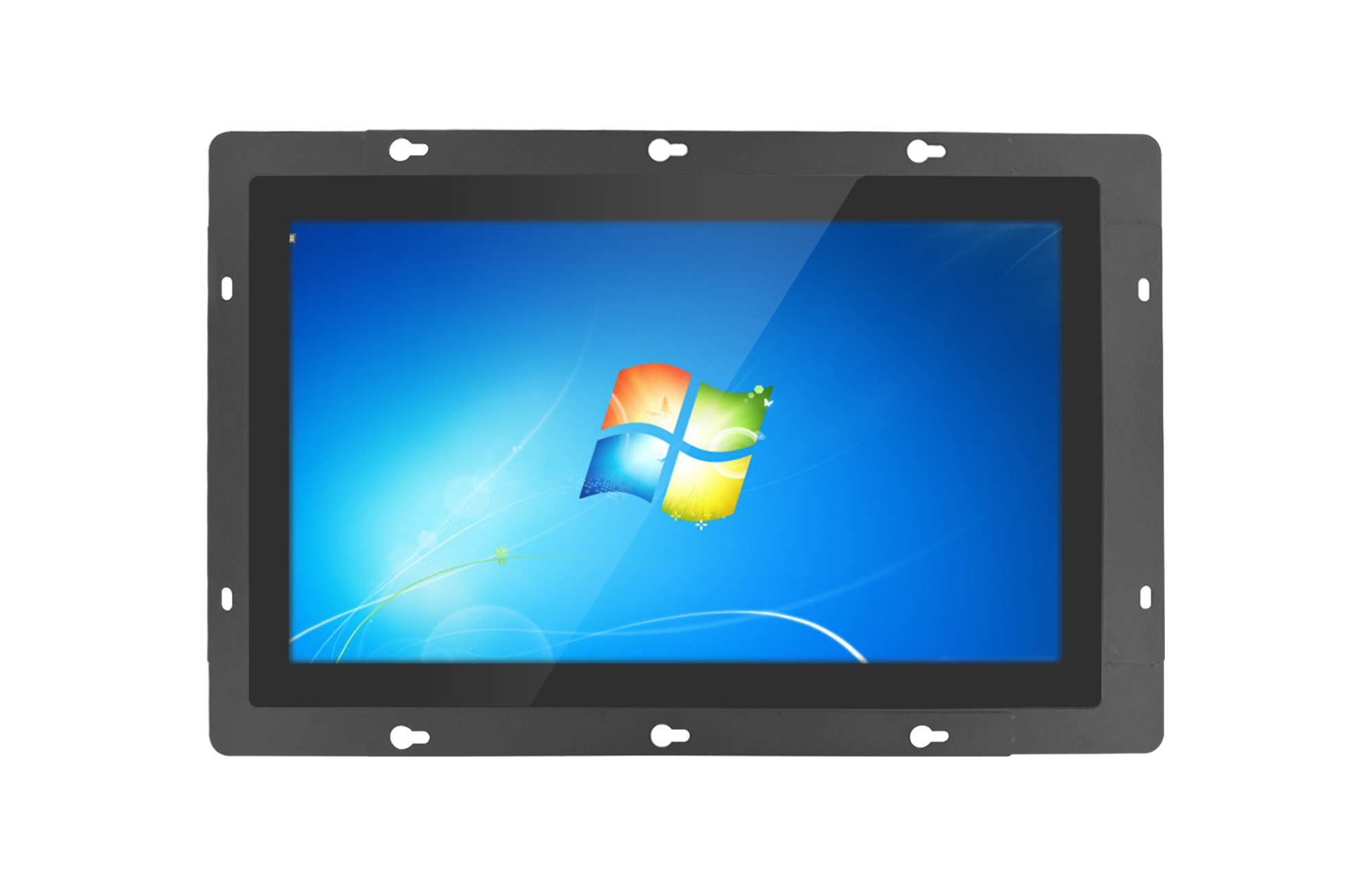

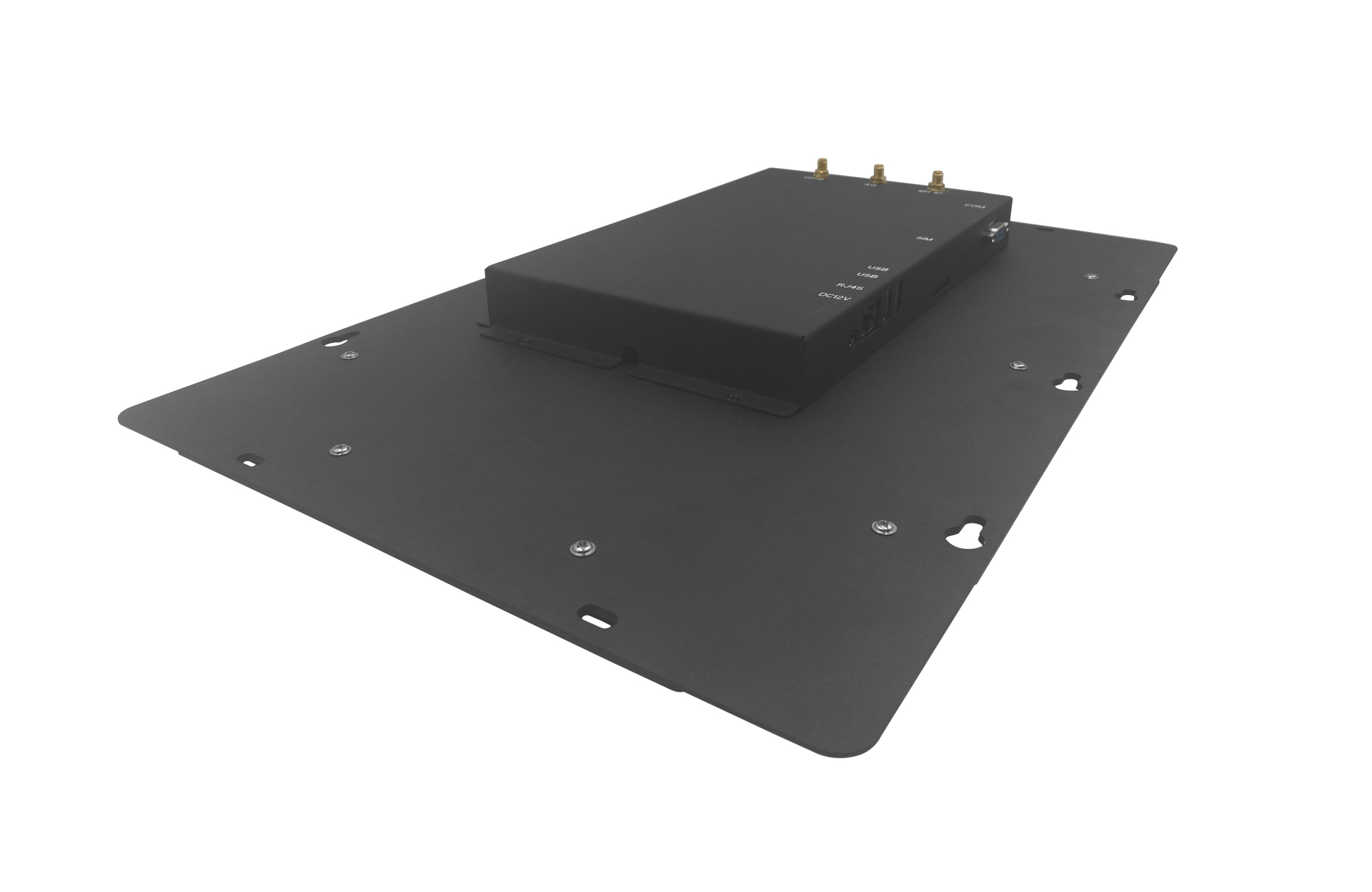

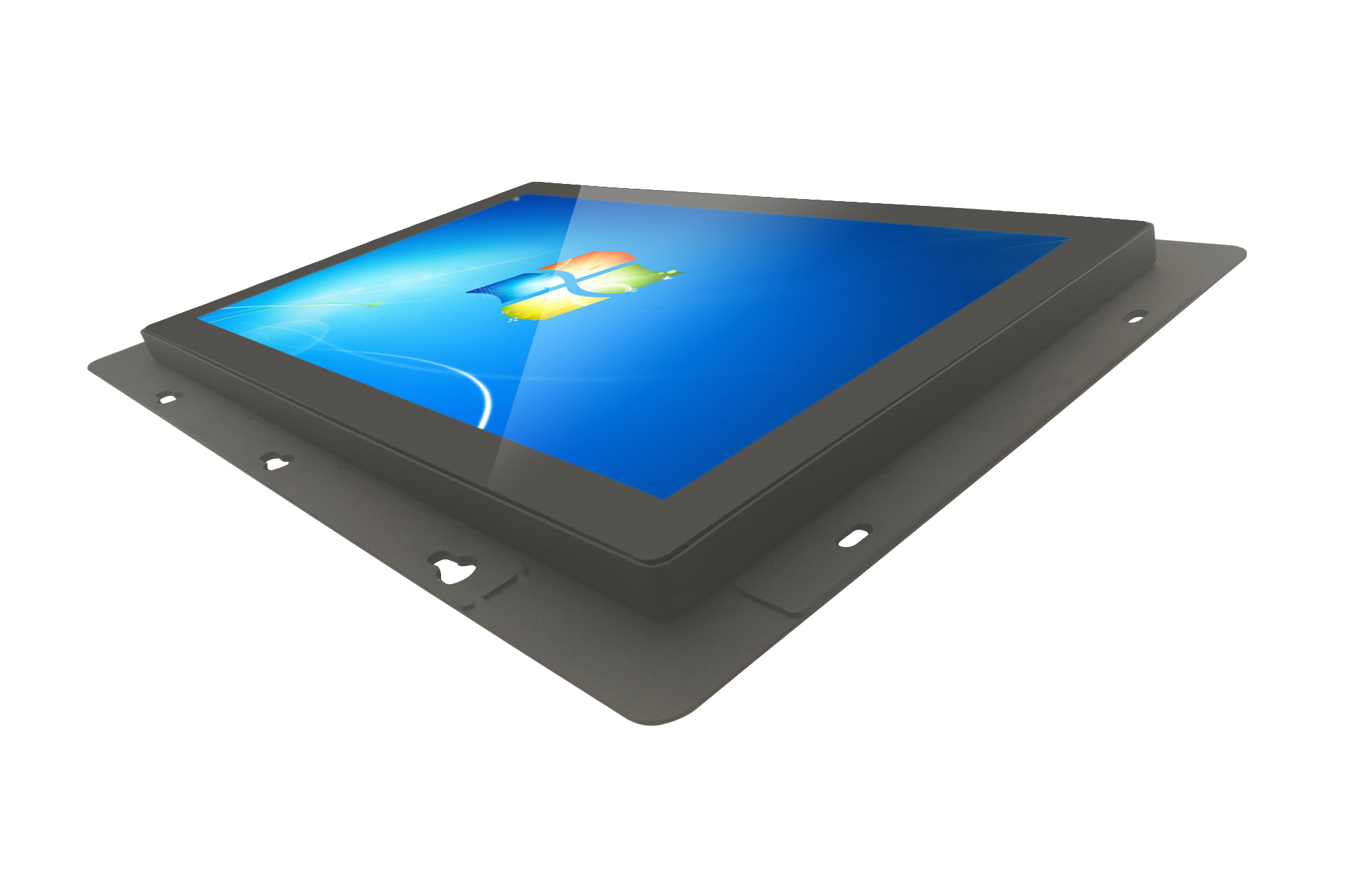

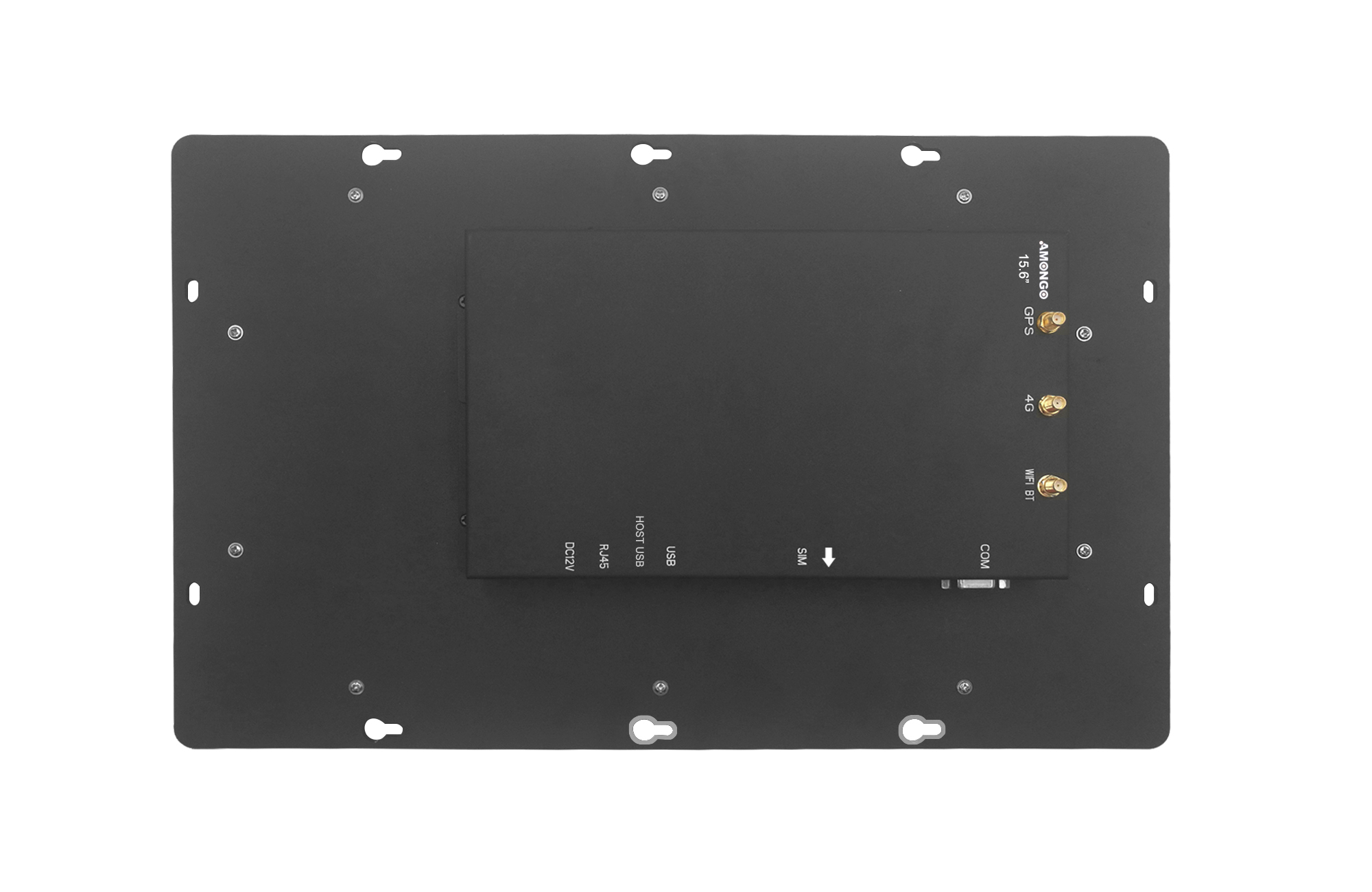

15.6 Inch Android All-in-one Panel PC

  • 15.6 Inch Android All-in-one Panel PC
  • The 15.6 inch android based all-in-one panel pc AMG-15PPC02T1 from Amongo is a good option for kiosk application with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles to get a good visual effect;
    • High-quality industrial-grade components used to ensure long time reliability and stability.
    • 15.6 inch 10-points PCAP touchscreen panel;
    • Light sensor added for auto-diming to save energy.
    • 4G, Ethernet, WiFi, GPS, Bluetooth functions optional;;
    • Up-to-date Android main board supporting customization application;
    • Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.;
    Contact Us

Specifications

Model Name

AMG-15PPC02T1

CPU

RK3368 Eight Core ARM-A53 1.5GHz

RAM

2GB(4GB optional)

ROM

8GB(16/32GB optional)

OS

Android 5.1.1

VGA Port

1 x VGA

USB Ports

2 x USB

Ethernet

4G/3G, Ethernet, WiFi, GPS, Bluetooth optional

Audio

Mic-in, Line-out

Screen Size

15.6"

Active Area(mm)

344.16(H)x193.59(V)

Pixel Pitch(mm)

0.17925(H)x0.17925(V)

Display Resolution

1920x1080

Display Color

Normally Black

Brightness(cd/㎡)

500nits (Light Sensor)

Contrast Ratio

1000:1

Backlight

LED

Viewing Angles

170(H);170(V)

Response Time(Tr+Tf)

25ms

Touch Screen

PCAP Touch(10 points)

Light Sensor

Support

HD Camera

Optional

Dimension(VxHxT)mm

443.2x387x45.5

Operating Temperature

-20~70℃(Non-conctensation)

Storage Temperature

-20~70℃(Non-conctensation)

Relative Humidity

5~90(%RH)
