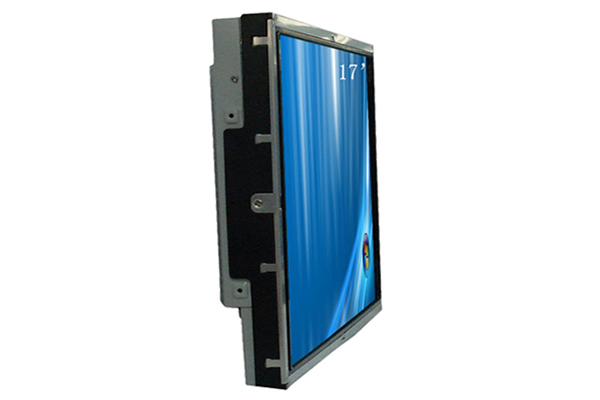

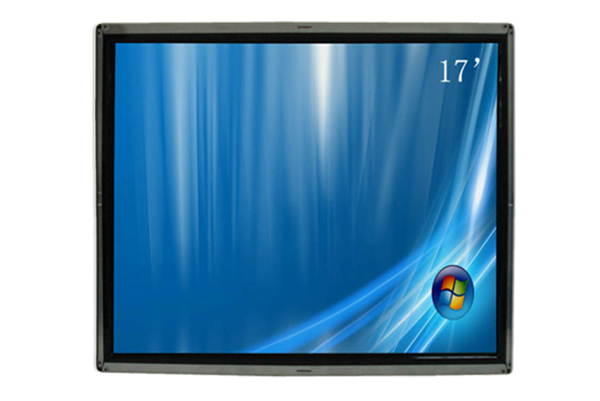

17 Inch Open Frame LCD Monitor

  • 17 Inch Open Frame LCD Monitor
  • The open frame LCD monitor AMG-17OPHA01T1 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles
    • Built with industrial-grade components for a reliable 24/7/365 operation
    • LED backlight for low power consumption to save more energy
    • Various touchscreen options like PCAP, Resistive, IR, SAW etc
    • High-end mechanical design to meet tough environmental conditions and requirements

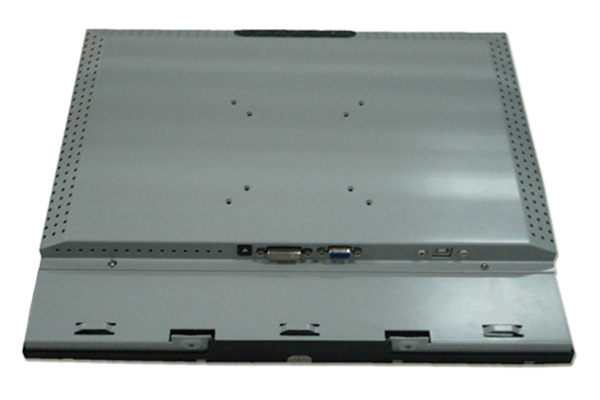

    • Rear mounted or VESA mounted design for easy installation for kiosks application
    • Customization service available
    Contact Us

Specifications

Model Name

AMG-17OPHA01T1

Screen Size

17”

Active Display Area (mm)

337.92 (H) x 270.33 (V)

Pixel Pitch (mm)

0.264 (H) x 0.264 (V)

Display Mode

Normally white

Display Resolution (pixel)

1280x1024

Contrast Ratio

1000:1

Display Color

16.7M

Brightness (CD/㎡)

250

Backlight

LED

Viewing Angles (CR =10)

170 (H); 160 (V)

Response Time(Typ.Tr+Tf)

8ms

Signal Connector

VGA/DVI

Power Consumption

DC 12V

Dimension(VxHxT)

368.13x306.13x54.26

Operating Temperature

0~50℃

Storage Temperature

-10~70℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen

Resistive
