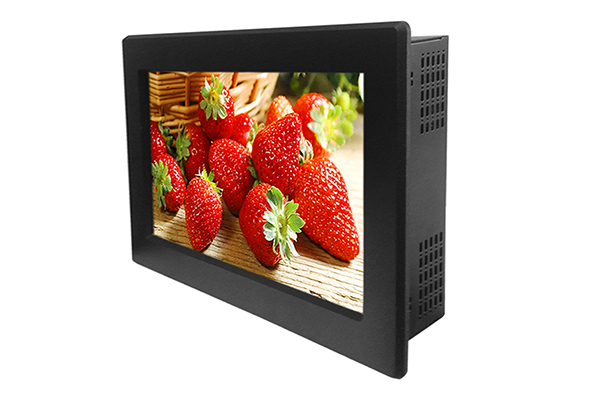

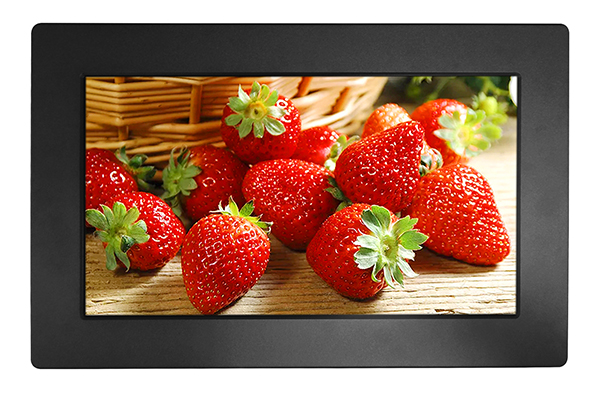

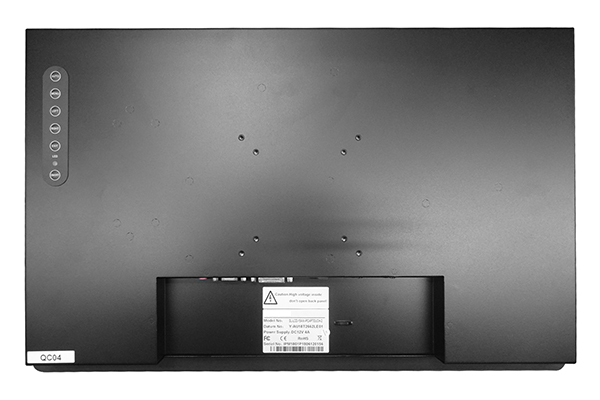

18.5 Inch Panel Mount LCD Monitor

  • 18.5 Inch Panel Mount LCD Monitor
  • The industrial grade panel mount LCD monitor AMG-18IPPC01T2 offered by Amongo is ideal for both industrial and commercial industries environments with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • High-end mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications


Model Name

AMG-18IPPC01T2

Screen Size

18.5"

Active Display Area (mm)

409.8(H)x230.4(V)

Pixel Pitch (mm)

0.3(H)x0.3(V)

Display Mode

Normally white

Display Resolution (pixel)

16.7M

Contrast Ratio

1366x768

Display Color

1000:1

Brightness (CD/㎡)

250nits

Backlight

LED

Viewing Angles (CR =10)

170(H);160(V)

Response Time(Typ.Tr+Tf)

5ms

Signal Connector

VGA/DVI-D/HDMI/Audio/USB

Power Consumption

DC 12V

Dimension(VxHxT)

512x332x56.8

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen

PCAP Touch(10 points)
