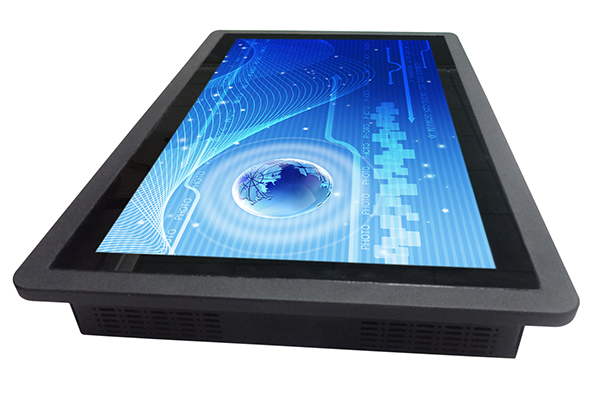

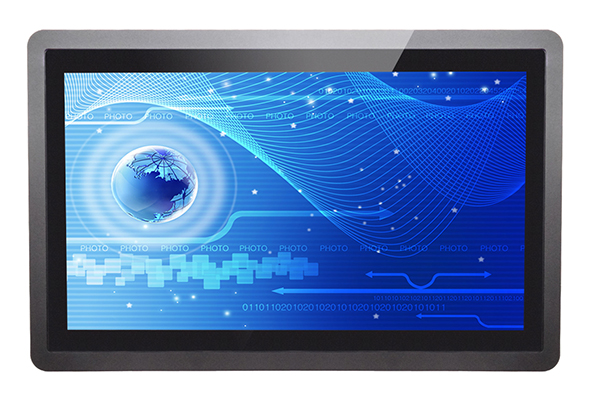

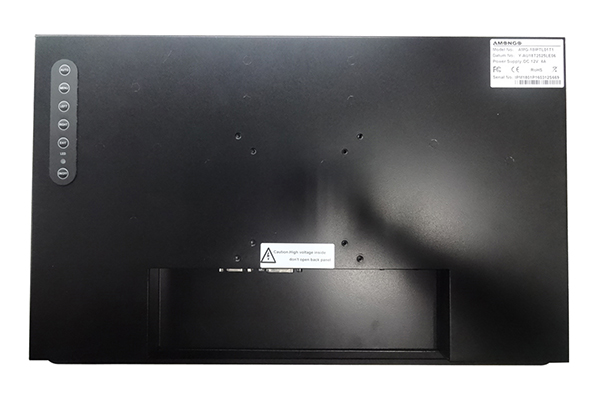

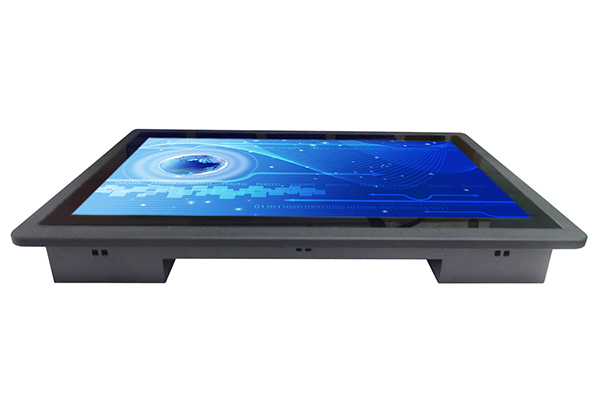

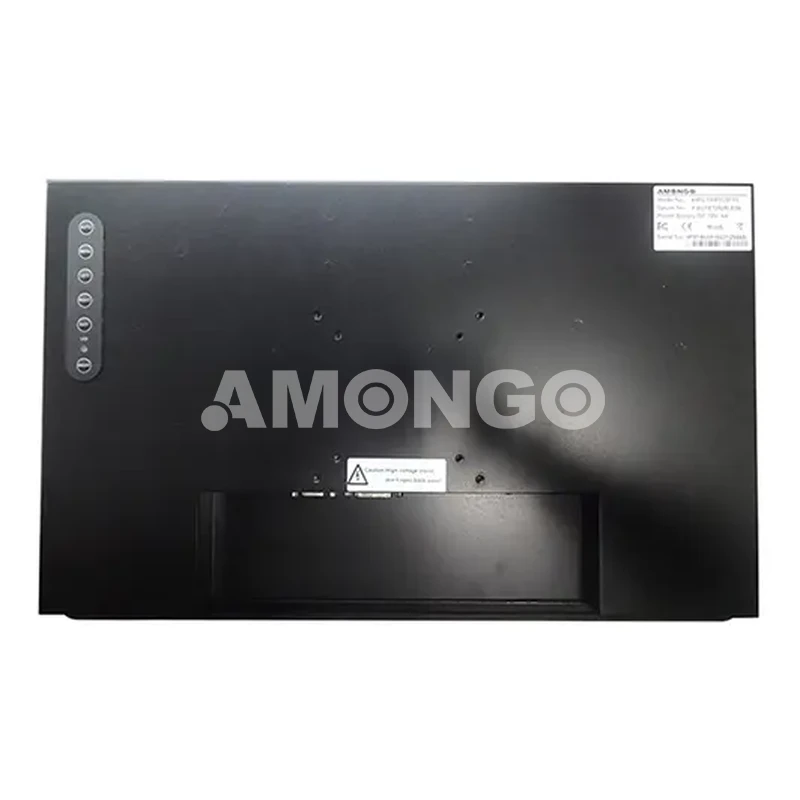

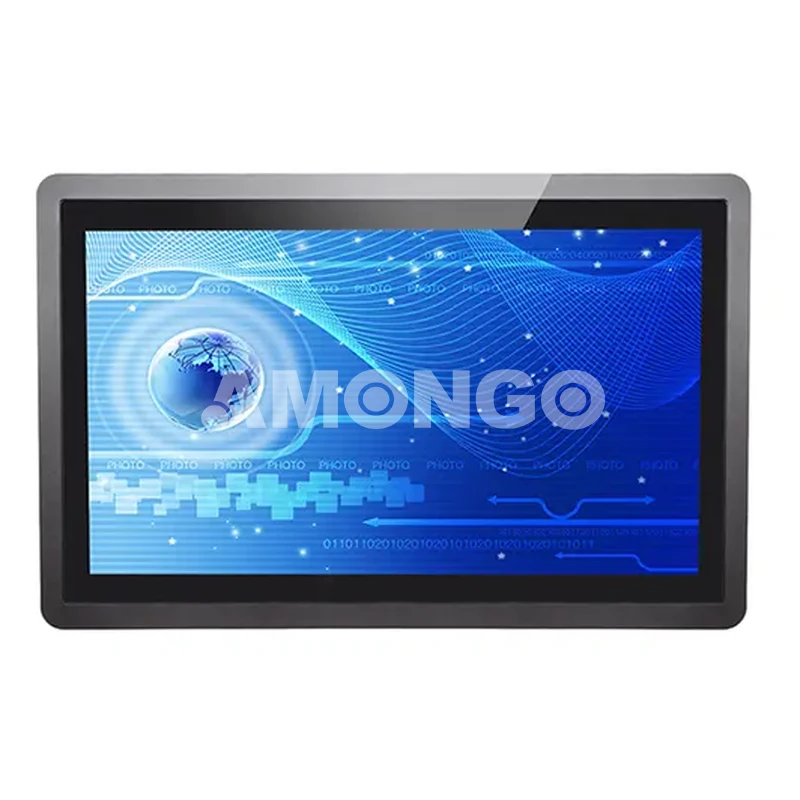

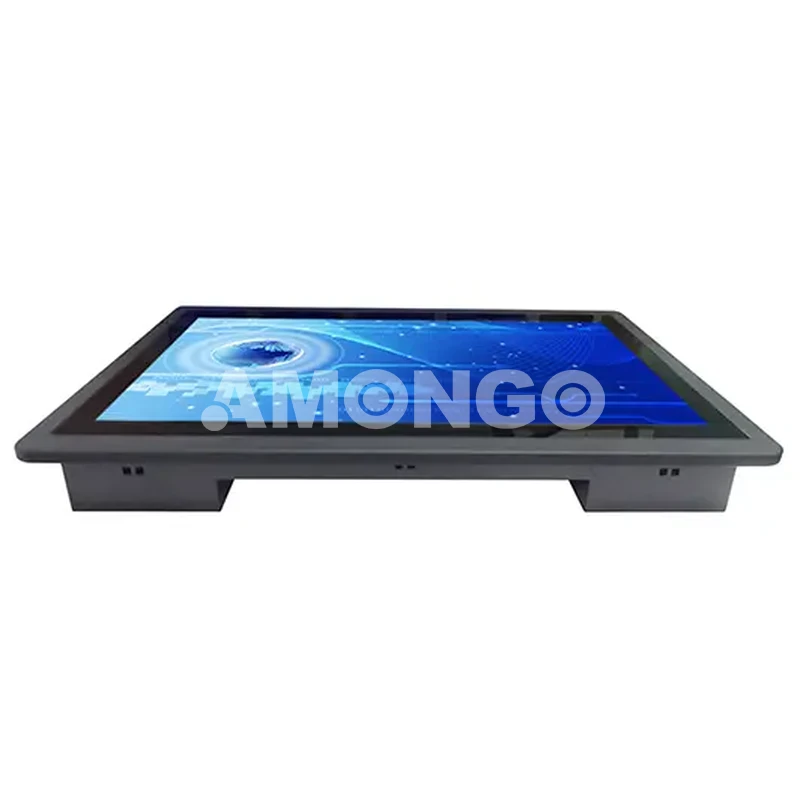

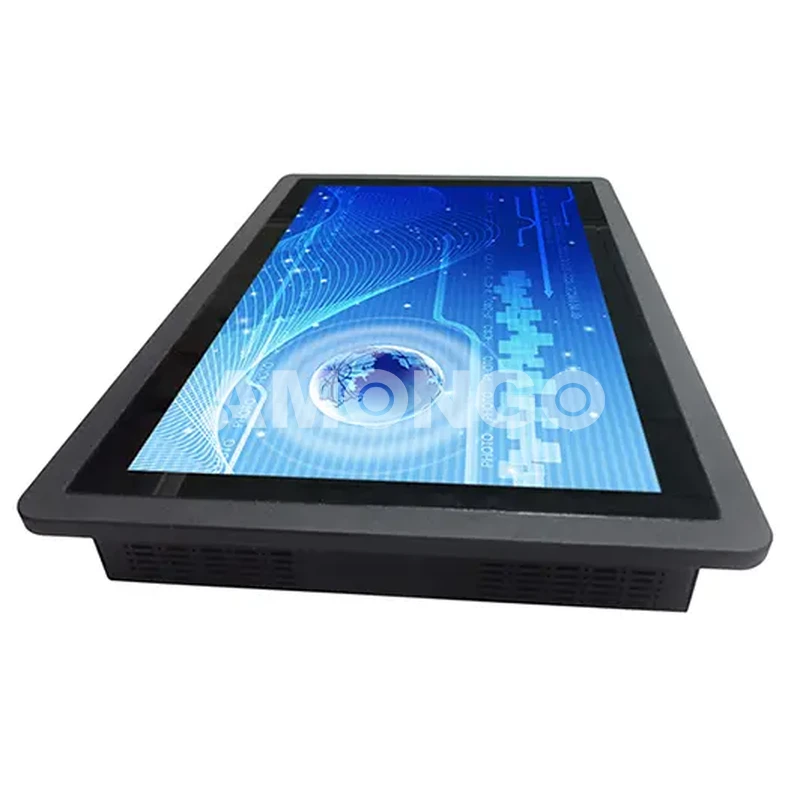

18.5 Inch Sunlight Readable LCD Monitor

  • 18.5 Inch Sunlight Readable LCD Monitor
  • The high brightness LCD monitor AMG-18IPTL01T1 offered by Amongo is built with the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles;
    • Built with industrial-grade components for a reliable 24/7 continuously operation;
    • 10-points PCAP touchscreen; LED backlight, brightness up to 800 nits;
    • Full flat surface design for IP65 waterproof, dust proof environments;
    • Customization solution available;
    Contact Us

Specifications

Model Name

AMG-18IPTL01T1

Screen Size

18.5"

Active Display Area (mm)

409.8(H)x230.4(V)

Pixel Pitch (mm)

0.3(H)x0.3(V)

Display Mode

Normally White

Display Resolution (pixel)

1366x768

Contrast Ratio

1000:1

Touch screen(optional)

PCAP Touch(10 Points)

Brightness (CD/m )

800

Backlight

LED

Viewing Angles (CR =10)

170Hx160V

Response Time(Typ.Tr+Tf)

5ms

Signal Connector

VGA/DVI/USB

Power Consumption

DC 24V

Dimension(VxHxT)

480x308x57.8

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)
