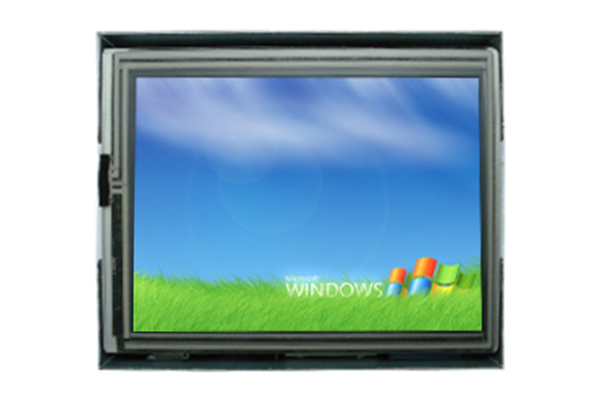

6.5 Inch Open Frame Lcd Monitor

  • 6.5 Inch Open Frame Lcd Monitor
  • The open frame LCD monitor AMG-06OPHA01T1 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles
    • Built with industrial-grade components for a reliable 24/7/365 operation
    • LED backlight for low power consumption to save more energy
    • Various touchscreen options like PCAP, Resistive, IR, SAW etc
    • High-end mechanical design to meet tough environmental conditions and requirements,
    • Customization service is available
    Contact Us

Specifications


Model Name

AMG-06OPHA01T1

Screen Size

6.5"

Active Display Area (mm)

132.48 (H) x 99.36 (V)

Pixel Pitch (mm)

0.207(H) x 0.207 (V)

Display Mode

Normally white

Display Resolution (pixel)

640x480

Contrast Ratio

600:1

Display Color

16.2M/262K colors

Brightness (CD/㎡)

500

Backlight

LED

Viewing Angles (CR =10)

140 (H); 120 (V)

Response Time(Typ.Tr+Tf)

25ms

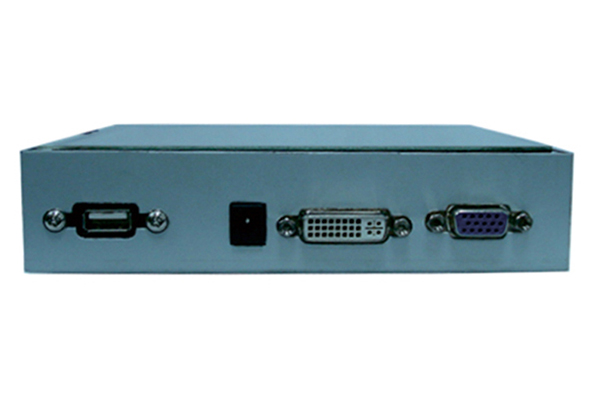

Signal Connector

VGA/DVI

Power Consumption

DC 12V

Dimension(VxHxT)

156x130x37.4

Operating Temperature

-20~70℃

Storage Temperature

-20~80℃

Relative Humidity

5(%RH)~90(%RH)
