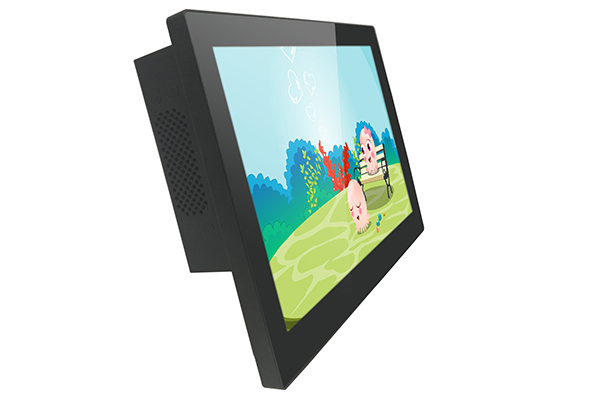

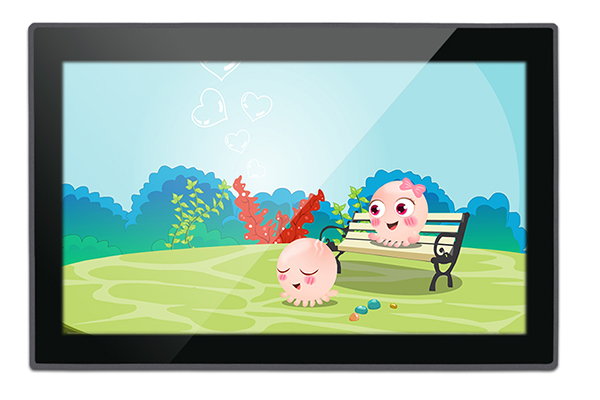

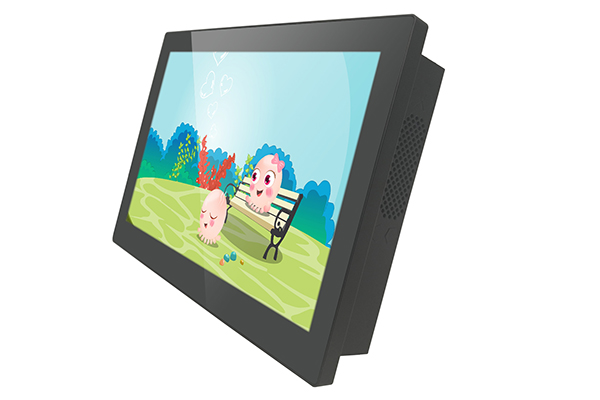

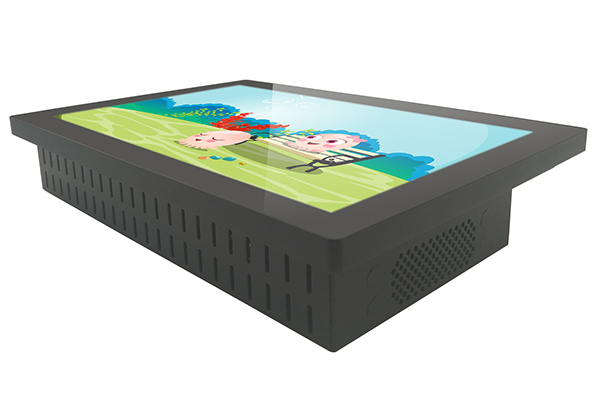

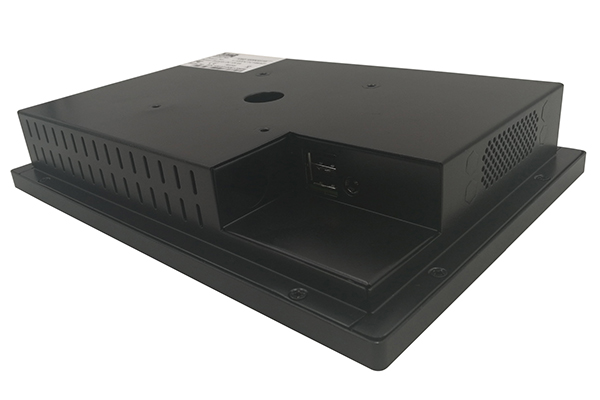

10.1 Inch Zero Bezel PCAP Touch Industrial Panel PC

  • 10.1 Inch Zero Bezel PCAP Touch Industrial Panel PC
  • The 10.1 inch zero bezel panel computer AMG-10PPC01T3 from Amongo is equipped with the latest generation touchscreen technology with following features:
    • High resolution TFT LCD panel from famous brand, with good image effect and wide view angles;
    • Fan-less cooling system and low power consumption with Intel processor;
    • Multiple touch P-CAP touchscreen, tempered glass can be added;
    • Edge-to-edge design true flat surface with IP65, easy for maintenance;
    • Robust casing and structure design to withstand the most demanding environment, anti-vibration, anti-shock;
    • Diversified installation methods: vesa mount, panel mount etc.
    • Supporting various operation system of Windows, Android, Linux;
    • Meet with test for reliability and sustainability;
    • Passed necessary certificates like CE, RoHS, and ISO system etc.;
    Contact Us

Specifications

Model Name

AMG-10PPC01T3

CPU

Intel ® Celeron ® CPU N2930 @ 1.83GHz

RAM

4GB (Max 8GB optional)

SSD

32GB

power supply

1x power supply port

USB ports

1x USB(2xUSB2.0,3xUSB 3.0 optional)

WiFi

Support

Screen Size

10.1"

Active Area(mm)

216.96(H)x135.6(V)

Pixel Pitch(mm)

0.1695(H)x0.1695(V)

Display Resolution

1280x800

Brightness(cd/㎡)

350nits

Contrast Ratio

800:1

Viewing Angles

170(H);170(V)

Response Time(Tr+Tf)

25ms

Signal Connector

VGA/USB

Power Consumption

DC 12V

Touch Controller

USB

Touch Screen

PCAP Touch(10 points)

Dimension(VxHxT)mm

251.4x174.4x44

Operating Temperature

-20~70℃(non-condensation)

Storage Temperature

-30~80℃(non-condensation)

Relative Humidity

5~90(%RH)
