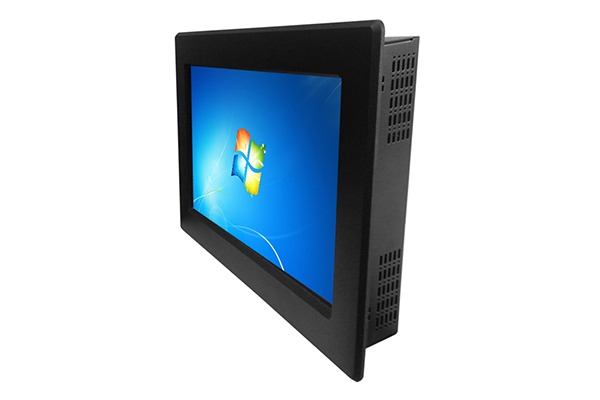

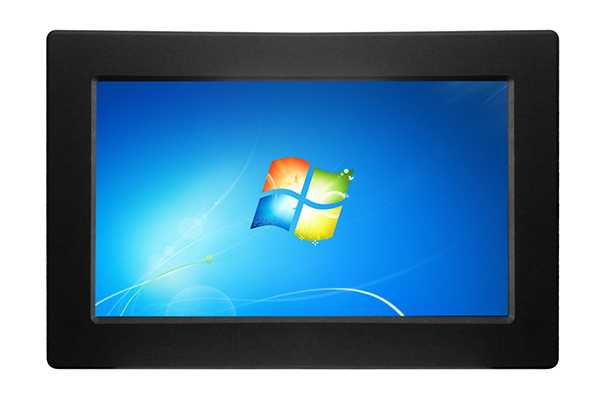

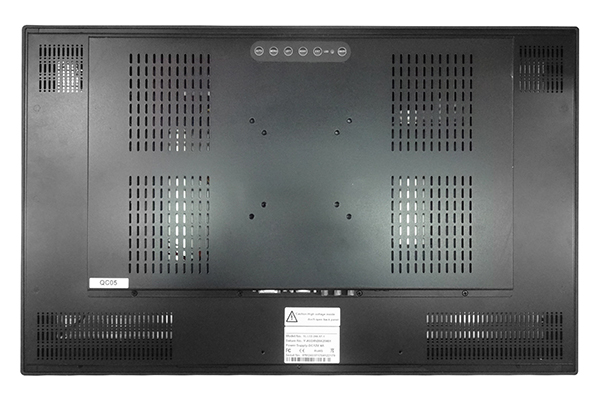

24 Inch Panel Mount LCD Monitor

  • 24 Inch Panel Mount LCD Monitor
  • The industrial grade panel mount LCD monitor AMG-24IPPC01N1 offered by Amongo is ideal for both industrial and commercial industries environments with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • igh-end mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-24IPPC01N1

Screen Size

24"

Active Display Area (mm)

531.36(H)x298.89(V)

Pixel Pitch (mm)

0.27675(H)x0.27675(V)

Display Mode

Normally white

Display Resolution (pixel)

1920X1080

Contrast Ratio

1000:1

Display Color

16.7M Colors

Brightness (CD/㎡)

300

Backlight

LED

Viewing Angles (CR =10)

170Hx160V

Response Time(Typ.Tr+Tf)

5ms

Signal Connector

VGA/DVI/HDMI/AV/S-Video/Audio

Power Consumption

DC 12V

Dimension(VxHxT)

636X403.5X62.9

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen

Optional
