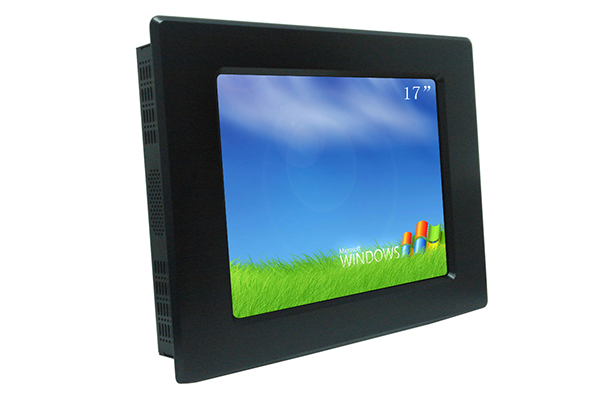

17 Inch Panel Mount LCD Monitor

  • 17 Inch Panel Mount LCD Monitor
  • The industrial grade panel mount LCD monitor AMG-17IPPC01T1 offered by Amongo is ideal for both industrial and commercial industries environments with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • High-end mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications


Model Name

AMG-17IPPC01T1

Screen Size

17"

Active Display Area (mm)

337.920(H)x270.336(V)

Pixel Pitch (mm)

0.264(H)x0.264(V)

Display Mode

Normally White

Display Resolution (pixel)

1280X1024

Contrast Ratio

1000:1

Display Color

16.7M color

Brightness (CD/㎡)

250

Backlight

LED

Viewing Angles (CR =10)

170Hx160V

Response Time(Typ.Tr+Tf)

5ms

Signal Connector

VGA/DVI

Power Consumption

DC2.0

Dimension(VxHxT)

440.6X354.6X56.7

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen(optional)

Resistive / IR / Capacitive
