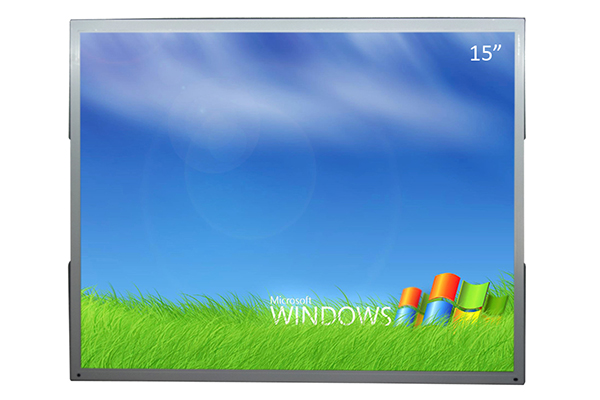

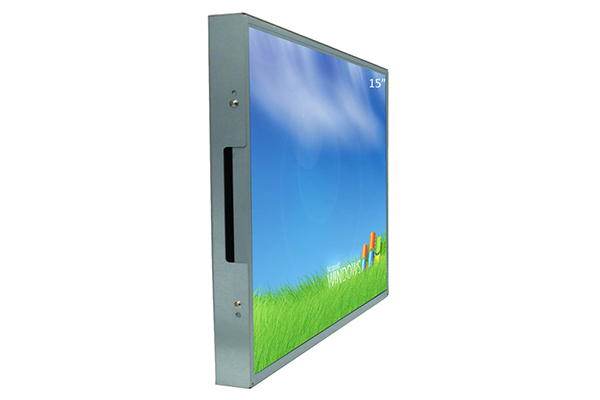

15 Inch Open Frame LCD Monitor

  • 15 Inch Open Frame LCD Monitor
  • The open frame LCD monitor AMG-15OPHA07N1 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles
    • Built with industrial-grade components for a reliable 24/7/365 operation
    • LED backlight for low power consumption to save more energy
    • Various touchscreen options like PCAP, Resistive, IR, SAW etc
    • High-end mechanical design to meet tough environmental conditions and requirements,
    • Customization solution available
    Contact Us

Specifications


Model Name

AMG-15OPHA07N1

Screen Size

15"

Active Display Area (mm)

304.128 (H) x 228.096 (V)

Pixel Pitch (mm)

0.297 (H) x 0.297(V)

Display Mode

Normally white

Display Resolution (pixel)

1024x768

Contrast Ratio

400:1

Display Color

262K colors

Brightness (CD/㎡)

250

Backlight

LED

Viewing Angles (CR =10)

120 (H); 100 (V)

Response Time(Typ.Tr+Tf)

16ms

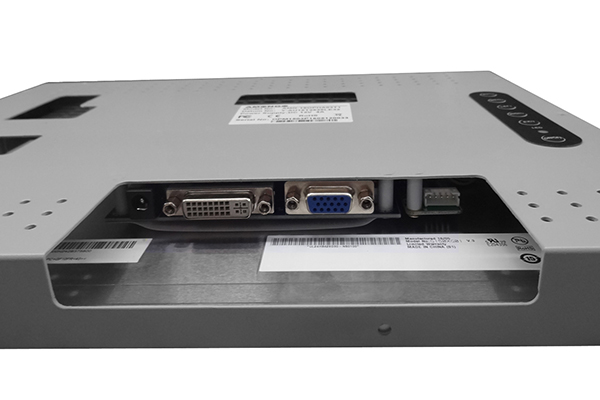

Signal Connector

VGA/DVI

Power Consumption

DC 12V_4A

Dimension(VxHxT)

329x256x29

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen(optional)

Resistive / IR / SAW / Capacitive
