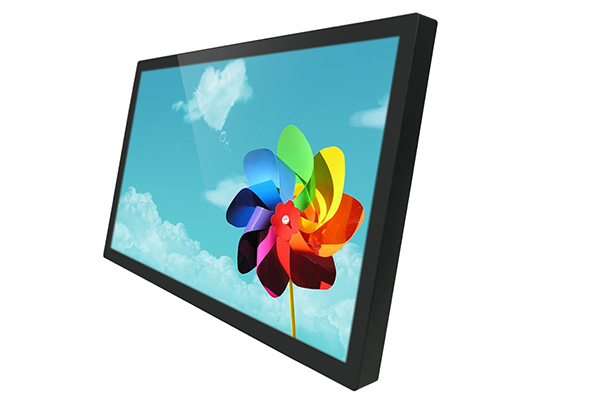

Original lcd panels with perfect image quality and long life span, industrial-grade components supporting long time running;
Tempered glass for vandal proof, could change to pcap touchscreen;
Robust mechanical design to ensure stable quality and function in harsh working conditions;
Flat surface design for front IP 65, easy installation and maintenance;
Customization service available;
Model Name | AMG-24OPTP01G1 |
Screen Size | 23.8" |
Active Display Area(mm) | 527.04(H)x296.46(V) |
Pixel Pitch(mm) | 0.2745(H)x0.2745(V) |
Display Mode | Normally black |
Display Resolution(pixel) | 1920x1080 |
Contrast Ratio | 1000:1 |
Brightness | 250nits |
Backlight | LED |
Viewing Angles(CR=10) | 178(H);178(V) |
Response Time(Typ.Tr+Tf) | 14ms |
Touch Screen | Optional |
Light Sensor | Optional |
Tempered Glass | Support |
Dimension(VxHxT) | 575.6x343.1x43 |
Signal Connector | VGA/HDMI/DP/Audio/USB |
Power Input | DC 12V |
Touch Controller | USB |
Operating Systems Support | Windows 7/8/10 / Linux(optional) |
Operating Temperature | 0~50℃(non-condensation) |
Storage Temperature | -20~60℃(non-condensation) |
Relative Humidity | 5(%RH)~90(%RH) |
