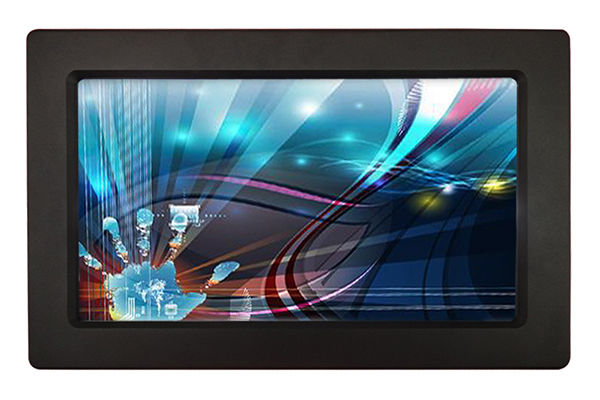

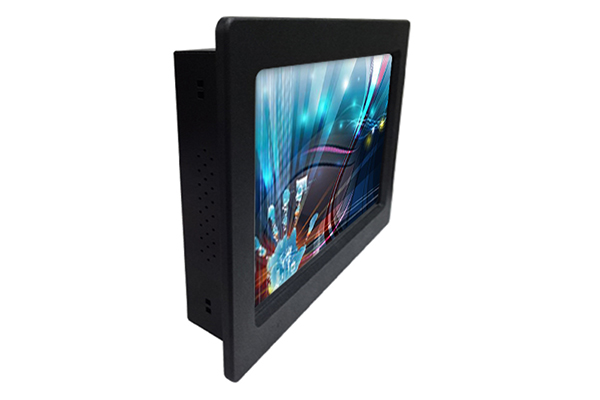

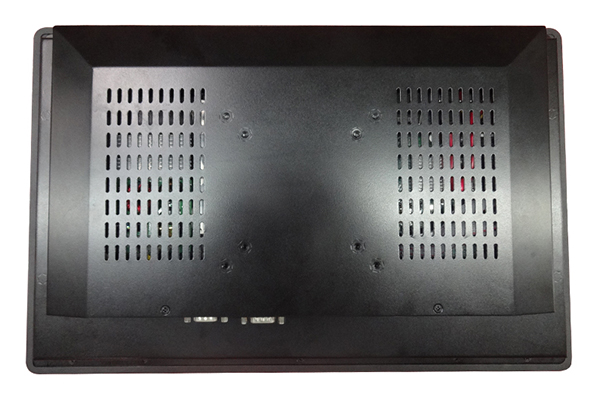

15.6 Inch Panel Mount Industrial Panel PC

  • 15.6 Inch Panel Mount Industrial Panel PC
  • The 15 inch industrial panel computer AMG-15PPC04T1 from Amongo is designed with below benefits:
    • Industrial-grade LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
    • High performance processor, fast access hard drives, long-life power supplies for stable function in long time workload;
    • Touchscreen be optional like PCAP, Resistive, IR etc.;
    • Robust housing for IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Easy installation for panel mount or embedded mount;
    • Passed necessary tests for being used in harsh environment;
    Contact Us
Specifications

Model Name

AMG-15PPC04T1

CPU

Intel® Cedar Trail-M Processor 2800(1.86GHz)

Memory

RAM 2GB.DDR3 SO-DIMM

HDD

500G 5400RPM.  2.5 SATA

CD/DVD-ROM/RW

NA

PS/2 port

NA

VGA port

NA

COM ports

Default x 4COM

USB 2.0 ports

Default x 3USB 2.0

Ethernet ports

1x10/100/1000BASE-T Gigabit Ethernet

Audio

Line-out,Mic-in

Display Size(Diagonal)

15.6"

Active Display Area(mm)

344.232(H)x193.536(V)

Max Resolution

1366x768

Support Color

16.7M

Luminance(CD/M )

300

Contrast Ratio

500:1

Pixel Pitch(mm)

0.252(H)x0.252(V)

Viewing Angle

170(H);160(V)

Response Time(Typ.Tr+Tf)

8ms

Backlight

LED

Type

Resistive Touchscreen

Use connector

4pin USB2.0

Output Rating

35W(max)

Input Voltage

 +12V @5A;

Dimension(VxHxT)

422.4x271.7x60

Operating Temperature

0~60℃

Storage Temperature

-20~80℃

Relative Humidity

5[%RH]~90[%RH]
