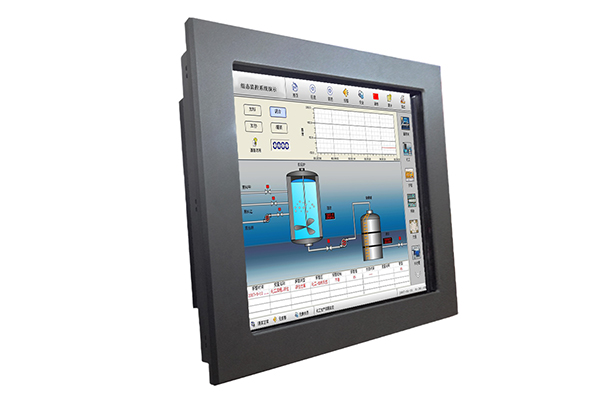

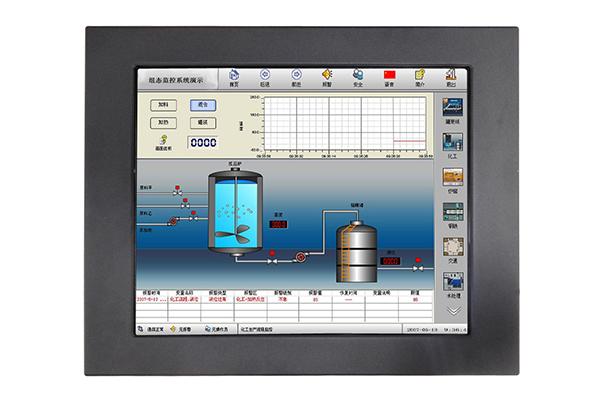

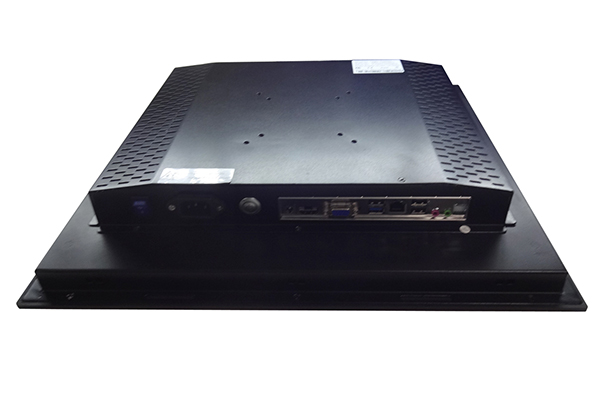

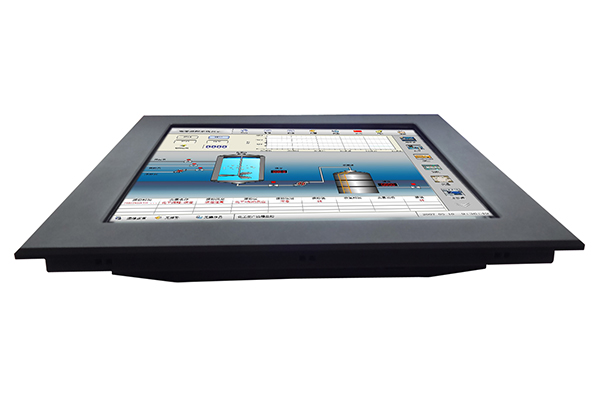

17 Inch Panel Mount Industrial Panel PC

  • 17 Inch Panel Mount Industrial Panel PC
  • The 17 inch industrial panel computer AMG-17PPC02T1 from Amongo is designed with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
    • Latest industrial-grade components like high performance processor, hard drives, power supplies for stable function for 24/7 long time working;
    • Flexible touchscreen options like PCAP, Resistive, IR etc.;
    • Rugged metal enclosure design with front IP65 dust proof etc.;
    • Standard mounting like panel mount or embedded mount;
    • Rigorous quality control to ensure fully function after delivery;
    Contact Us
Specifications

Model Name

AMG-17PPC02T1

CPU

Intel ® Bay Trail J1900 Quad Core 2.0GHz

RAM

DDR3L 1333/1600MHz 2GB(Max 8GB)

SSD

16GB/32GB(optional)

HDMI port

1 x HDMI port

VGA port

1 x VGA port

USB ports

3xUSB 2.0 ; 1 x USB 3.0

LAN

1x10/100/1000Base-T Gigabit Ethernet

Audio

Line-out,Mic-in

Display Size(Diagonal)

17"

Active Display Area(mm)

337.920(H)x270.336(V)

Max Resolution

1280x1024

Luminance(cd/m )

1500

Contrast Ratio

1000:1

Pixel Pitch(mm)

0.264(H)x0.264(V)

Viewing Angle(CR=10)

170(H);160(V)

Backlight

LED

Dimension(VxHxT)

384.6x316.6x86.5

Type

IR Touchscreen

Output Rating

150W(max)

Input Voltage

100~240V~1.5A 50~60Hz

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5[%RH]~90[%RH]
