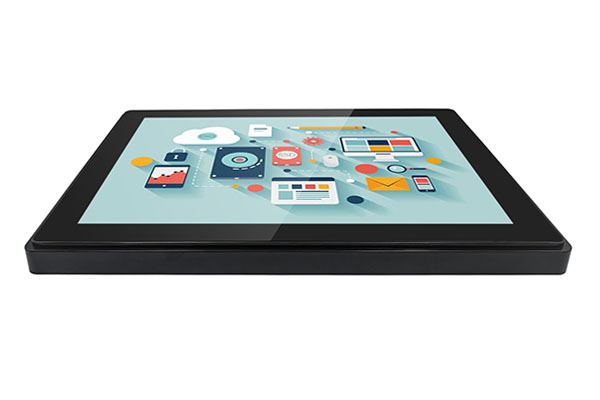

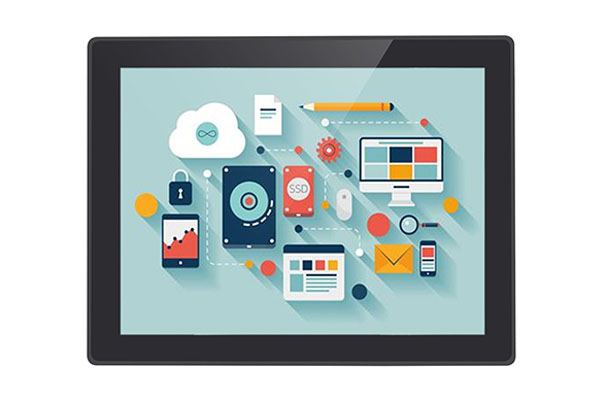

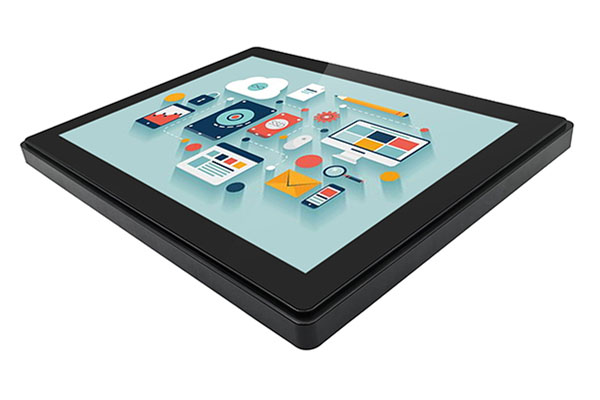

12.1 Inch LCD Touchscreen Monitor

  • 12.1 Inch LCD Touchscreen Monitor

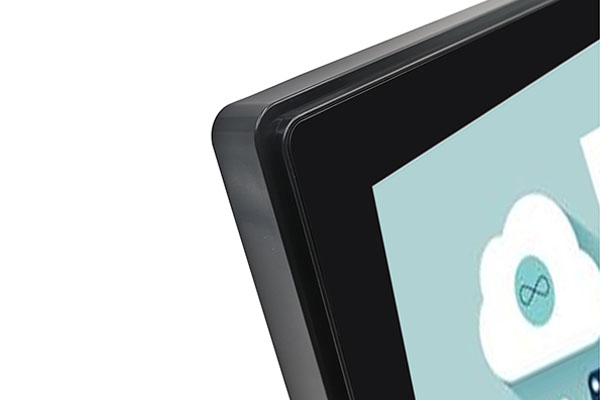

  • The flange bezel designed capacitive touch monitor AMG-12OPZY01T9 for industrial applications made by Amongo is attractive with below features:

    • Top LCD panels with a perfect image quality, industrial-grade electronics components to support 24/7/365 long time running;
    • Rugged and friendly mechanical design to withstand harsh environments and working conditions;
    • IP65 waterproof side frame integrated with capacitive touchscreen for easy installation an d maintenance, dust proof, vandal proof;

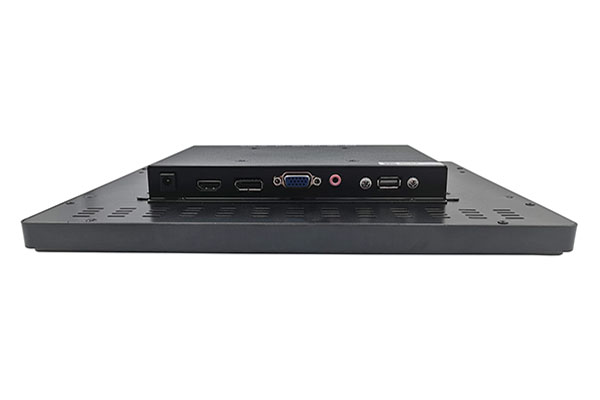

    • Support HDMI and DP(Display Port) input for high definition(HD);

    Contact Us

Specification of 12.1 Inch LCD Touchscreen Monitor


Model Name

AMG-12OPZY01T9

Screen Size

12.1”

Active Display Area(mm)

246.0(H)x184.5(V)

Pixel Pitch(mm)

0.3075(H)x0.3075(V)

Display Resolution (pixel)

800x600

Contrast Ratio

700:1

Display Mode

Normally white

Touch screen(optional)

PCAP Touch(10 points)

Brightness (cd/㎡)

350nits

Backlight

LED

Viewing Angles (CR=10)

160(H)x140(V)

Response Time(Typ.Tr+Tf)

35ms

Dimension(VxHxT)

297.7x236.2x40

Signal Connector

VGA/HDMI/DP/Audio

Touch Interface

USB

Input Voltage

DC12V

Operating Systems Support

Windows 7/8/10 / Linux(optional)

Operating Temperature

-20~70℃(non-condensation)

Storage Temperature

-30~80℃(non-condensation)

Relative Humidity

5(%RH)~90(%RH)
