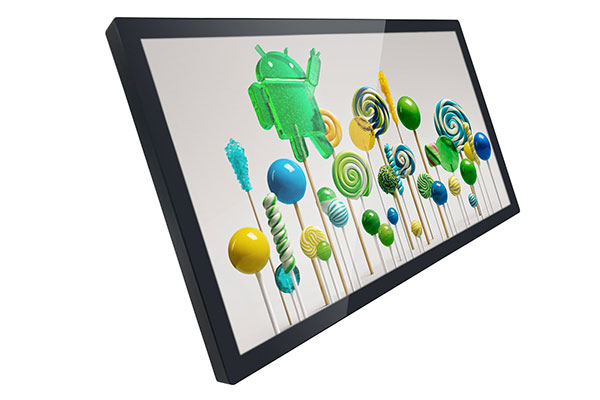

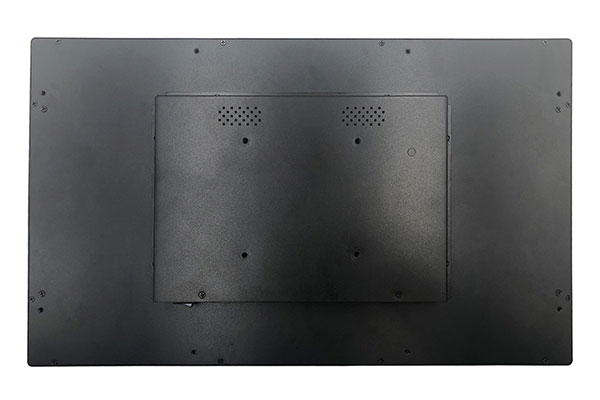

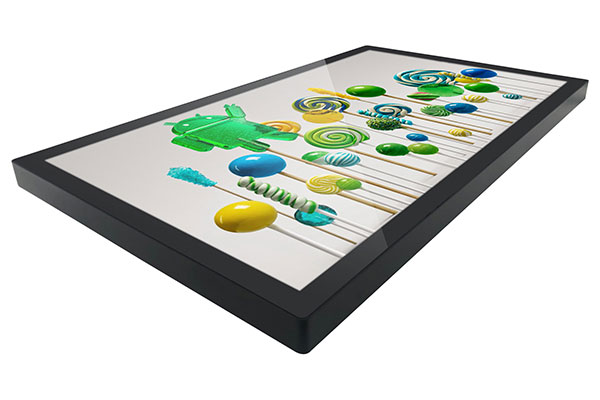

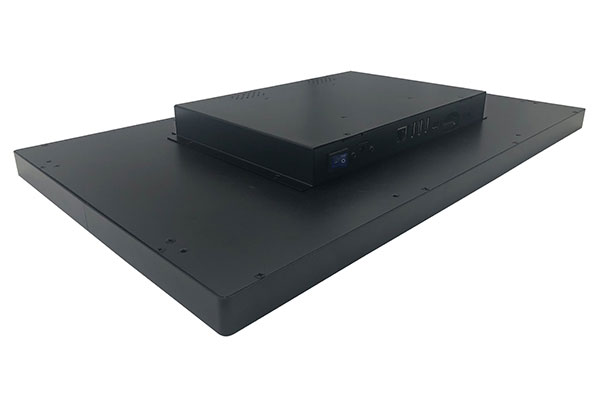

21.5 inch Andrioid OS Industrial Touch Panel PC

  • 21.5 inch Andrioid OS Industrial Touch Panel PC
  • 21.5 inch Zero-Bezel PCAP Touch Industrial Panel PC AMG-21PPC03T3 by Amongo features as below:

    • Exceptional quality and highly engineered industrial/commercial panel computer;

    • High Performance Processor, Graphics, Memory and Power;

    • Edge to edge design with true flat surface, easy to clean without bezels;

    • Easy-to-install VESA mounting with brackets;

    • A+ LED backlight industrial grade LCD;

    • Android operating system;

    • -Surface IP65 waterproof, dust-proof mold frame;

    • Surface hardness MoHs 7, scratch resistant;

    • 7x24h work,stable quality;


    Contact Us

Specifications

System

Model Name

AMG-21PPC03T3

CPU

RK3368 Eight Core ARM-A53 1.5GHz

RAM

2GB (4GB optional)

EMMC

8GB(16/32GB optional)

OS

Android 5.1

HDMI Port

1 x HDMI port

USB Ports

3 x USB ports

RS485 Port

1 x RS485 port

Audio

Mic-in,Line-out

Ethernet

4G,LAN,WiFi,Bluetooth(optional)

SD Card

Support

LCD

Screen Size

21.5"

Active Area(mm)

476.64(H)x268.11(V)

Pixel Pitch(mm)

0.24825(H)x0.24825(V)

Display Resolution

1920x1080

Brightness

250nits

Contrast Ratio

3000:1

Viewing Angles

178(H);178(V)

Response Time(Tr+Tf)

18ms

Display Color

16.7M

Backlight

LED

Optional

Touch Screen

PCAP Touch(10 points)

Tempered Glass

Optional

Light Sensor

Optional

Mechanical

Dimension(VxHxT)mm

PCAP Touch(10 points)

Environmental

Operating Temperature

0~50℃(non-condensation)

Storage Temperature

-20~60℃(non-condensation)

Relative Humidity

5~90(%RH)
