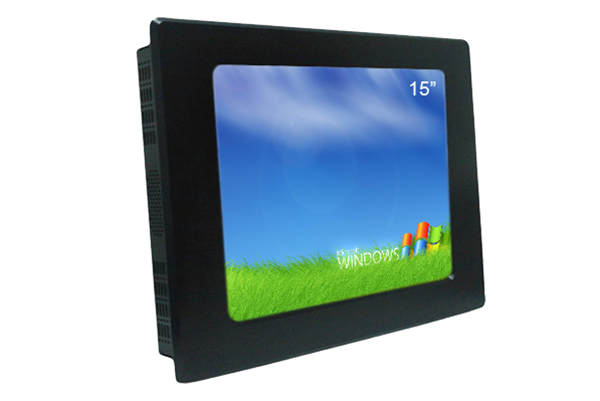

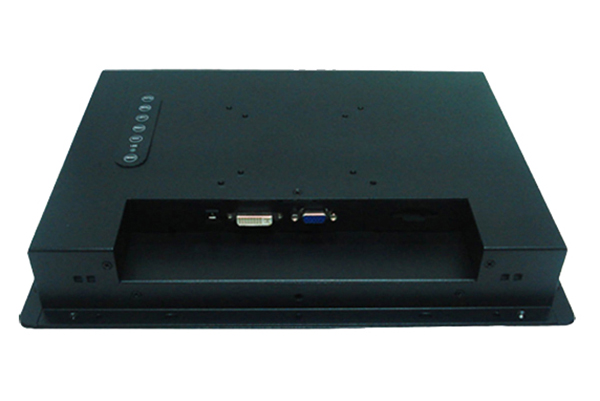

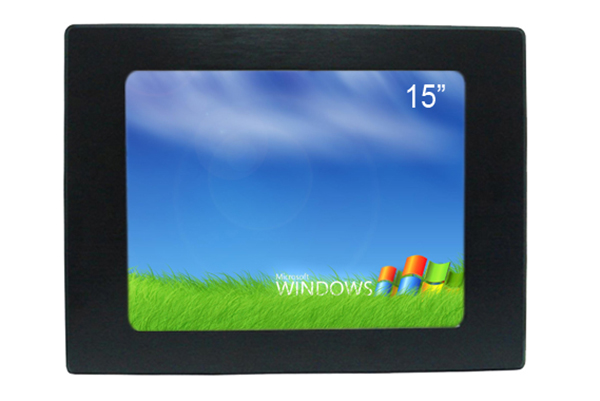

15 Inch Panel Mount LCD Monitor

  • 15 Inch Panel Mount LCD Monitor
  • The industrial grade panel mount LCD monitor AMG-15IPPC07T1 offered by Amongo is ideal for both industrial and commercial industries environments with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • High-end mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-15IPPC07T1

Screen Size

15"

Active Display Area (mm)

304.128 (H) x 228.096 (V)

Pixel Pitch (mm)

0.297 (H) x0.297 (V)

Display Mode

Normally white

Display Resolution (pixel)

1024x768

Contrast Ratio

700:1

Display Color

16.2M/262K colors

Brightness (CD/㎡)

250/350/400/1000

Backlight

LED

Viewing Angles (CR =10)

160 (H); 130(V)

Response Time(Typ.Tr+Tf)

8ms

Signal Connector

VGA/DVI

Power Consumption

DC 12V

Dimension(VxHxT)

390x307x56.8

Operating Temperature

-10~70℃

Storage Temperature

-20~80℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen

Resistive
