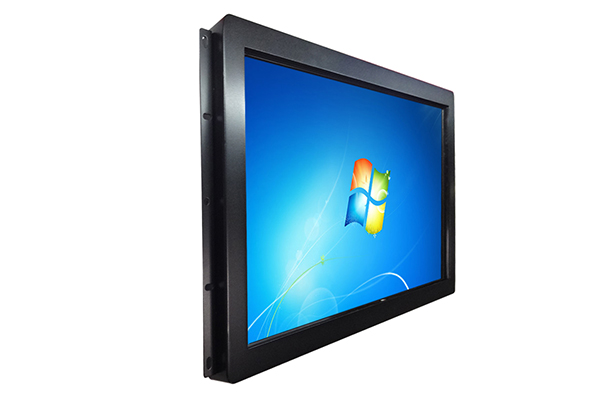

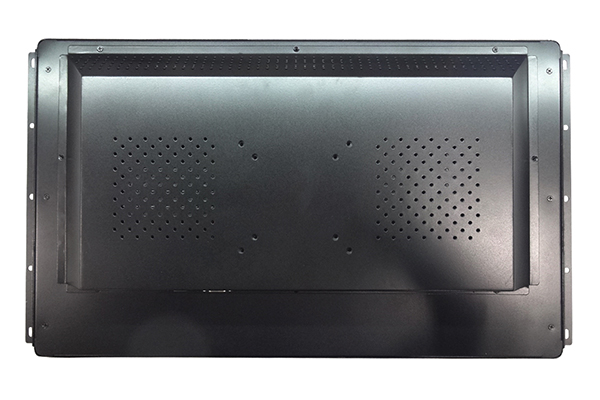

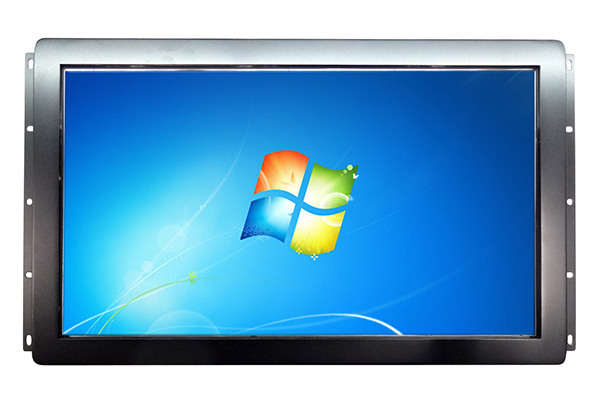

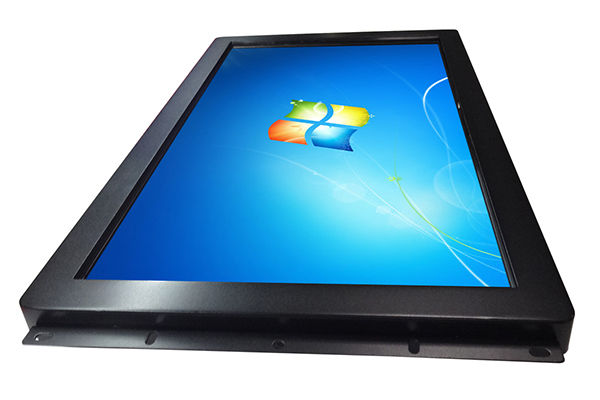

21.5 Inch VESA Wall Mount Industrial Panel PC

  • 21.5 Inch VESA Wall Mount Industrial Panel PC
  • The industrial grade wall mount panel PC AMG-21PPC01T4 made by Amongo comes with the following advantages:
    • Branded industrial grade LCD panels with perfect image quality and wide viewing angles;
    • Powered by reliable Intel processor and other industrial-grade components for a 24/7 long time trouble-free operation;
    • Available with or without touchscreens;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Stable quality, high reliability and long lifetime even in harsh conditions;
    • Ultimate solution for industrial embedded computing with customization;
    Contact Us

Specifications

Model Name

AMG-21PPC01T4

CPU

Intel® Haswell LGA 1150 Support I3/I5/I7

Chipset

Chipset Intel® H81

Memory

DDR3-1066/1333/1600MHz Max 8GB

HDMI port

1 x HDMI port

VGA port

1 x VGA port

COM port

1 x COM port

USB ports

Default x 6 USB 2.0(2 x USB 3.0)

Ethernet

1 x Realtek RTL8111D BASE-T Gigabit Ethernet

Audio

Line-out,Mic-in

Display Size(Diagonal)

21.5"

Active Display Area(mm)

476.64(H)x268.11(V)

Max Resolution

1920x1080

Luminance(cd/㎡)

250

Display Mode

Normally black

Display Color

16.7M

Contrast Ratio

3000:1

Response Time(Typ.Tr+Tf)

25ms

Pixel Pitch(mm)

0.24825(H)x0.24825(V)

Viewing Angle(CR=10)

178(H);178(V)

Backlight

LED

Dimension(VxHxT)

554.4x325.8x60

Type

IR Touchscreen

Input Voltage

DC 12~19V

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5[%RH]~90[%RH]
