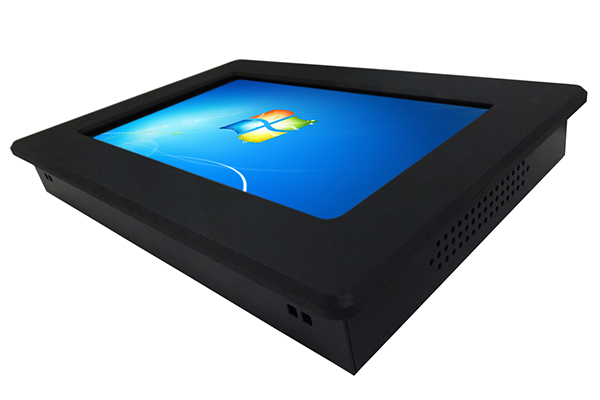

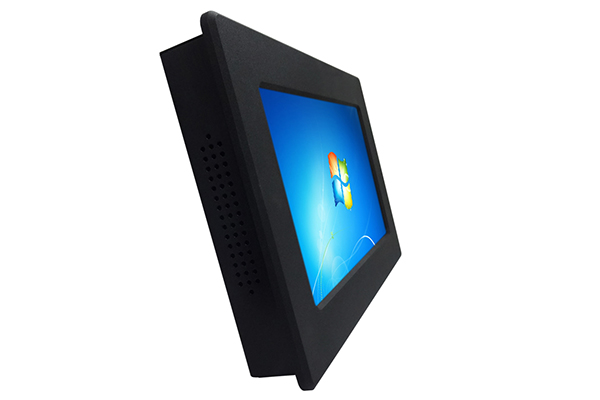

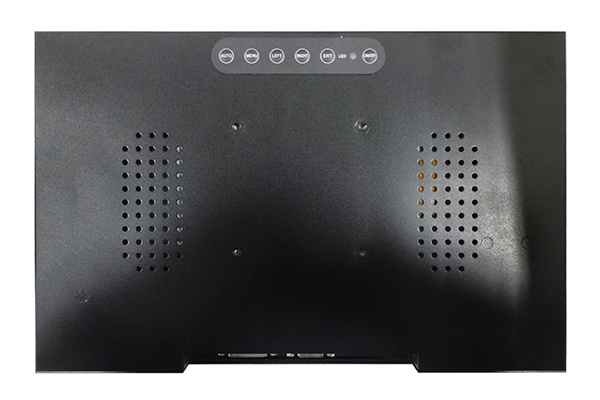

11.6 Inch Panel Mount Lcd Monitor

  • 11.6 Inch Panel Mount Lcd Monitor
  • The industrial grade panel mount LCD monitor AMG-11IPPC01T1 offered by Amongo is ideal for both industrial and commercial industries environments with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • High-end mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications


Model Name

AMG-11IPPC01T1

Screen Size

11.6"

Active Display Area (mm)

270.37(H)x159.79(V)

Pixel Pitch (mm)

0.13455(H)x0.13455(V)

Display Mode

Normally black

Display Resolution (pixel)

16.7M

Contrast Ratio

1920x1080

Display Color

1000:1

Brightness (CD/㎡)

300nits

Backlight

LED

Viewing Angles (CR =10)

178(H);178(V)

Response Time(Typ.Tr+Tf)

25ms

Signal Connector

VGA/DVI-D/USB

Power Consumption

DC 12V

Dimension(VxHxT)

337x225x45

Operating Temperature

0~50℃

Storage Temperature

-10~60℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen

PCAP Touch(10 points)
