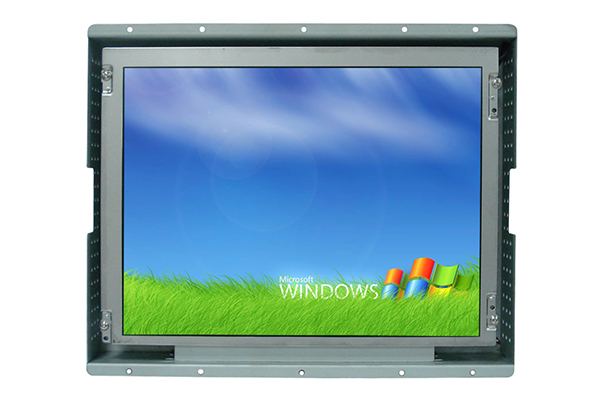

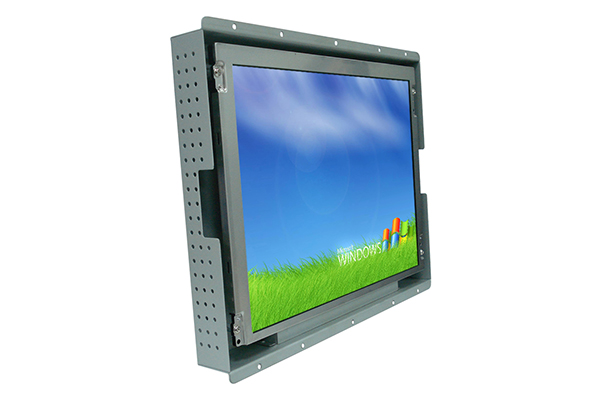

12.1 Inch Open Frame LCD Monitor

  • 12.1 Inch Open Frame LCD Monitor
  • The open frame LCD monitor AMG-12OPMD01N1 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles
    • Built with industrial-grade components for a reliable 24/7/365 operation
    • LED backlight for low power consumption to save more energy
    • Various touchscreen options like PCAP, Resistive, IR, SAW etc
    • High-end mechanical design to meet tough environmental conditions and requirements
    • Rear mounted or VESA mounted design for easy installation for kiosks application
    • Customization service is available
    Contact Us

Specifications

Model Name

AMG-12OPMD01N1

Screen Size

12.1"

Active Display Area (mm)

246.0 (H) x 184.5 (V)

Pixel Pitch (mm)

0.3075(H) x 0.3075(V)

Display Mode

Normally white

Display Resolution (pixel)

800x600

Contrast Ratio

500:1

Display Color

262k,144 colors

Brightness (CD/㎡)

400

Backlight

LED

Viewing Angles (CR =10)

140 (H); 110 (V)

Response Time(Typ.Tr+Tf)

35ms

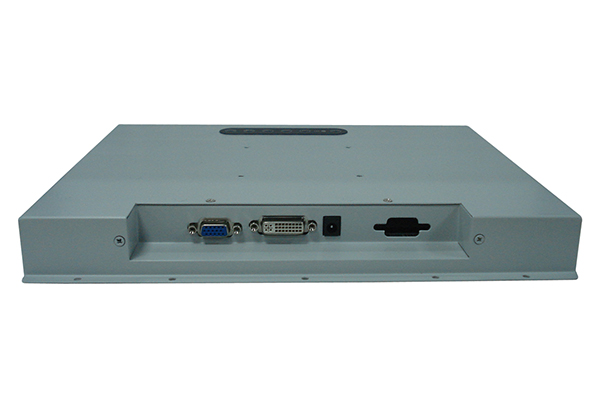

Signal Connector

VGA/DVI

Power Consumption

DC 12V

Dimension(VxHxT)

300x248x34

Operating Temperature

-10~65℃

Storage Temperature

-30~70℃

Relative Humidity

5(%RH)~90(%RH)
