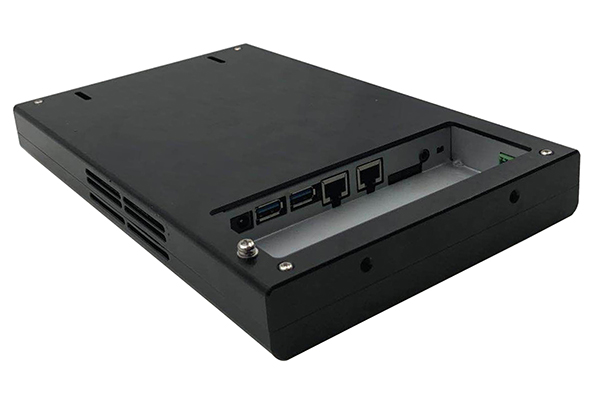

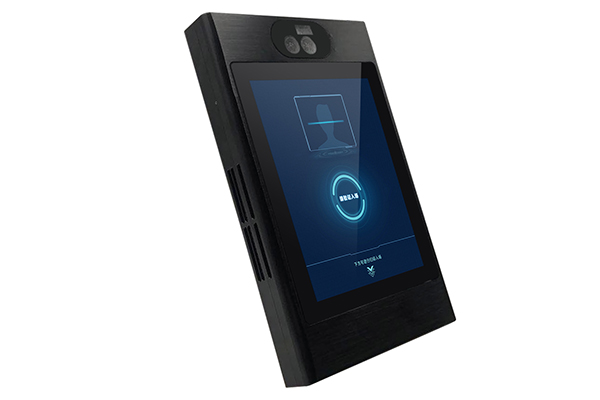

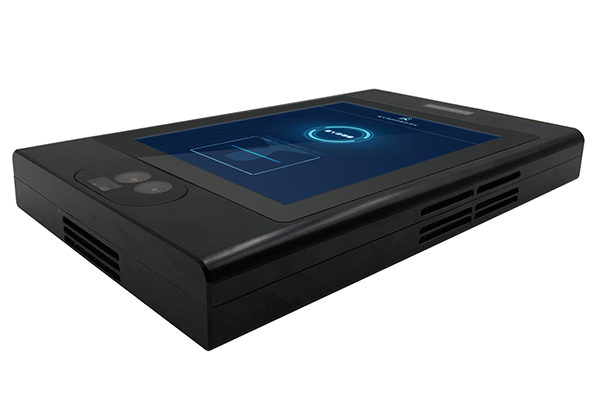

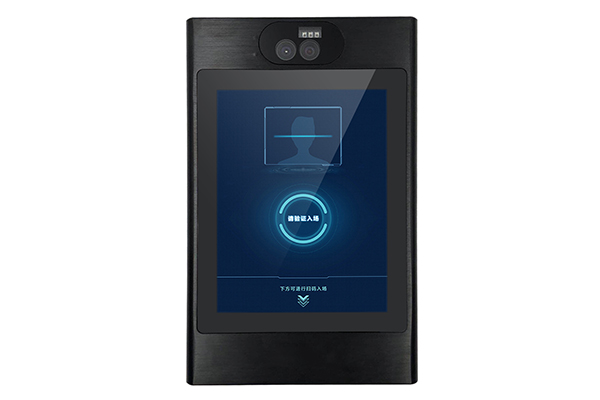

8 Inch Android Based All-In-One Panel PC

  • 8 Inch Android Based All-In-One Panel PC
  •  The 8 inch android based all-in-one panel pc AMG-08PPC02T1 from Amongo is carrying with the following benefits:

    • Branded LCD panels with perfect image quality and wide viewing angles to assure a good visual effect;

    • High-quality industrial-grade components used throughout to maintain the highest MTBF’s;

    • 8 inch 10-points PCAP touchscreen panel;

    • HD Binocular camera used for entry control with facial recognition;

    • Up-to-date Android main board supporting customization application;

    • Resistance to extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.;

    Contact Us

Specifications

Model Name

AMG-08PPC02T1

CPU

RK3399 Dual Cortex A72+Quad core A53 64bit CPU

RAM

2GB(4GB Optional)

ROM

16GB(8GB/32GB/64GB optional)

USB ports

2x USB 3.0

LAN

2x 10/100/1000Base-T Gigabit Ethernet

Auido

Line out

TF Card

Support

OS

Android 7.1

3G/4G

3G/4G PCI-E interface, Support Internet / Voice calls

WiFi / Bluetooth

2.4+5G dual-band WiFi dual antenna, Bluetooth 4.0

Screen Size

8"

Active Area(mm)

162.05(H)x121.54(V)

Pixel Pitch(mm)

0.15825(H)x0.05275(V)

Display Resolution

1024x768

Display Color

Normally Black

Brightness

300nits

Contrast Ratio

800:1

Touch Screen

PCAP Touch(10 points)

HD Camera

Support

Dimension(VxHxT)mm

168x274x38.5

Operating Temperature

-20~60℃(non-condensation)

Storage Temperature

-30~70℃(non-condensation)

Relative Humidity

5~90(%RH)
