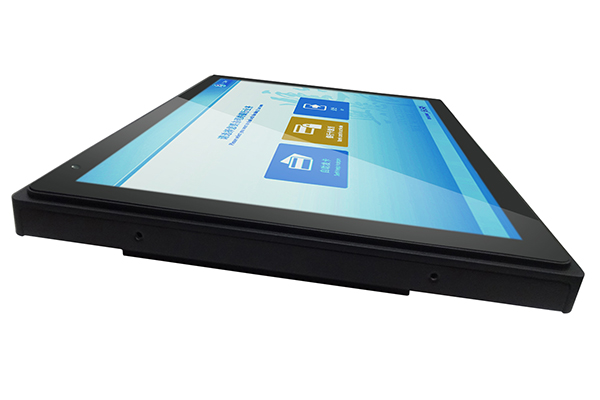

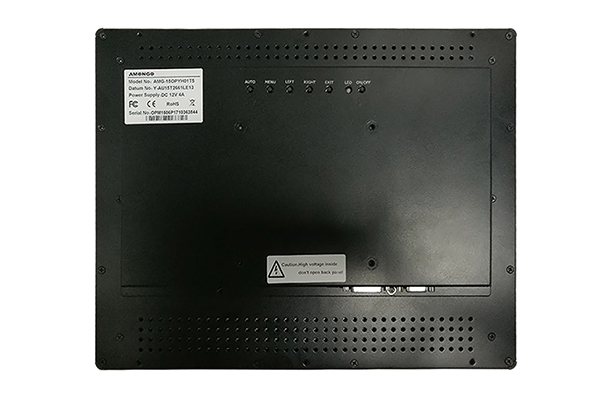

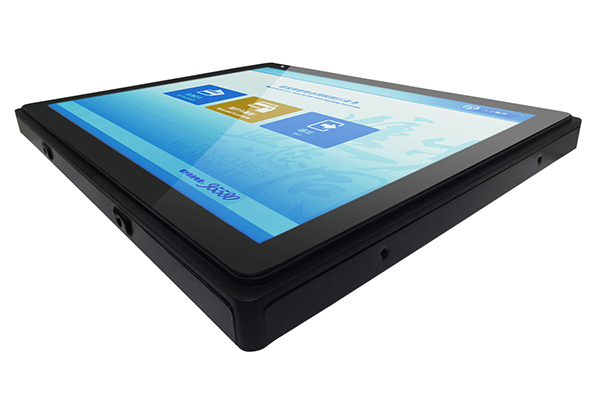

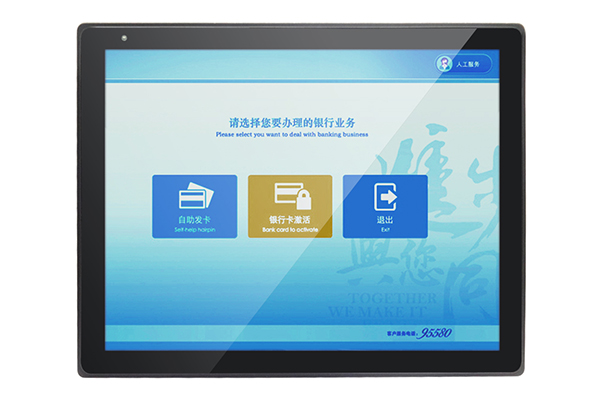

15 Inch Wide Temperature Range LCD Monitor

  • 15 Inch Wide Temperature Range LCD Monitor
  • The industrial LCD monitor AMG-15OPYH01T5 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles;
    • Built with industrial-grade components for a reliable 24/7 long time operation;
    • Wide range operation temperature from -30~85℃; Light sensor for auto dimming
    • Passive Electromagnetic pen; Privacy film optional for security
    • Customization solution available
    Contact Us

Specifications

Model Name

AMG-15OPYH01T5

Screen Size

15"

Active Display Area(mm)

304.128(H)x228.096(V)

Pixel Pitch(mm)

0.297(H)x0.297(V)

Display Mode

Normally white

Display Resolution(pixel)

1024x768

Contrast Ratio

700:1

Brightness

450nits(Light Sensor)

Backlight

LED

Viewing Angles(CR=10)

160(H);140(V)

Response Time(Typ.Tr+Tf)

8ms

Touch Screen

PCAP Touch(10 points)

Electromagnetic Pen

Passive

Privacy Film

Support

Signal Connector

VGA/DVI-D/USB

Power Consumption

DC 12V

Touch Controller

USB

Dimension(VxHxT)

348.64x272.64x48.3

Operating Temperature

-30~85℃

Storage Temperature

-30~85℃

Relative Humidity

5(%RH)~90(%RH)
