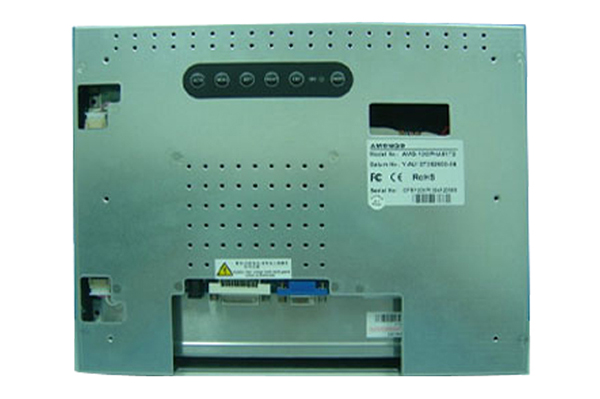

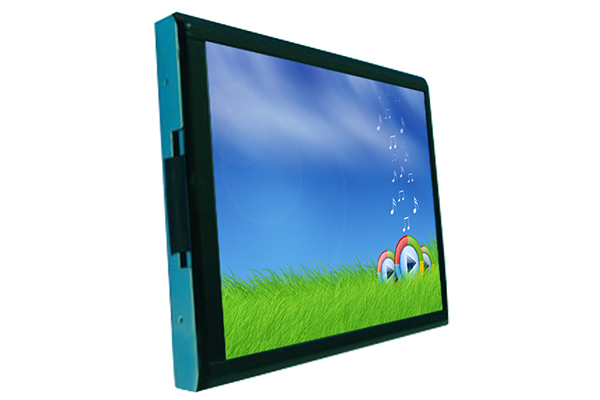

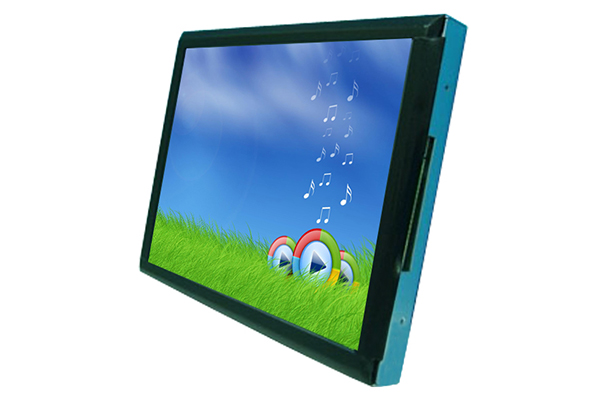

12.1 Inch Open Frame LCD Monitor

  • 12.1 Inch Open Frame LCD Monitor
  • The open frame LCD monitor AMG-12OPHA01T1 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles
    • Built with industrial-grade components for a reliable 24/7/365 operation
    • LED backlight for low power consumption to save more energy
    • Various touchscreen options like PCAP, Resistive, IR, SAW etc
    • High-end mechanical design to meet tough environmental conditions and requirements
    • Customization service is available
    Contact Us

Specifications


Model Name

AMG-12OPHA01T1

Screen Size

12.1"

Active Display Area (mm)

246.0(H)x184.5(V)

Pixel Pitch (mm)

0.3075(H)x0.3075(V)

Display Mode

Normally White

Display Resolution (pixel)

800x600

Contrast Ratio

600:1

Display Color

16.2M/262k color

Brightness (CD/㎡)

400

Backlight

LED

Viewing Angles (CR =10)

140Hx110V

Response Time(Typ.Tr+Tf)

35ms

Signal Connector

VGA/DVI/DC2.0

Power Consumption

DC 12V

Dimension(VxHxT)

300X220X27

Operating Temperature

-30~80℃

Storage Temperature

-30~80℃

Relative Humidity

5(%RH)~90(%RH)
