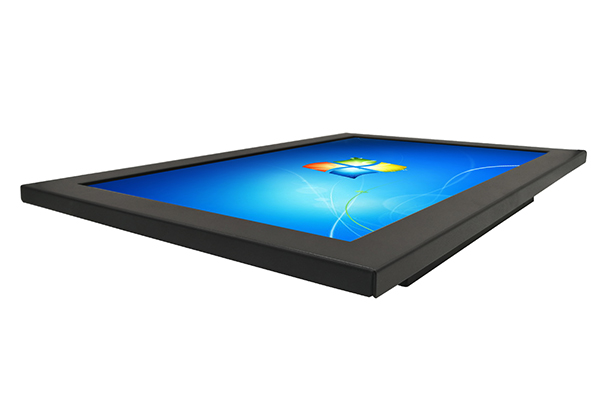

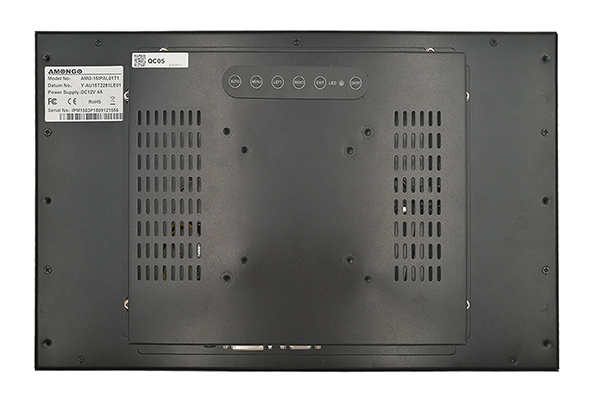

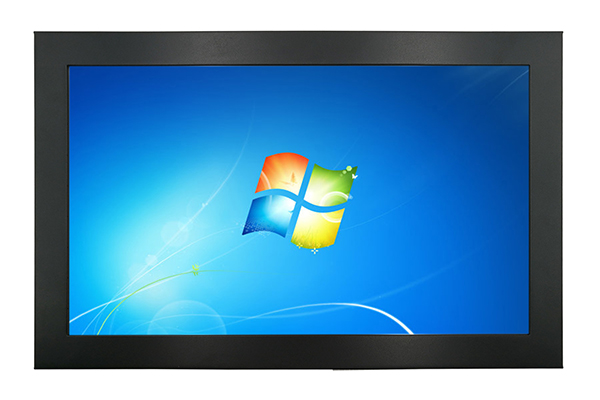

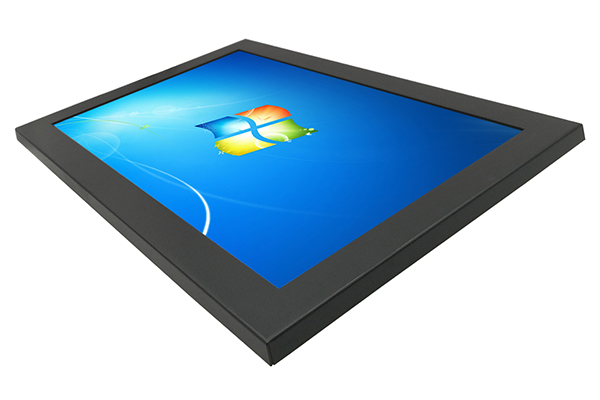

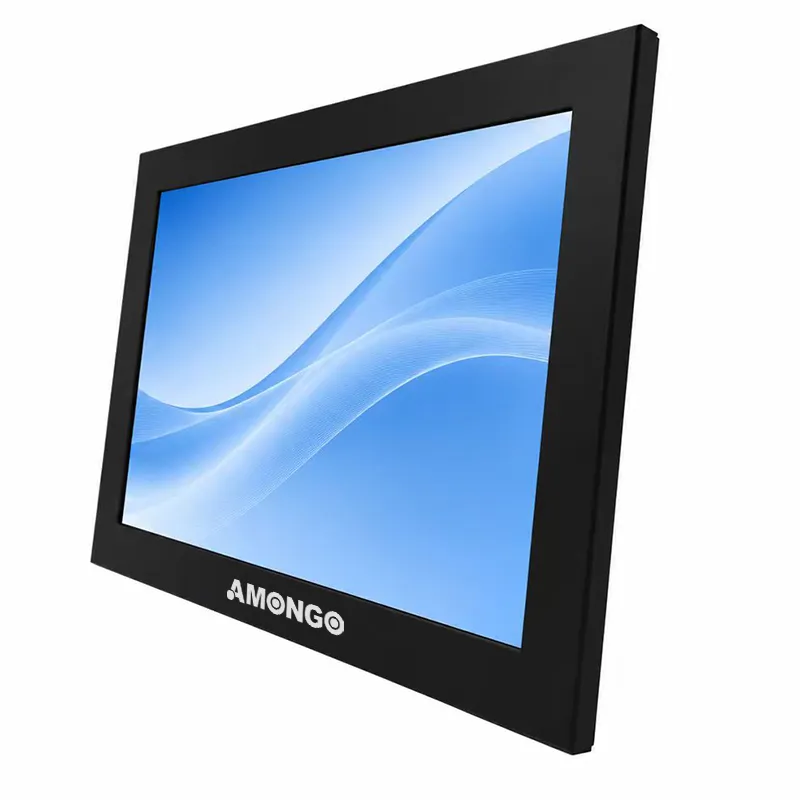

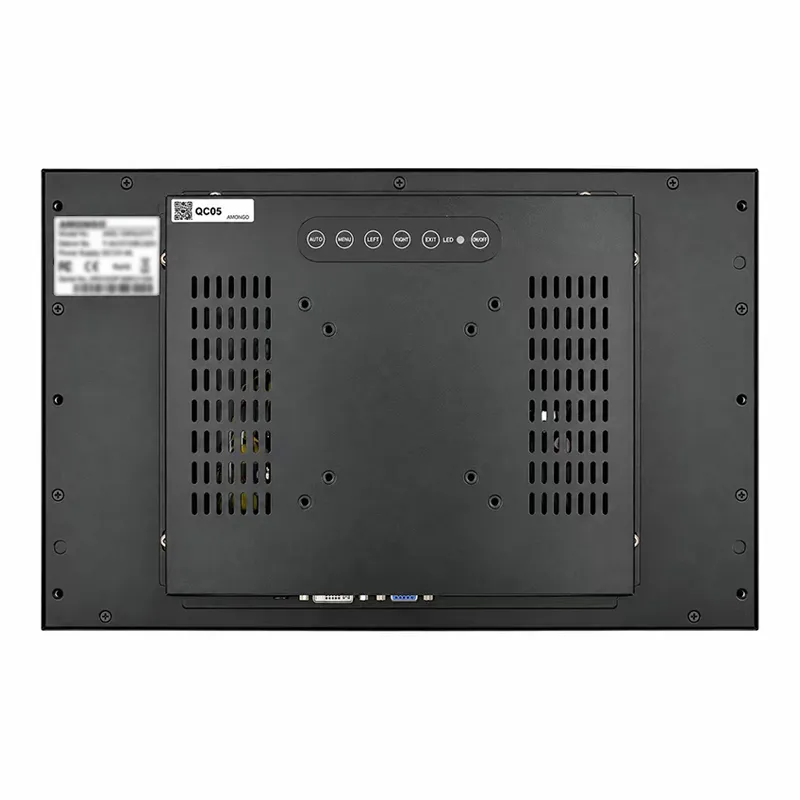

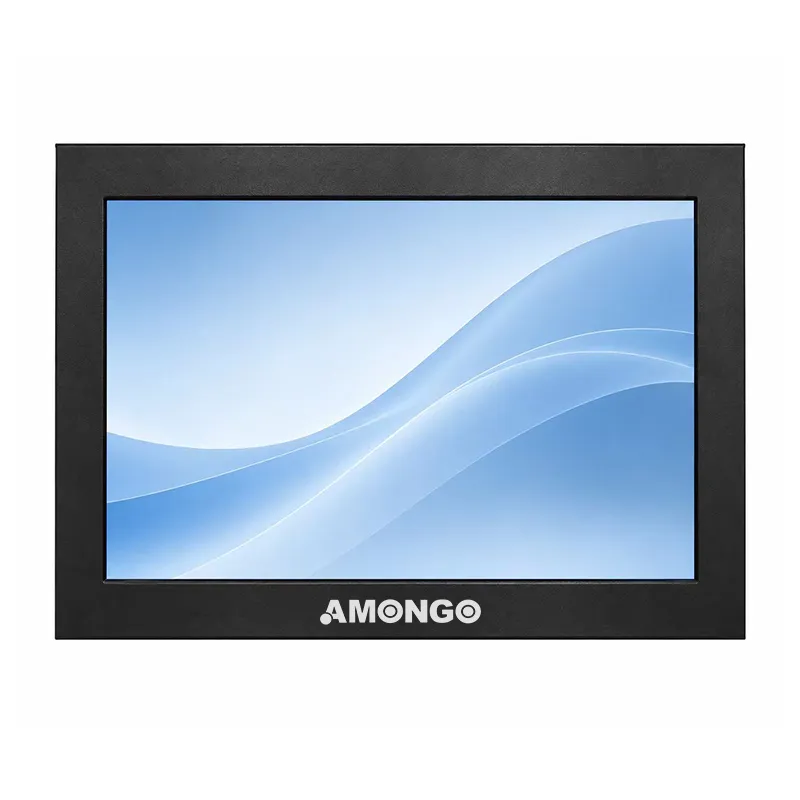

15.6 Inch Vesa/Wall Mount LCD Monitor

  • 15.6 Inch Vesa/Wall Mount LCD Monitor
  • The industrial grade wall mount LCD monitor AMG-15IPAL01T1 made by Amongo features a full metal enclosure and mount using VESA holes in the rear of the design with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • Durable mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications


Model Name

AMG-15IPAL01T1

Screen Size

15.6"

Active Display Area(mm)

344.16(H)x193.59(V)

Pixel Pitch(mm)

0.17925(H)x0.17925(V)

Display Mode

Normally black

Display Color

262K

Display Resolution(pixel)

1920x1080

Contrast Ratio

800:1

Brightness

300nits

Backlight

LED

Viewing Angles(CR=10)

170(H);170(V)

Response Time(Typ.Tr+Tf)

30ms

Touch Screen

Resistive touch(5 wire)

Brightenss / Light Sensor

Optional

Signal Connector

VGA/DVI-D

Power Input

DC 12V (DC2.0/DC2.5)

Touch Controller

USB

Dimension(VxHxT)

397.5x246.8x35

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)
