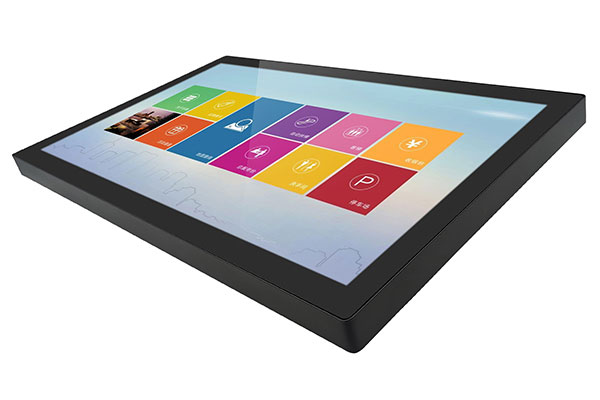

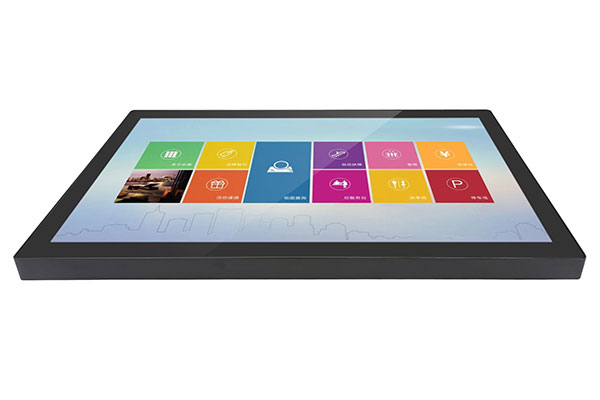

PCAP touch screen industrial monitors, industrial-grade components adopted for a reliable 24/7 long time running;

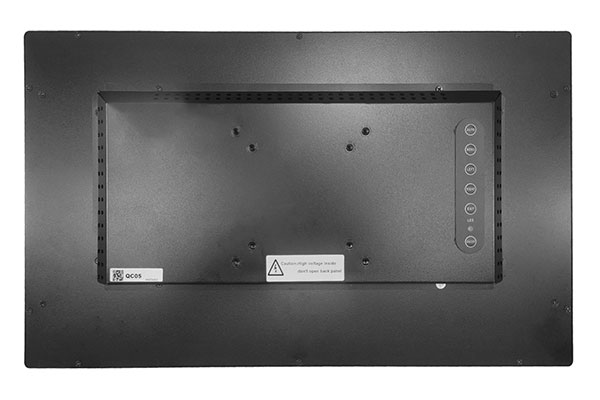

Support embedded / VESA installation;
Surface IP65 waterproof, dust-proof
Surface hardness MoHs 7, scratch resistant
A+ LED backlight industrial grade LCD
Wide temperature, starting at low temperature;
These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.
Model Name | AMG-18IPPE01T1 |
Screen Size | 18.5" |
Active Display Area(mm) | 409.8(H)x230.4(V) |
Pixel Pitch(mm) | 0.3(H)x0.3(V) |
Display Mode | Normally white |
Display Resolution(pixel) | 1366x768 |
Display Color | 16.7M |
Contrast Ratio | 1000:1 |
Brightness | 250nits |
Backlight | LED |
Viewing Angles(CR=10) | 170(H);160(V) |
Response Time(Typ.Tr+Tf) | 5ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered glass | Optional |

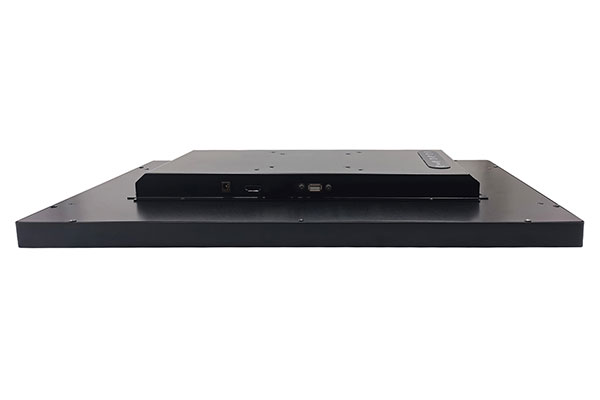

Signal Connector | HDMI |
Power Input | DC 12V |
Touch Controller | USB |
Dimension(VxHxT)mm | 448.5x273.6x47 |
Operating Temperature | 0~50℃(non-condensation) |
Storage Temperature | -20~60℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
