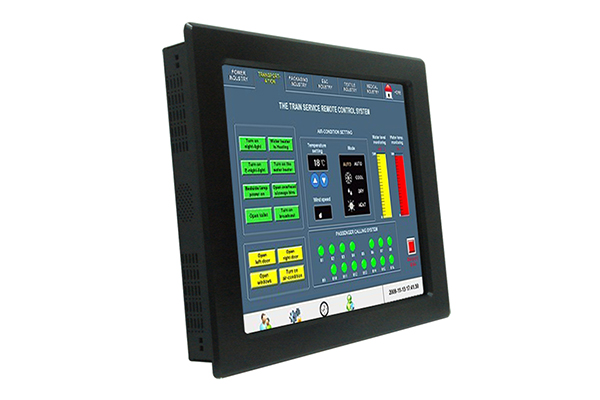

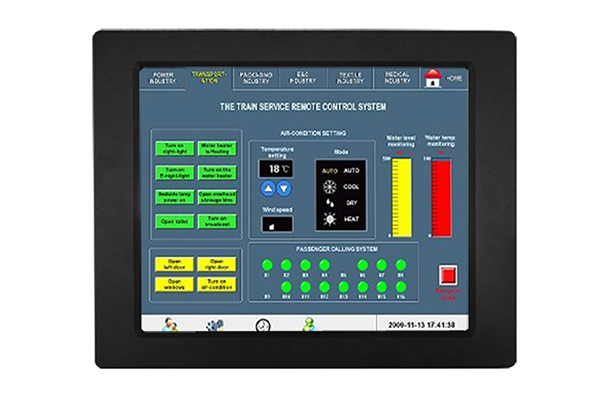

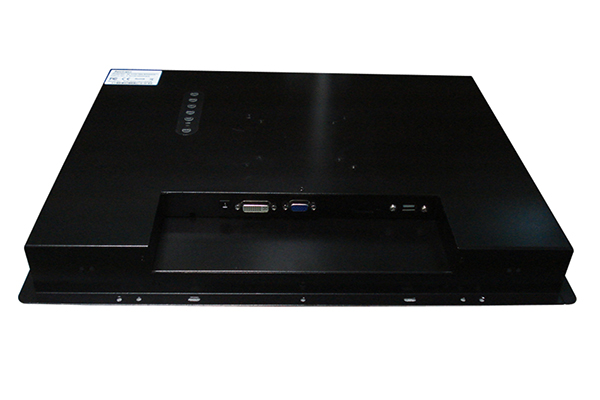

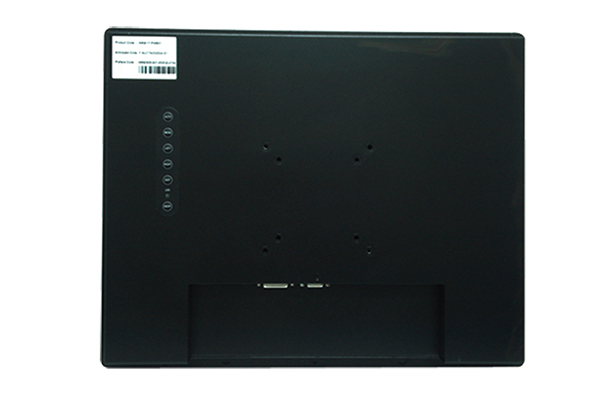

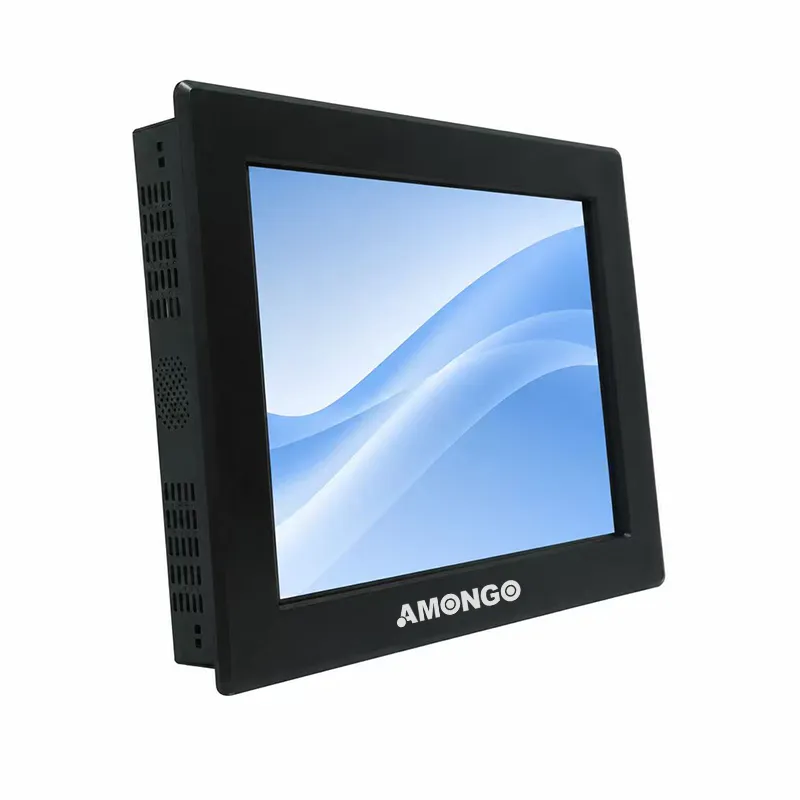

19 Inch Panel Mount LCD Monitor

  • 19 Inch Panel Mount LCD Monitor
  • The industrial grade panel mount LCD monitor AMG-19IPPC02G1 offered by Amongo is ideal for both industrial and commercial industries environments with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • High-end mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-19IPPC02G1

Screen Size

19"

Active Display Area (mm)

376.32(H)x301.06(V)

Pixel Pitch (mm)

0.294(H)x0.294(V)

Display Mode

Normally White

Display Resolution (pixel)

1280X1024

Contrast Ratio

1000:1

Display Color

16.7M color

Brightness (CD/㎡)

350

Backlight

LED

Viewing Angles (CR =10)

170Hx160V

Response Time(Typ.Tr+Tf)

5ms

Signal Connector

VGA/DVI

Power Consumption

DC 12V

Dimension(VxHxT)

480.6X382.59X56.8

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)

Type

Tempered glass / Touch Screen
