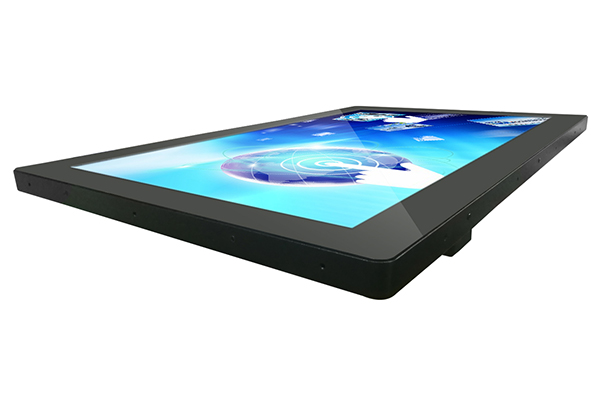

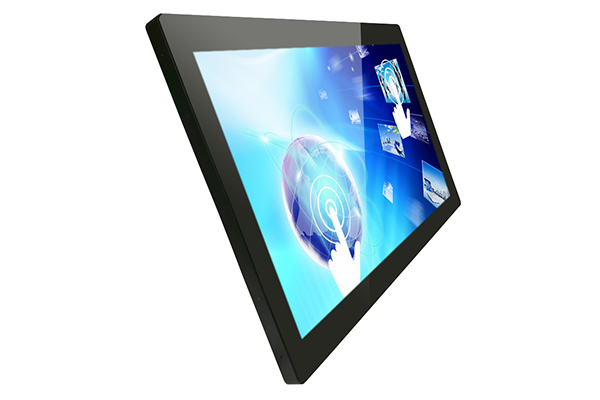

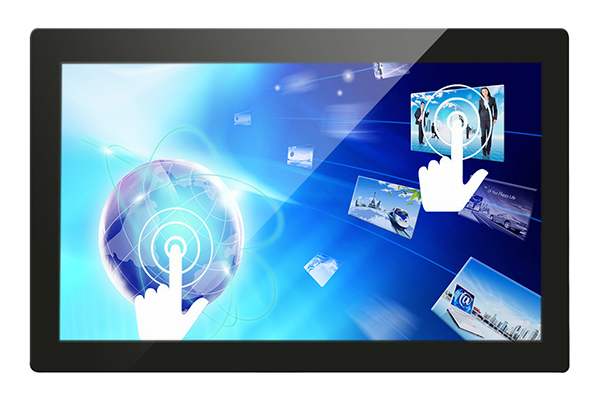

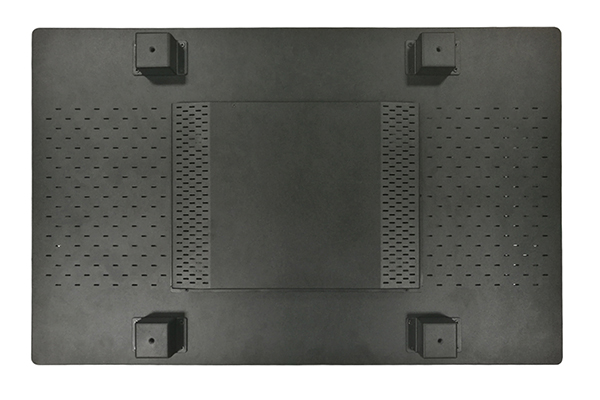

32 Inch VESA Wall Mount Industrial Panel PC

  • 32 Inch VESA Wall Mount Industrial Panel PC
  • The industrial grade chassis or vesa mount panel PC AMG-32PPC01T3 made by Amongo is designed with benefits listed below:
    • Industrial grade LCD panels with long lifespan, low power consumption;
    • Reliable Intel processor and other high-end components to ensure long-lasting working;
    • Equipped with multi-touch PCAP touchscreen, true flat surface;
    • Designed with robust metal or aluminum or stainless steel enclosure for front IP rating, dust proof, vandal proof etc.;
    • Survive in extremely harsh and sensitive environments
    • Independent laboratories certify compliance, passed tests for reliability, anti-shock, anti-vibrations;
    • Ultimate customized solution for industrial embedded computing;
    Contact Us

Specifications

Model Name

AMG-32PPC01T3

CPU

Intel Haswell/Broadwell series SoC Processor

RAM

4GB(Max 8GB optional)

Msata

16GB(Max 128GB optional)

VGA ports

1x VGA ports

HDMI ports

1x HDMI ports

USB ports

Default 2xUSB 2.0(2xUSB 3.0)

Ethernet

1x 10/100/1000BASE-T Gigabit Ethernet

Audio

Mic-in, Line-out

Screen Size

32"

Active Area(mm)

698.4(H)x392.85(V)

Pixel Pitch(mm)

0.12125(H)x0.12125(V)

Display Resolution

1920x1080

Brightness(cd/㎡)

300nits

Contrast Ratio

1200:1

Viewing Angles

178(H);178(V)

Response Time

8ms

Touch Screen

PCAP Touch(10 points)

Signal Connector

VGA/HDMI/USB/Audio/LAN

Power Consumption

AC 100~240V

Touch Controller

USB

Dimension(VxHxT)

779x489x60

Operating Temperature

0~50℃(not clotted)

Storage Temperature

-20~60℃(not clotted)

Relative Humidity

5~90(%RH)
