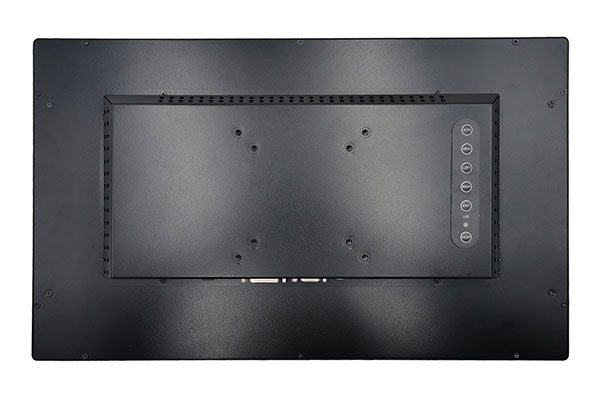

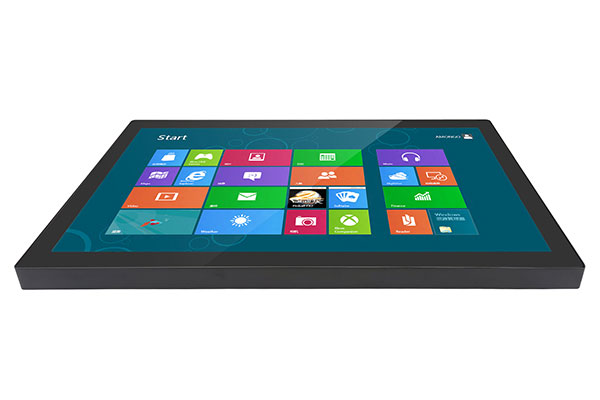

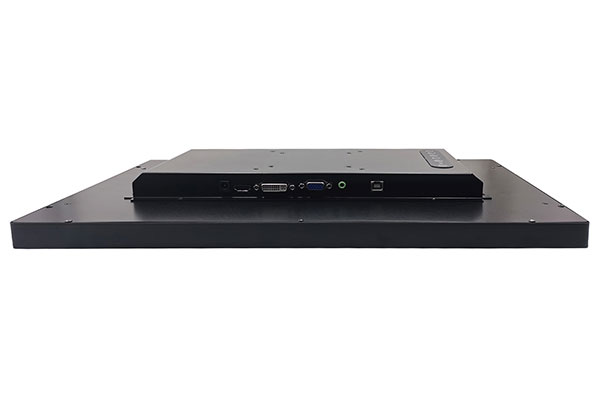

18.5 inch Industrial PCAP Touch Screen LCD Monitor

  • 18.5 inch Industrial PCAP Touch Screen LCD Monitor
  • The zero-bezel Industrial PCAP Multi-Touch Screen LCD Monitor AMG-18IPAM01T1 by Amongo features as below:

    • PCAP touch screen industrial monitors, industrial-grade components adopted for a reliable 24/7 long time running;

    • Support embedded / VESA installation;

    • Surface IP65 waterproof, dust-proof, vandal-proof

    • Surface hardness MoHs 7;

    • Wide temperature, starting at low temperature;

    • High reliability test, stable quality;

    • These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.

    Application: IoT AI, Kiosks,
    Contact Us

Specifications

Model Name

AMG-18IPAM01T1

Screen Size

18.5"

Active Display Area(mm)

408.96(H)x230.04(V)

Pixel Pitch(mm)

0.213(H)x0.213(V)

Display Mode

Normally black

Display Resolution(pixel)

1920x1080

Contrast Ratio

1000:1

Display Color

16.7M

Brightness

350nits

Backlight

LED

Viewing Angles(CR=10)

178(H);178(V)

Response Time(Typ.Tr+Tf)

20ms

Touch Screen

PCAP Touch(10 points)

Light Sensor

Optional

Tempered glass

Optinal

Signal Connector

VGA/DVI-D/HDMI/Audio

Power Input

DC 12V

Touch Controller

USB

Dimension(VxHxT)mm

449.1x274.2x47

Operating Temperature

-20~70℃(non-condensation)

Storage Temperature

-20~70℃(non-condensation)

Relative Humidity

5~90(%RH)
