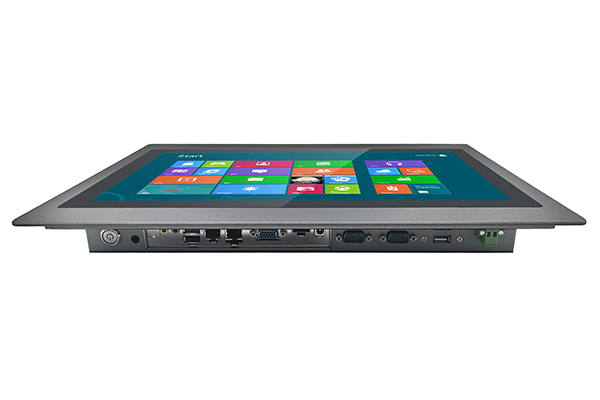

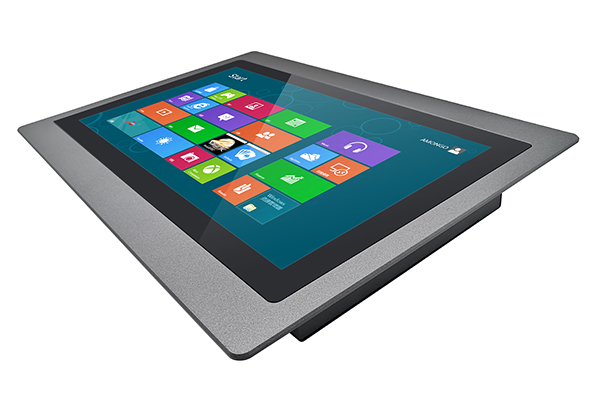

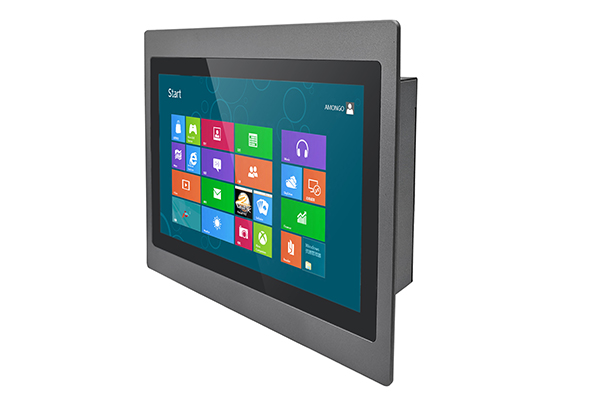

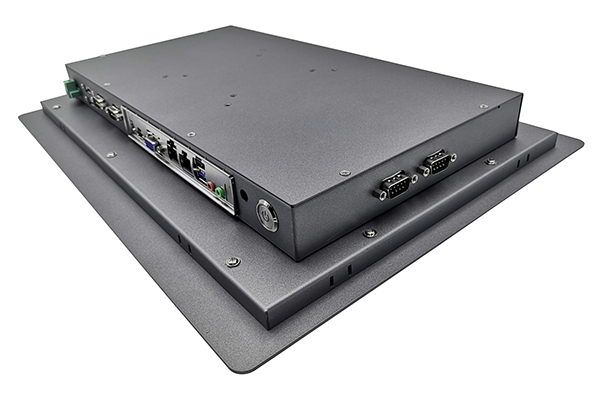

15.6 inch Industrial Touch screen Panel PC

Amongo's ultra-slim designed 15.6 inch industrial touch screen panel computer is a low power-consumption fanless computer with the following benefits:
- Original famous brand LCD panels with perfect image quality and wide, LED backlight with long life span, energy-saving;
- Powered by reliable Intel J1900 processor and other industrial-grade components for industrial applications;
- Modularized compact design, easy for installation and replacement;
- 10 points capacitive touch screen, IP65 front AL bezel, flat surface;
- Stable quality, high reliability and long lifetime even in harsh conditions;
- Ultimate solution for industrial embedded computing with customization;
Application:
Contact Us

Specifications

System	Model Name	AMG-15PPC05T1
	CPU	Intel ® Bay Trail J1900 Quad Core 2.0GHz
	RAM	2GB(4GB optional)
	SSD	120GB(optional)

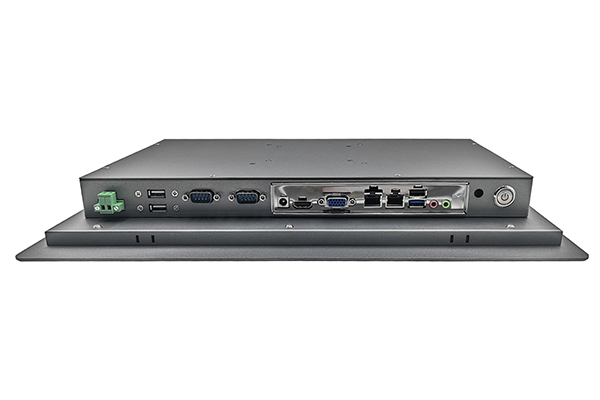

	VGA port	1 x VGA port
	HDMI port	1 x HDMI
	COM ports	4 x COM port
	USB ports	3 x USB 2.0 ; 1 x USB 3.0
	LAN	2 x 10/100/1000Base-T Gigabit Ethernet
	Auido	Mic-in,Line-out
	Phoenix Terminal	1 x Phoenix Terminal
LCD	Screen Size	15.6"
	Active Area(mm)	344.16(H)x193.59(V)
	Pixel Pitch(mm)	0.17925(H)x0.17925(V)
	Display Resolution	1920x1080
	Brightness	250nits
	Contrast Ratio	800:1
	Viewing Angles	170(H);170(V)
	Response Time(Tr+Tf)	30ms
	Backlight	LED
Optional	Touch Screen	PCAP Touch(10 points)
Optional	Tempered Glass	Optional
Mechanical	Dimension(VxHxT)mm	420x302x48
Environmental	Operating Temperature	0~500℃(non-condensation)
	Storage Temperature	-20~60℃(non-condensation)
	Relative Humidity	5~90(%RH)
