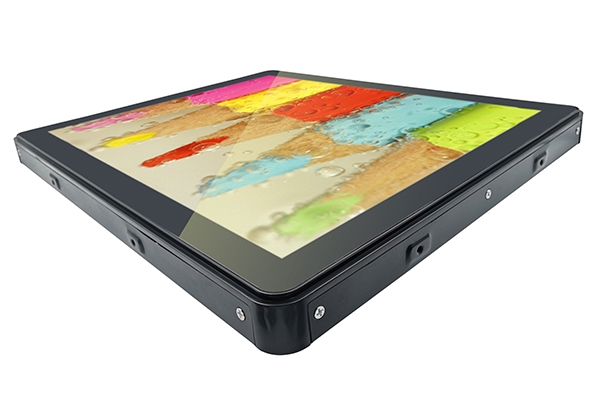

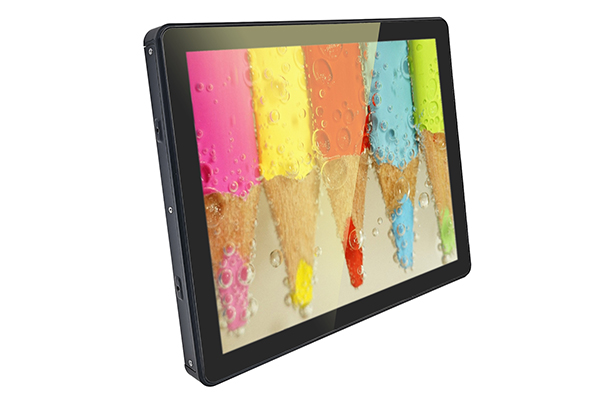

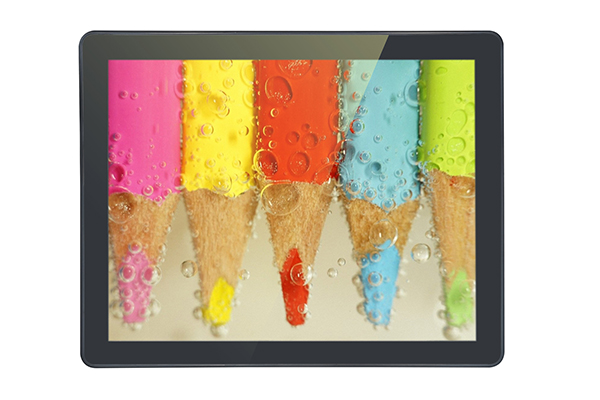

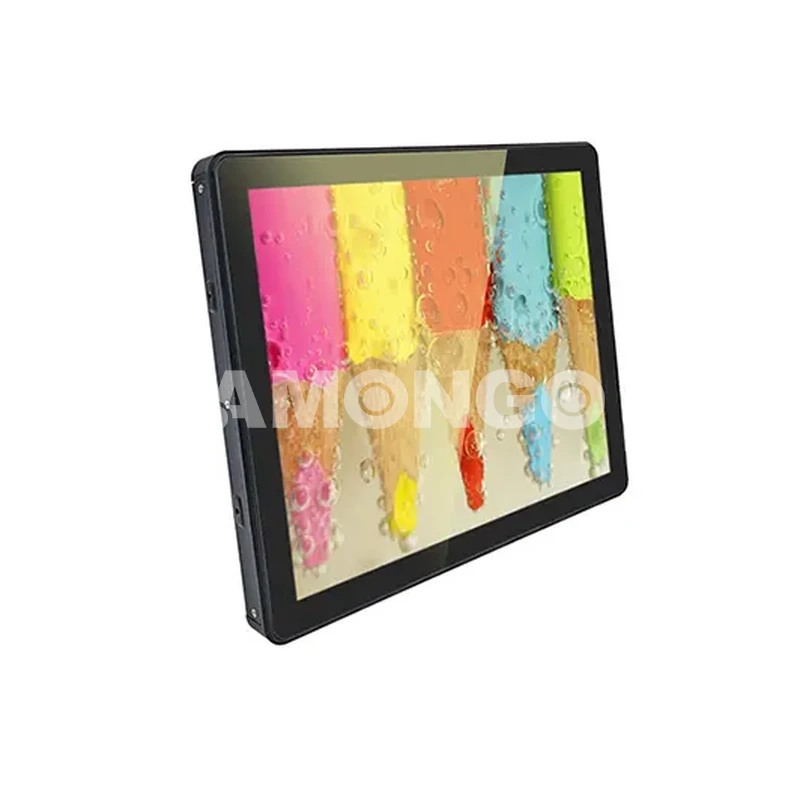

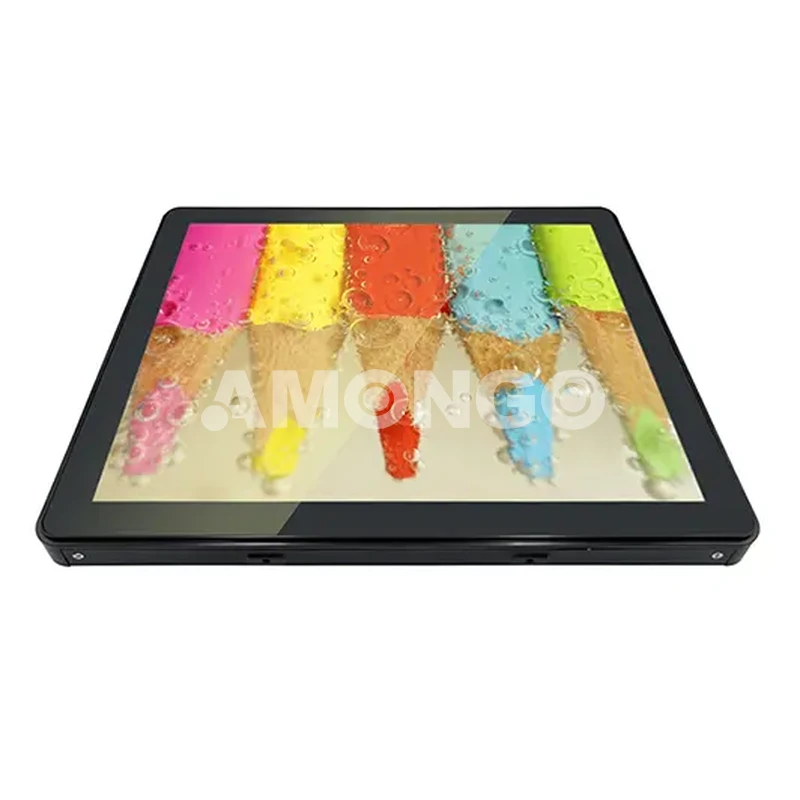

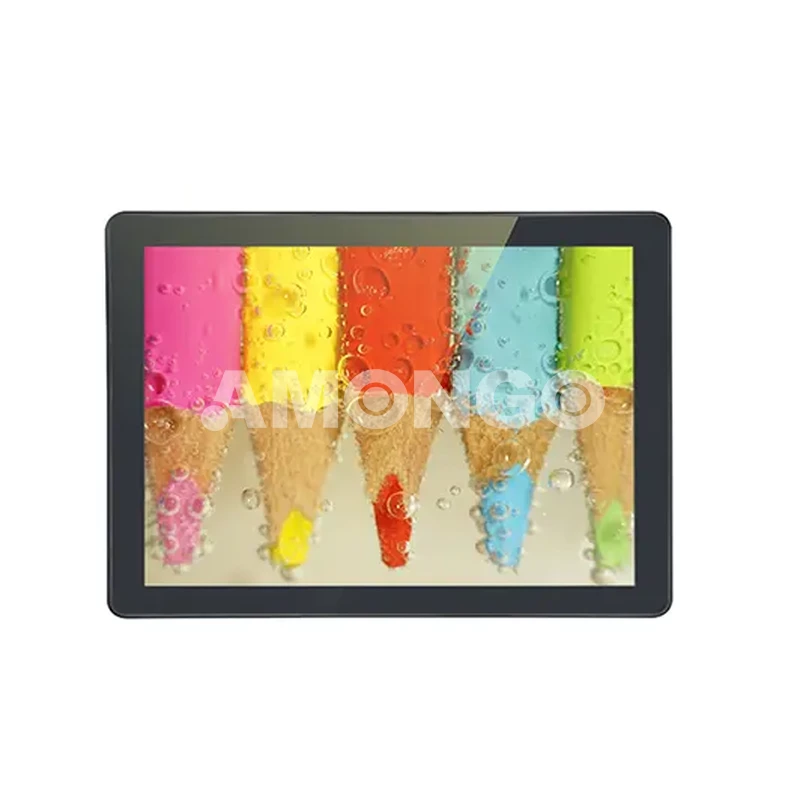

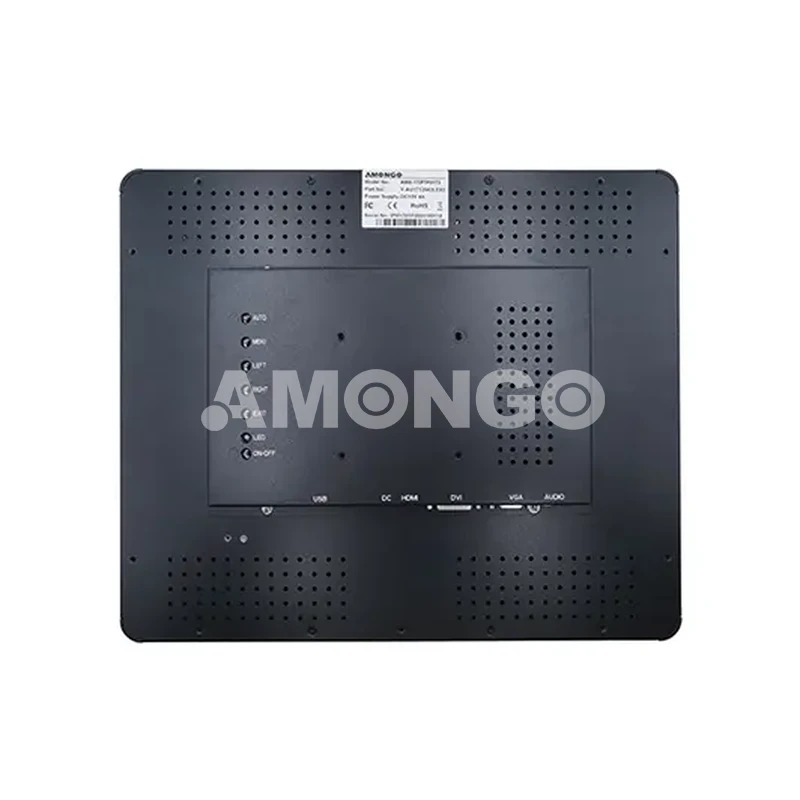

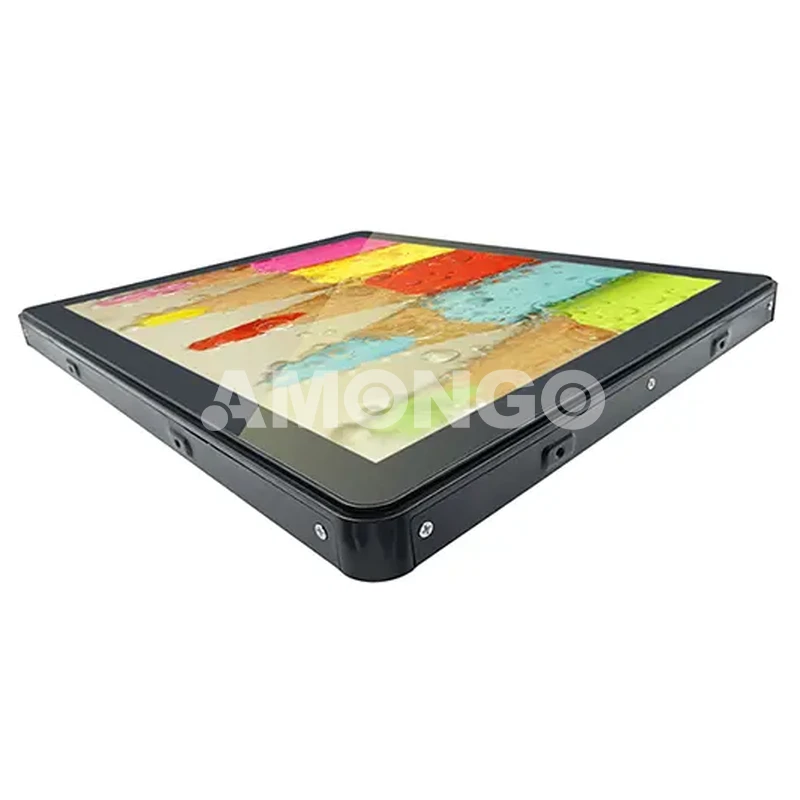

17 inch Sunlight Readable Touch Screen Monitor

  • 17 inch Sunlight Readable Touch Screen Monitor
  • The 17 inch high brightness sunlight readable touch screen monitor AMG-17IPTP01T3 is a customized model to meet the requirement for outdoor application with the following advantages:
    • Brightness over 1000 nits, with self-developed backlight design, adopting tier one brand LED as light source, long life span and energy-efficiency;
    • Industrial-grade components used with robust mechanical design to assure stable function even running under harsh outdoor environment;
    • User-friendly multi-points capacitive touch screen technology, easy for operation;
    • UV protection for outdoor application to extend the lifespan of touch screen and LCD panel;
    • Integrated with mold side frame to realize front IP65 with flat surface, very easy installation and maintenance;
    • OEM or ODM service available to 100% meet your project requirements;
    Contact Us

Specifications

Model Name

AMG-17IPTP01T3

Screen Size

17"

Active Display Area(mm)

337.920(H)x270.336(V)

Pixel Pitch(mm)

0.264(H)x0.264(V)

Display Resolution (pixel)

Normally White

Contrast Ratio

1280x1024

Display Mode

16.7M

Touch screen(optional)

1000:1

Brightness (cd/㎡)

1000nits

Backlight

LED

Viewing Angles (CR=10)

170(H);160(V)

Response Time(Typ.Tr+Tf)

5ms

Touch Screen

PCAP Touch(10 points)

UV

Support

Light Sensor

Optional

Dimension(VxHxT)

395x327.4x59.3

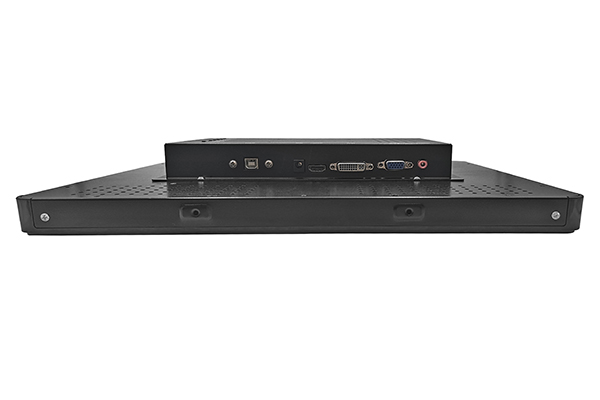

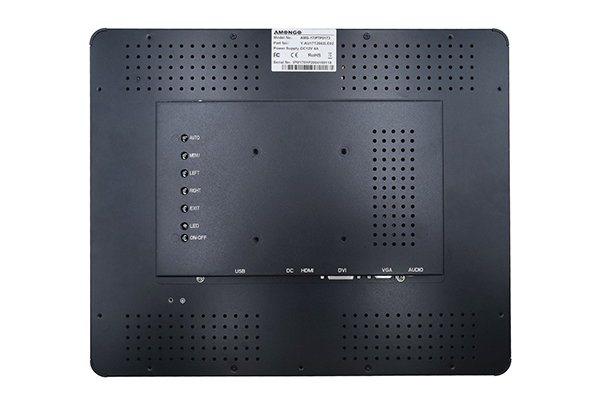

Signal Connector

VGA/DVI-D/HDMI/Audio

Power Input

DC 12V

Touch Controller

USB

Operating Systems Support

Windows 7/8/10 / Linux(optional)

Operating Temperature

0~50℃(non-condensation)

Storage Temperature

-20~60℃(non-condensation)

Relative Humidity

5(%RH)~90(%RH)
