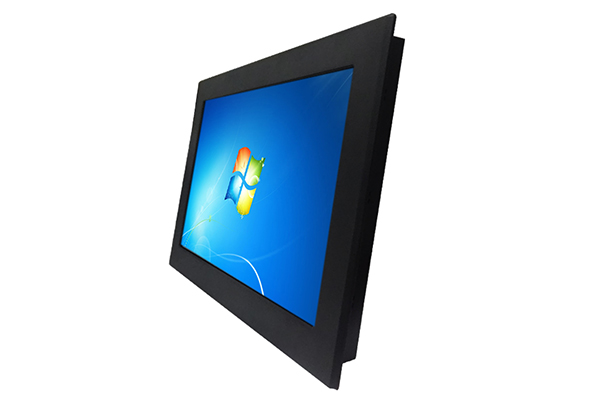

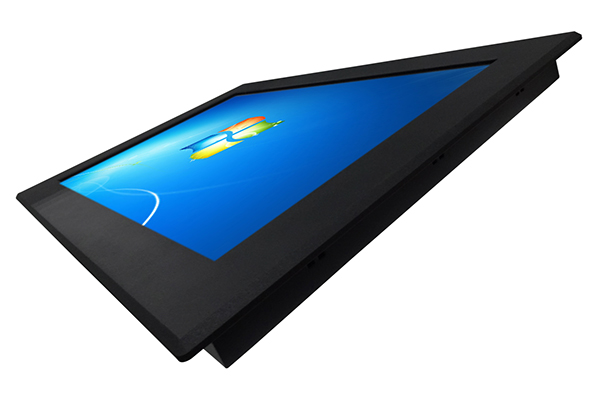

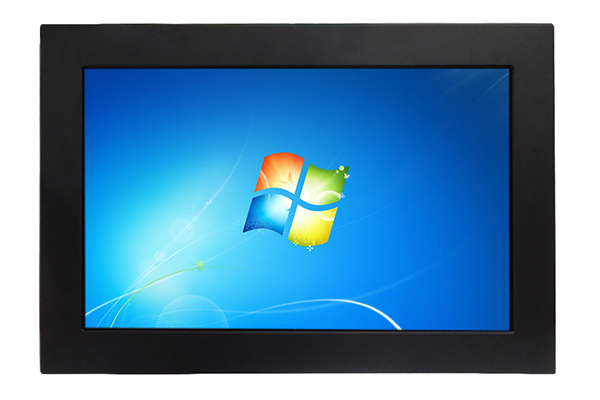

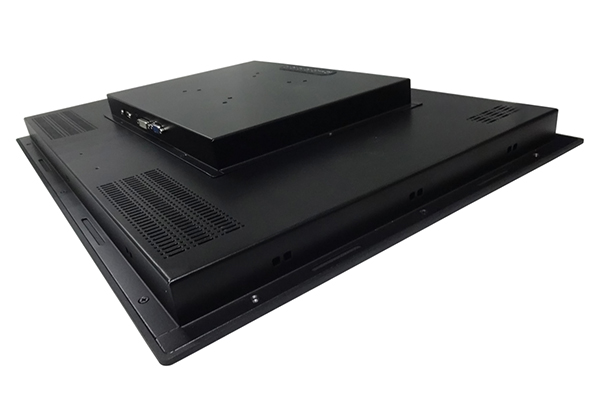

22 Inch Panel Mount LCD Monitor

  • 22 Inch Panel Mount LCD Monitor
  • The industrial grade panel mount LCD monitor AMG-22IPPC01T6 offered by Amongo is ideal for both industrial and commercial industries environments with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • High-end mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • High brightness over 1000nits, sunlight readable
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-22IPPC01T6

Screen Size

22"

Active Display Area (mm)

473.76(H)x296.1(V)

Pixel Pitch (mm)

0.282(H)x0.282(V)

Display Mode

Normally white

Display Resolution (pixel)

16.7M

Contrast Ratio

1680x1050

Display Color

1000:1

Brightness (CD/㎡)

1000nits

Backlight

LED

Viewing Angles (CR =10)

170(H);160(V)

Response Time(Typ.Tr+Tf)

25ms

Signal Connector

VGA/DVI-D/USB

Power Consumption

DC 12V

Dimension(VxHxT)

573.7x400.1x60.8

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)
