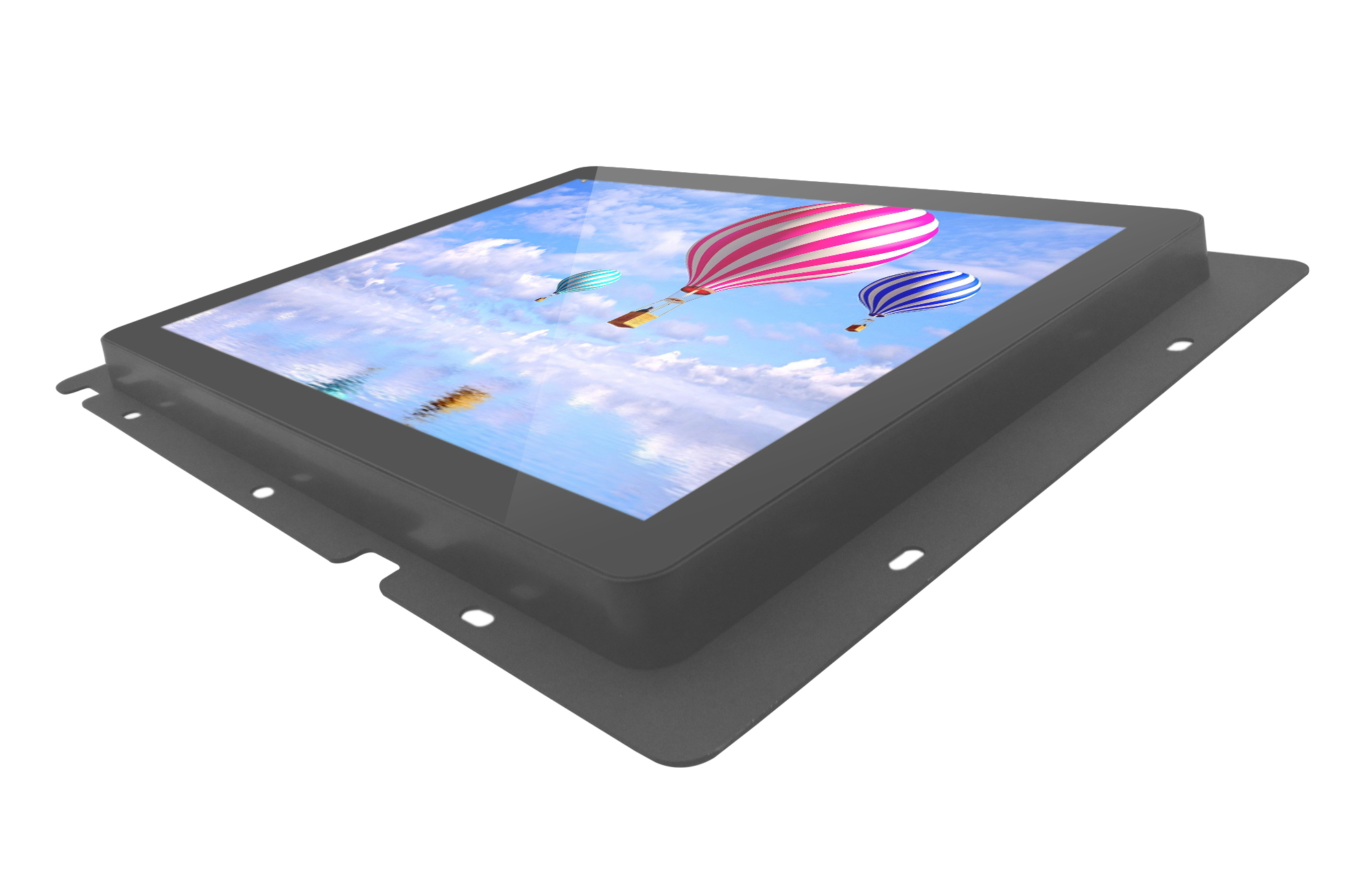

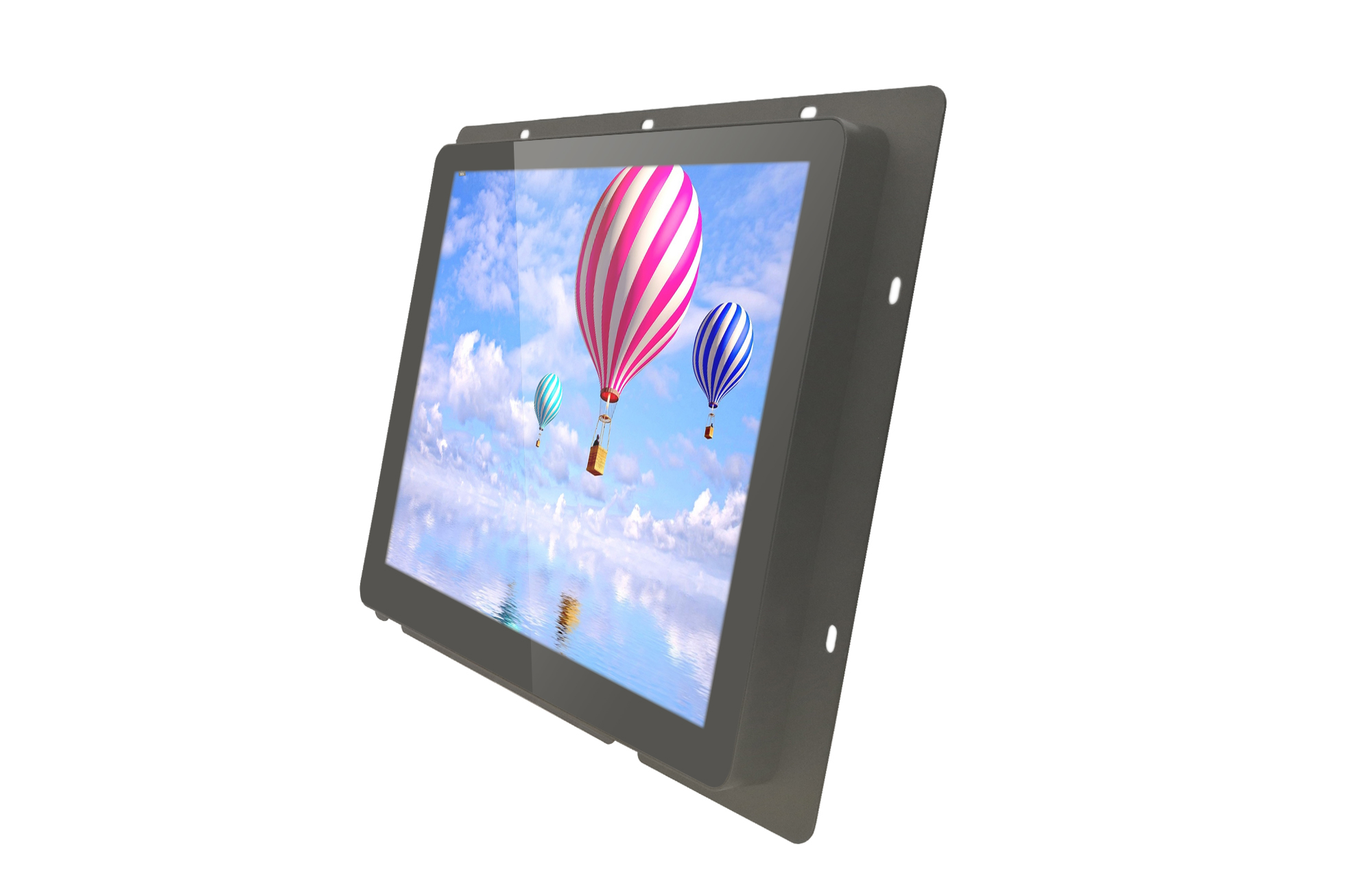

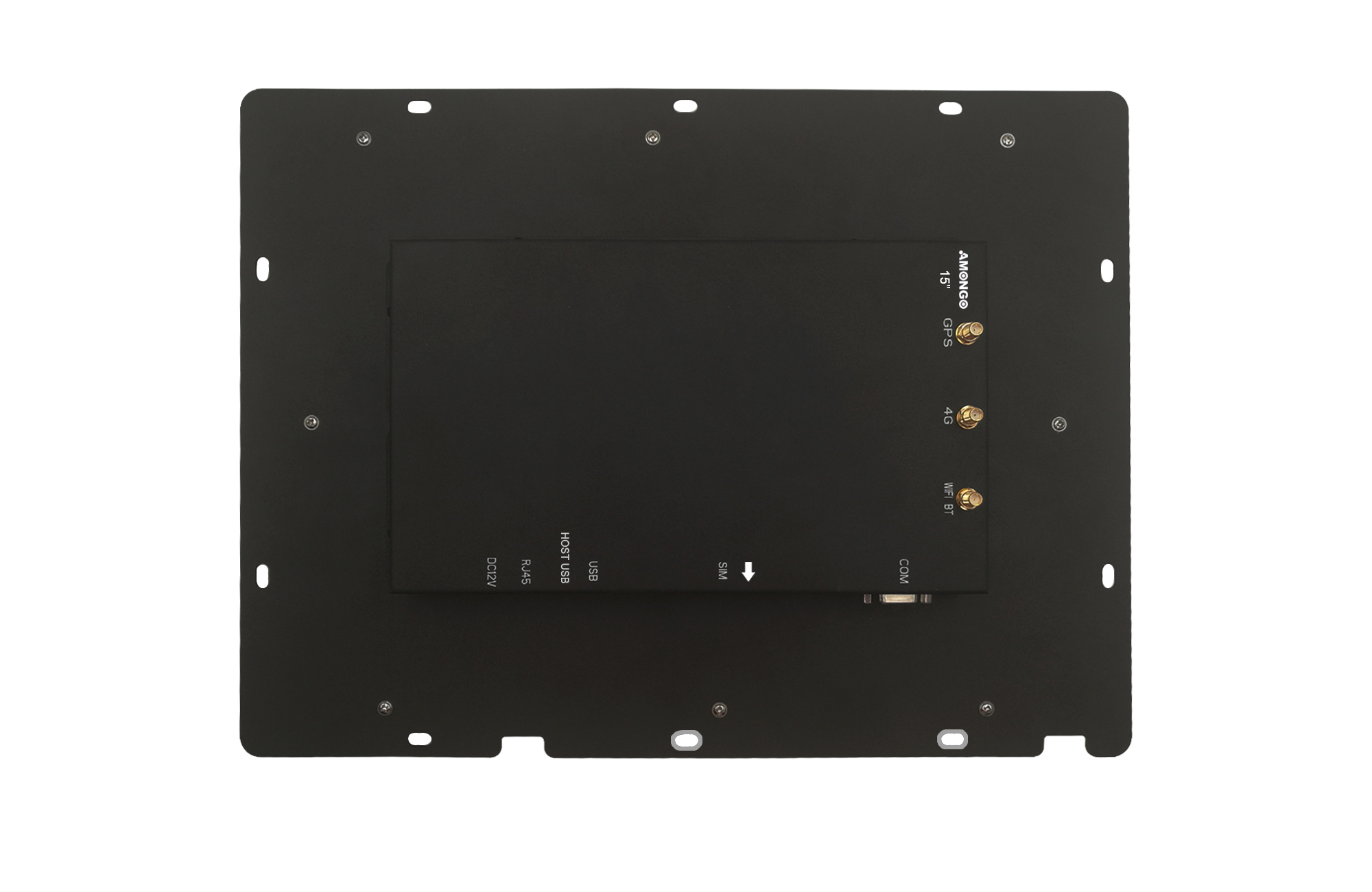

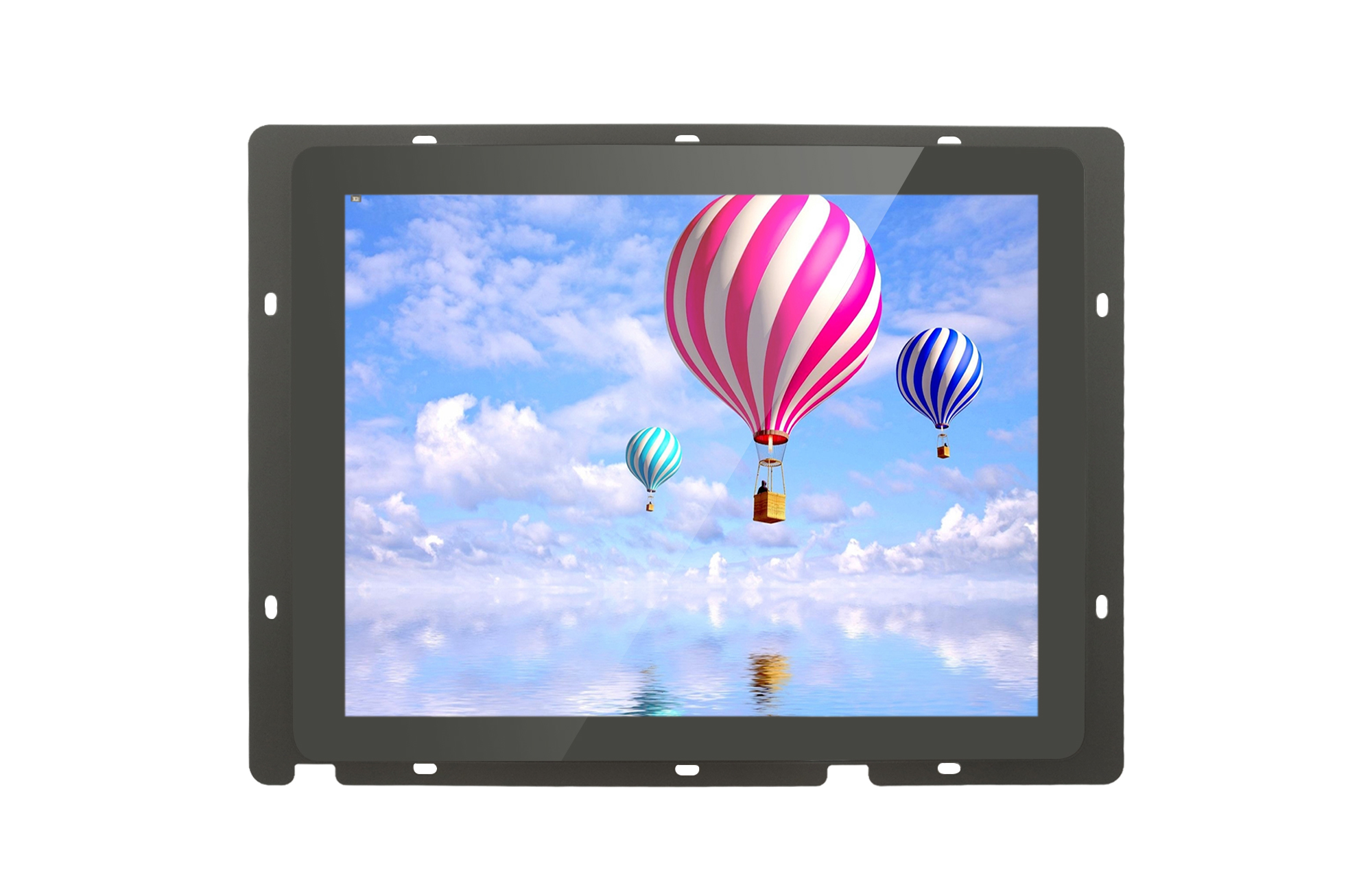

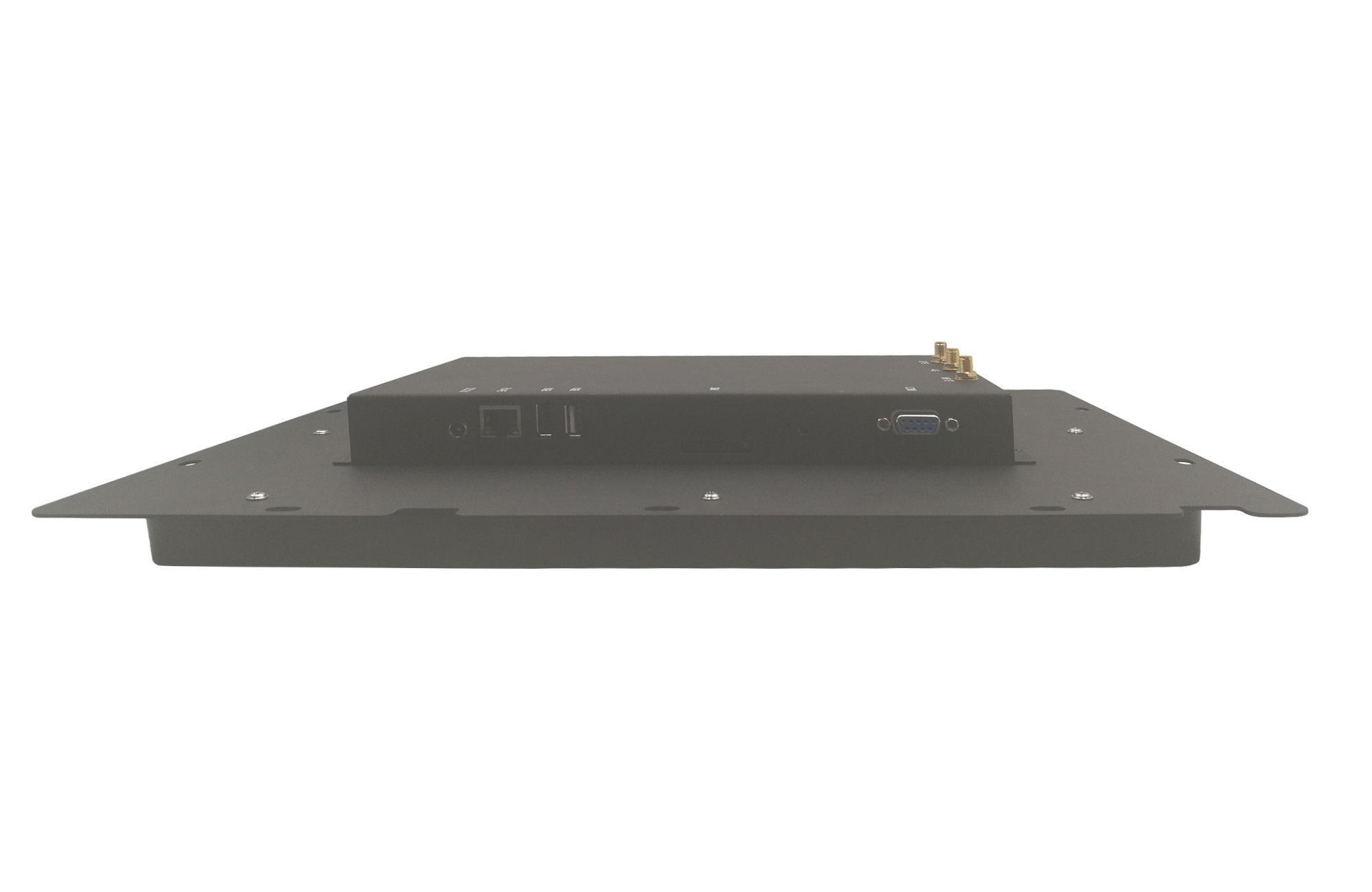

15 Inch Android Based All-In-One Panel PC

  • 15 Inch Android Based All-In-One Panel PC
  • The 15 inch android based all-in-one panel pc AMG-15PPC02T2 from Amongo is designed with following features for self-service terminals:
    • Branded LCD panels with perfect image quality and wide viewing angles for good visual effect;
    • High-quality industrial-grade components used for stable performance in extreme operation environments;
    • 15 inch 10-points PCAP touchscreen panel with full flat surface design;
    • 3G/4G, Ethernet, WiFi, GPS, Bluetooth functions optional;;
    • Up-to-date Android main board supporting customization application;
    • Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.;
    • Fully customization solution available for customers’ projects.
    Contact Us

Specifications

Model Name

AMG-15PPC02T2

CPU

RK3368 Eight Core ARM-A53 1.5GHz

RAM

2GB(4GB optional)

ROM

8GB(16/32GB optional)

OS

Android 5.1.1

VGA Port

1 x VGA

USB Ports

2 x USB

Ethernet

4G/3G, Ethernet, WiFi, GPS, Bluetooth optional

Audio

Mic-in, Line-out

Screen Size

15"

Active Area(mm)

344.16(H)x193.59(V)

Pixel Pitch(mm)

0.297(H)x0.297(V)

Display Resolution

1024x768

Display Color

Normally Black

Brightness(cd/㎡)

450nits

Contrast Ratio

800:1

Backlight

LED

Viewing Angles

160(H);150(V)

Response Time(Tr+Tf)

8ms

Touch Screen

PCAP Touch(10 points)

Light Sensor

Support

HD Camera

Optional

Dimension(VxHxT)mm

401x312.5x50.7

Operating Temperature

-30~85℃(Non-conctensation)

Storage Temperature

-30~85℃(Non-conctensation)

Relative Humidity

5~90(%RH)
