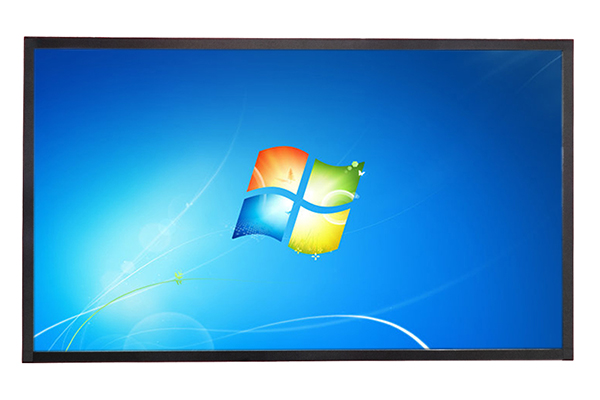

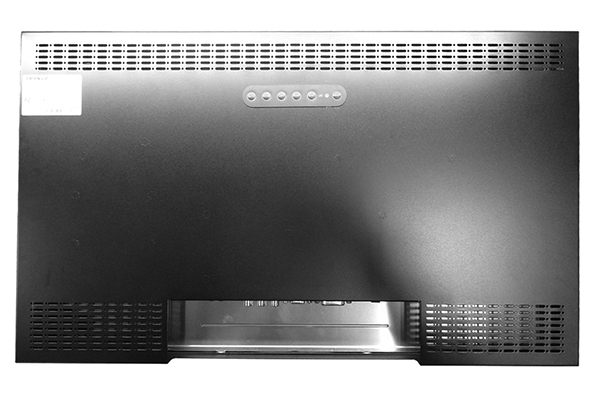

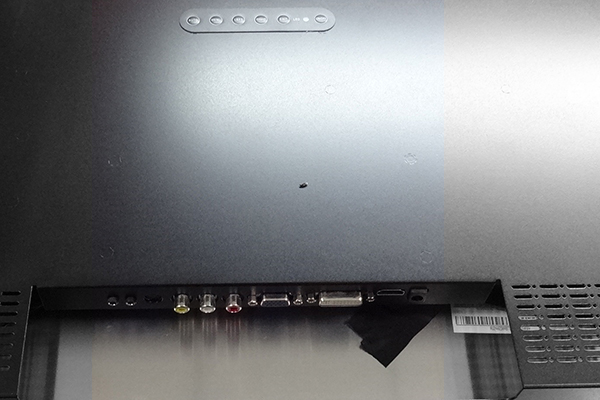

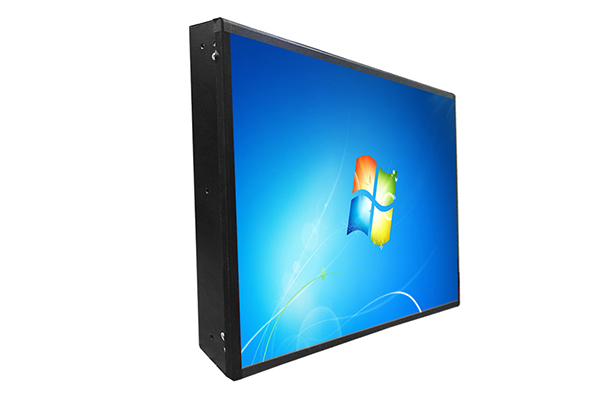

24 Inch Open Frame LCD Monitor

  • 24 Inch Open Frame LCD Monitor
  • The open frame LCD monitor AMG-24OPHA01N1 provided by Amongo is welcomed by the customers for the following benefits:
    • Branded 24 inch widescreen LCD panels with perfect image quality and wide viewing angles
    • Built with industrial-grade components for a reliable 24/7/365 operation
    • LED backlight for low power consumption to save more energy
    • Various touchscreen options like PCAP, Resistive, IR, SAW etc
    • High-end mechanical design to meet tough environmental conditions and requirements
    • Customization service as required
    Contact Us

Specifications


Model Name

AMG-24OPHA01N1

Screen Size

24"

Active Display Area (mm)

531.36 (H) x 298.89(V)

Pixel Pitch (mm)

0.27675(H) x 0.27675 (V)

Display Mode

Normally Black

Display Resolution (pixel)

1920x1080

Contrast Ratio

3000:1

Display Color

16.7M

Brightness (CD/㎡)

250

Backlight

LED

Viewing Angles (CR =10)

178 (H); 178 (V)

Response Time(Typ.Tr+Tf)

25ms

Signal Connector

VGA/DVI/HDMI/Audio

Power Consumption

DC 12V

Dimension(VxHxT)

559x326.2x46

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen(Optional)

Optional
