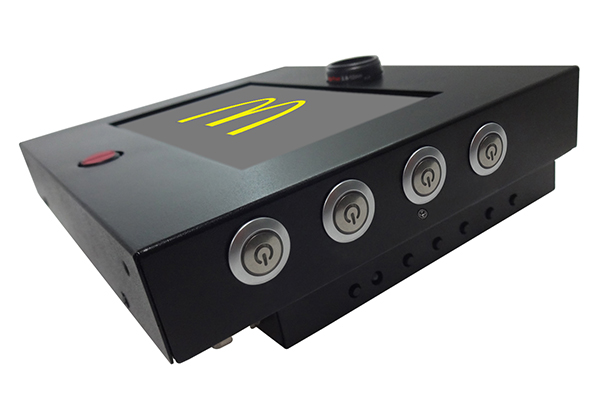

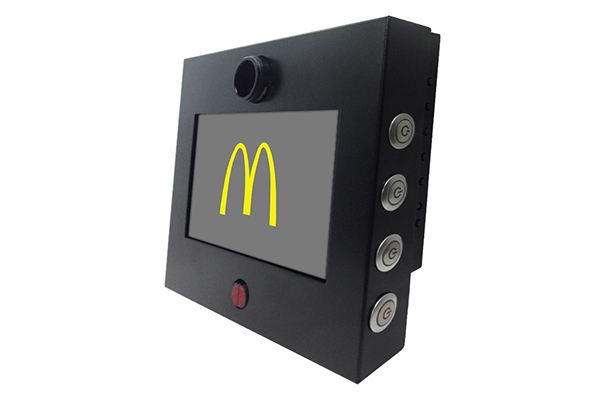

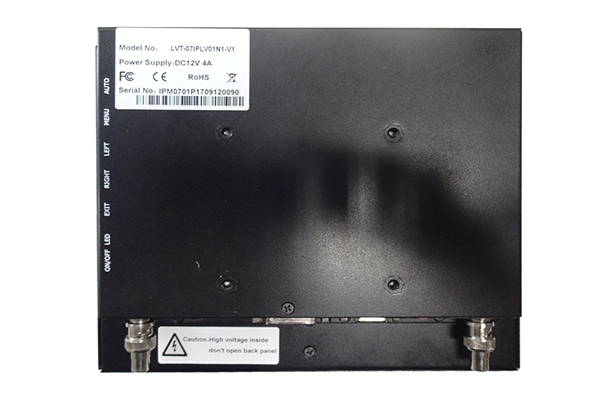

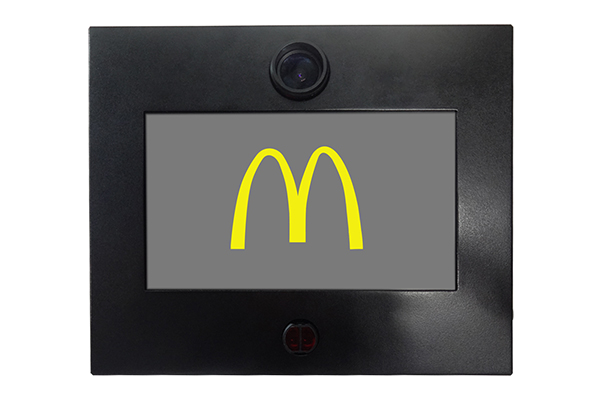

7 Inch IP65 Waterproof Lcd Monitor

  • 7 Inch IP65 Waterproof Lcd Monitor
  • The industrial LCD monitor AMG-07IPLV01T1 designed by Amongo for waterproof application with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 continuous operation;
    • Durable mechanical design to meet tough environmental requirements;
    • Touchscreen optional as required; built with motion sensor, HD camera;
    • Ingress Protection grade: IP65;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-07IPLV01T1

Screen Size

7"

Active Display Area(mm)

153.6(H)x90(V)

Pixel Pitch(mm)

0.150(H)x0.150(V)

Display Mode

Normally white

Display Color

16.2M

Display Resolution(pixel)

1024x600

Contrast Ratio

700:1

Brightness

600nits

Backlight

LED

Viewing Angles(CR=10)

160(H);130(V)

Response Time(Typ.Tr+Tf)

25ms

Touch Screen

Optional

Camera

Support

Motion Sensor

Support

Signal Connector

VGA/DVI-D/HDMI/Audio

Power Consumption

DC 12V

Dimension(VxHxT)mm

212x180x63

Operating Temperature

-20~60℃

Storage Temperature

-30~70℃

Relative Humidity

5[%RH]~90[%RH]
