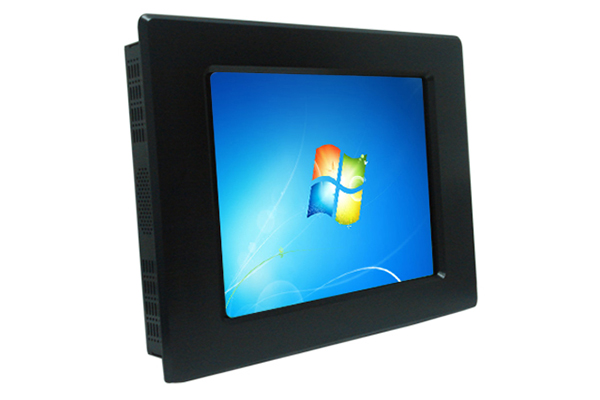

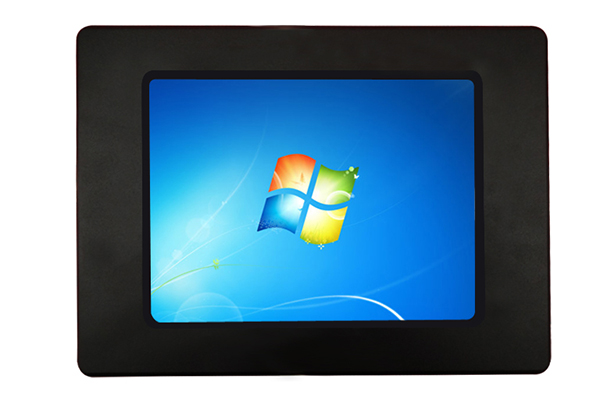

10.4 Inch Panel Mount Lcd Monitor

  • 10.4 Inch Panel Mount Lcd Monitor
  • The industrial grade panel mount LCD monitor AMG-10IPPC02T2 offered by Amongo is ideal for both industrial and commercial industries environments with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • High-end mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications


Model Name

AMG-10IPPC02T2

Screen Size

10.4"

Active Display Area (mm)

211.2 (H) x158.4 (V)

Pixel Pitch (mm)

0.264 (H) x 0.264 (V)

Display Mode

Normally white

Display Resolution (pixel)

800x600

Contrast Ratio

700:1

Display Color

16.2M/262K

Brightness (CD/㎡)

400

Backlight

LED

Viewing Angles (CR =10)

160(H)x140 (V)

Response Time(Typ.Tr+Tf)

30ms

Signal Connector

VGA/DVI

Power Consumption

DC 12V

Dimension(VxHxT)

306.6x230.1x57

Operating Temperature

-30~80℃

Storage Temperature

-30~80℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen

Resistive
