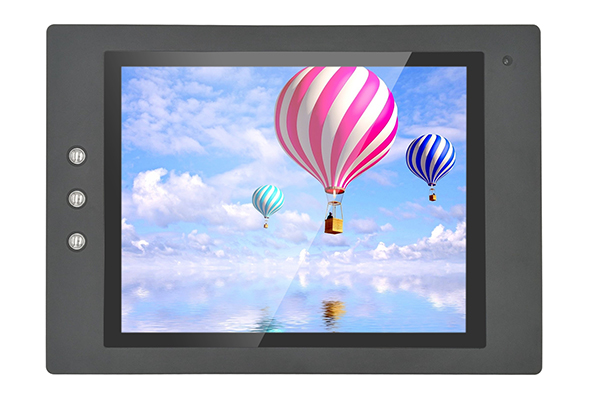

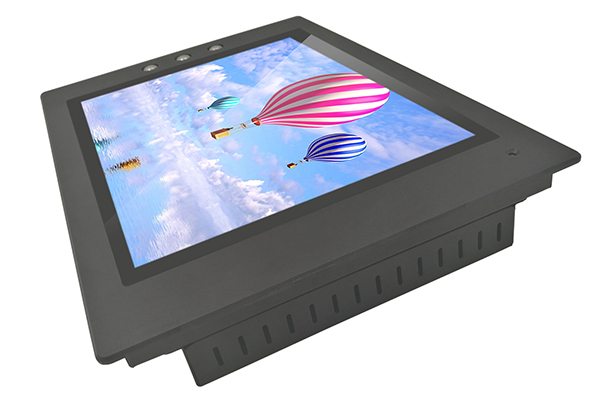

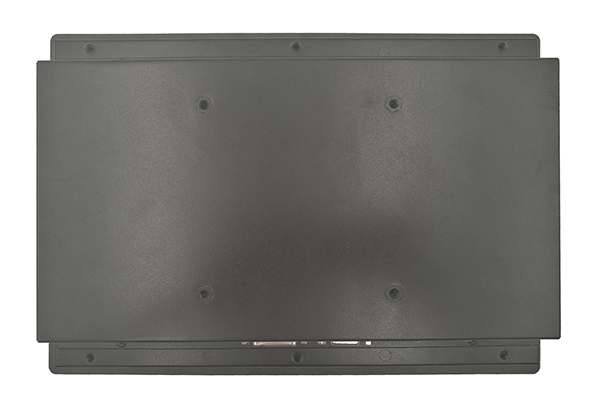

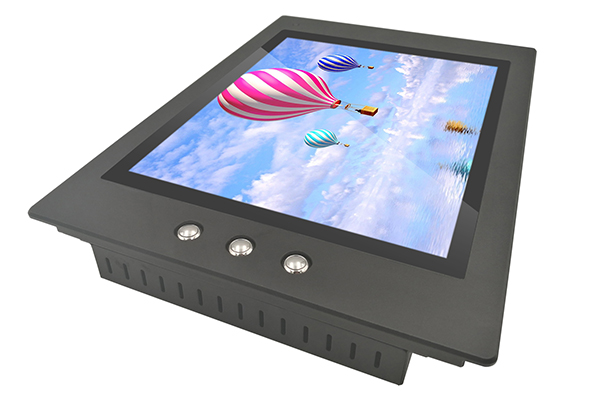

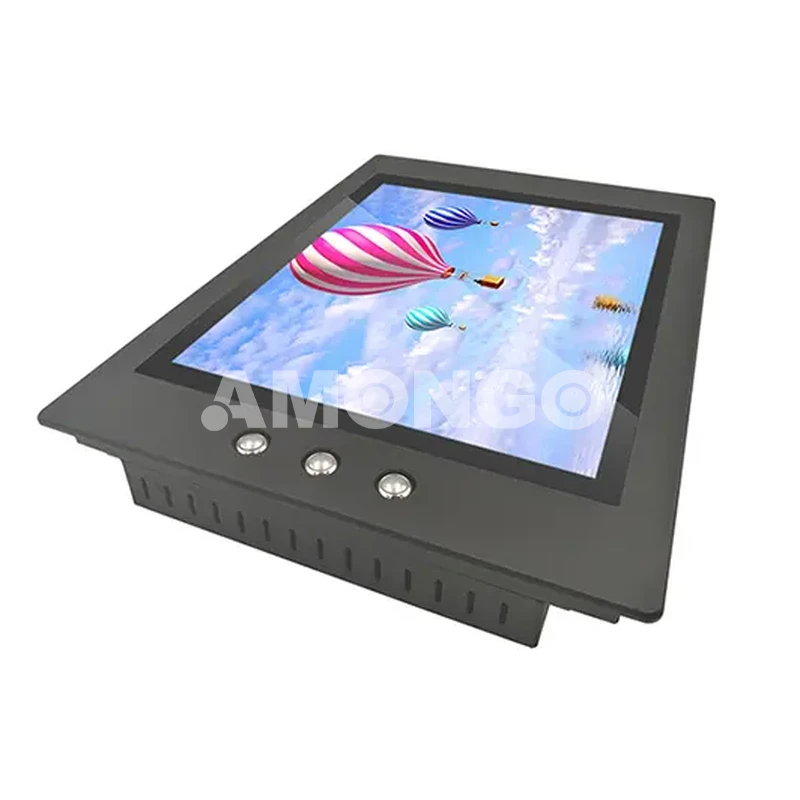

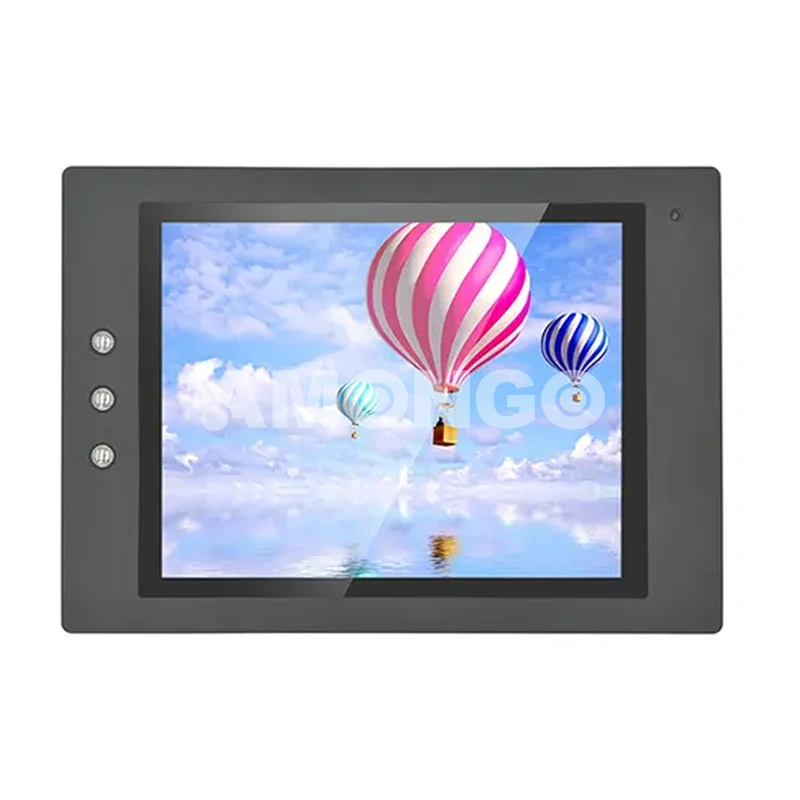

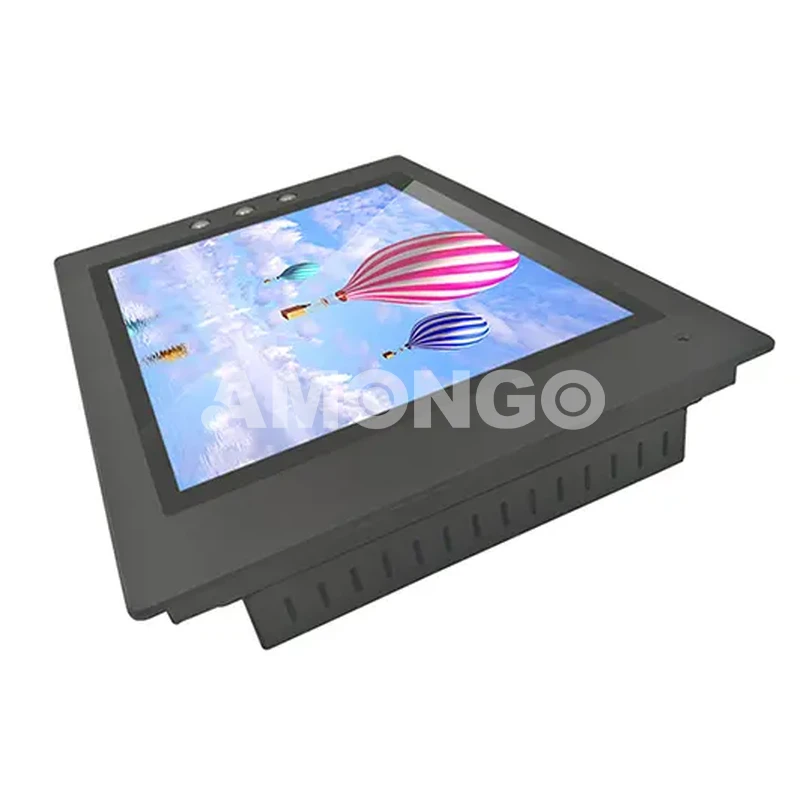

10.4 Inch Waterproof LCD Monitor

  • 10.4 Inch Waterproof LCD Monitor
  • The industrial LCD monitor AMG-10IPHJ01T1 designed by Amongo for waterproof application with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 continuous operation;
    • Durable mechanical design to meet tough environmental requirements;
    • PCAP touchscreen ; Optical bonding technology; Anti-glare glass;
    • IP65 waterproof; High brightness with light sensor for auto dimming
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-10IPHJ01T1

Screen Size

10.4"

Active Display Area(mm)

211.2(H)x158.4(V)

Pixel Pitch(mm)

0.264(H)x0.264(V)

Display Mode

Normally white

Display Color

16.2M/262K

Display Resolution(pixel)

800x600

Contrast Ratio

500:1

Brightness

1000nits(Light Sensor)

Backlight

LED

Viewing Angles(CR=10)

160(H);130(V)

Response Time(Typ.Tr+Tf)

35ms

Touch Screen

PCAP Touch(10 points)

Light Sensor

Support

Optical Bonding

Support

Signal Connector

VGA/DVI-D

Power Consumption

DC 12V

Touch Controller

USB

Dimension(VxHxT)mm

295x205x40

Operating Temperature

-20~70℃

Storage Temperature

-20~70℃

Relative Humidity

5[%RH]~90[%RH]
