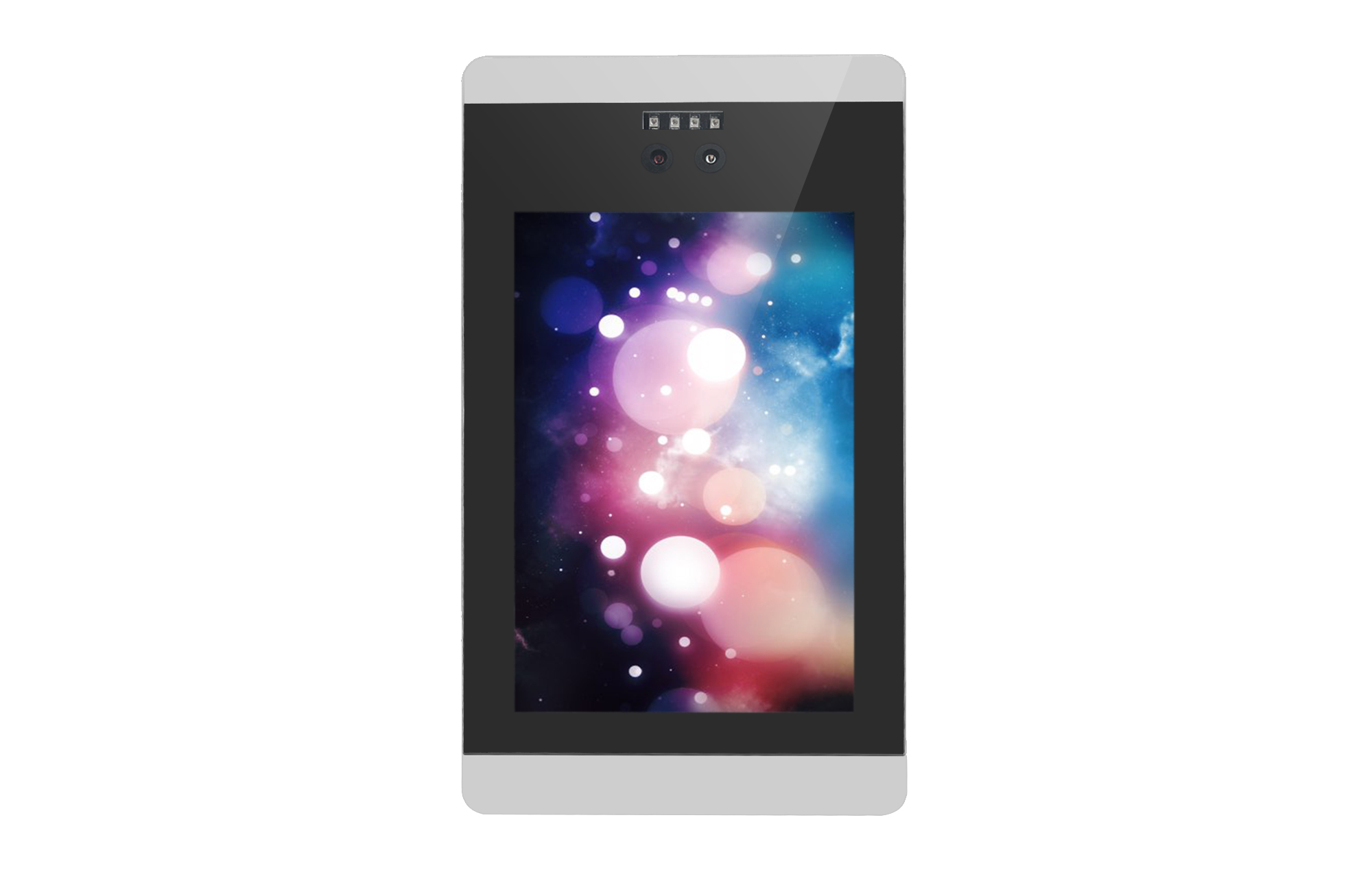

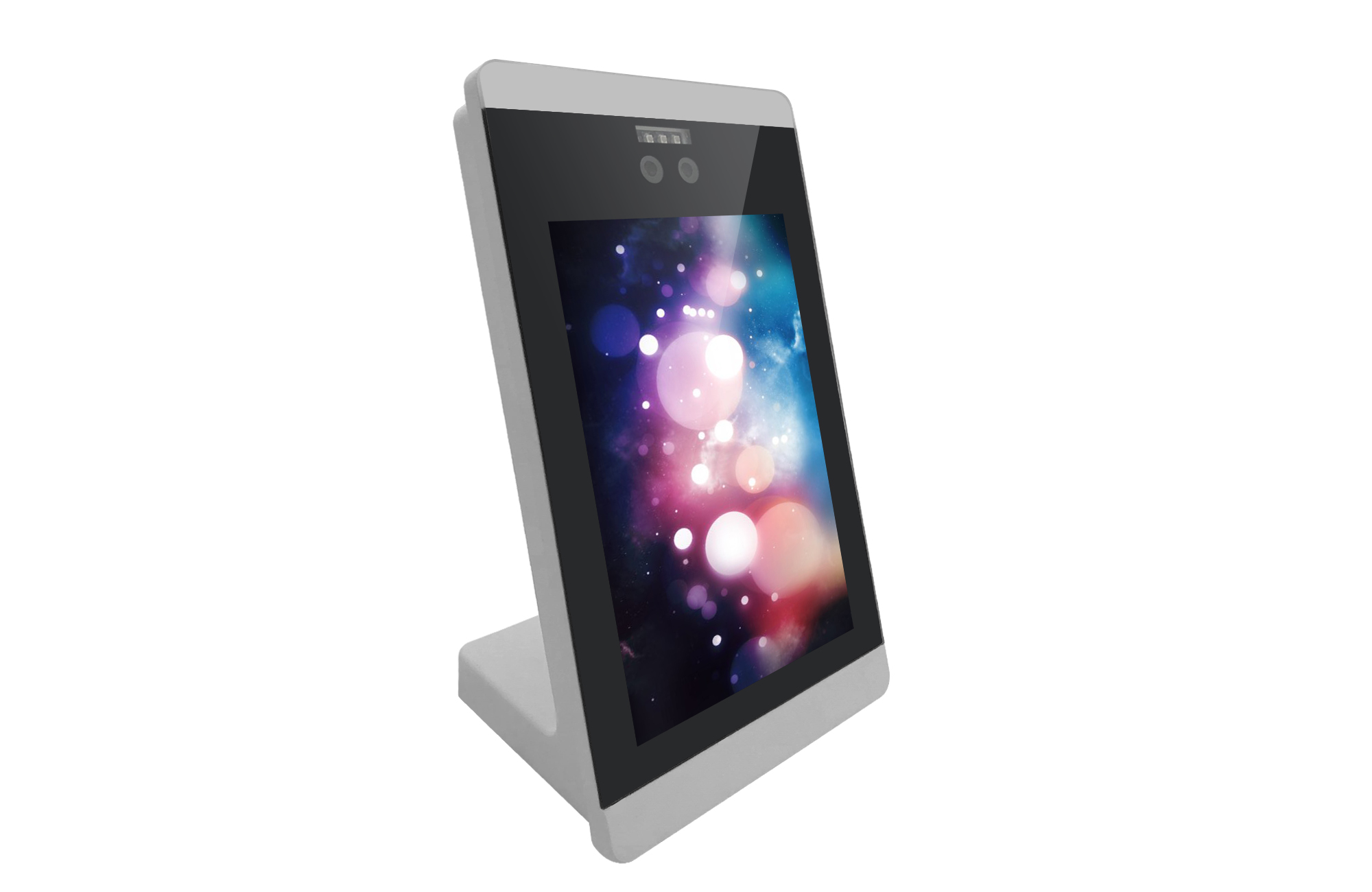

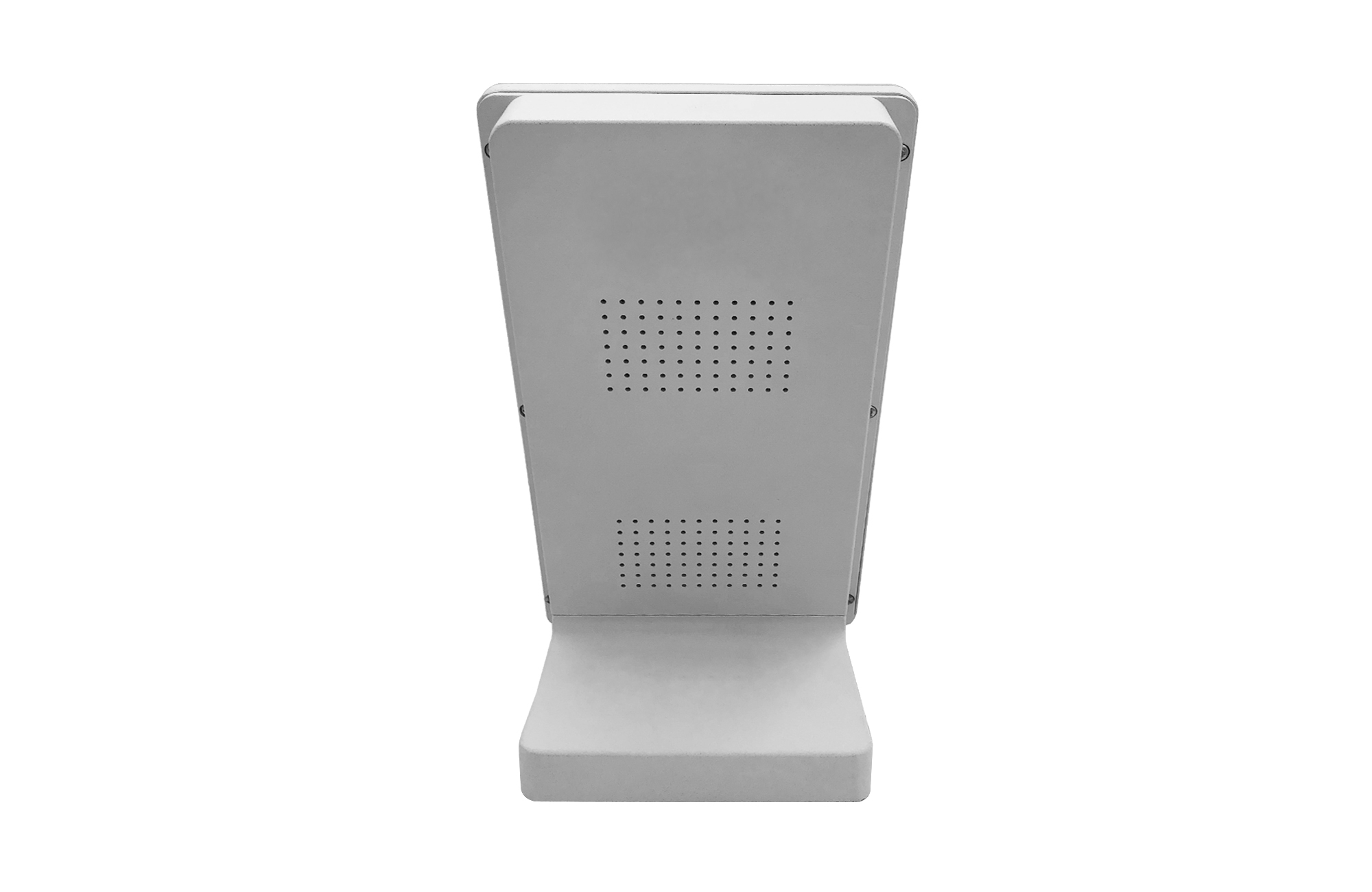

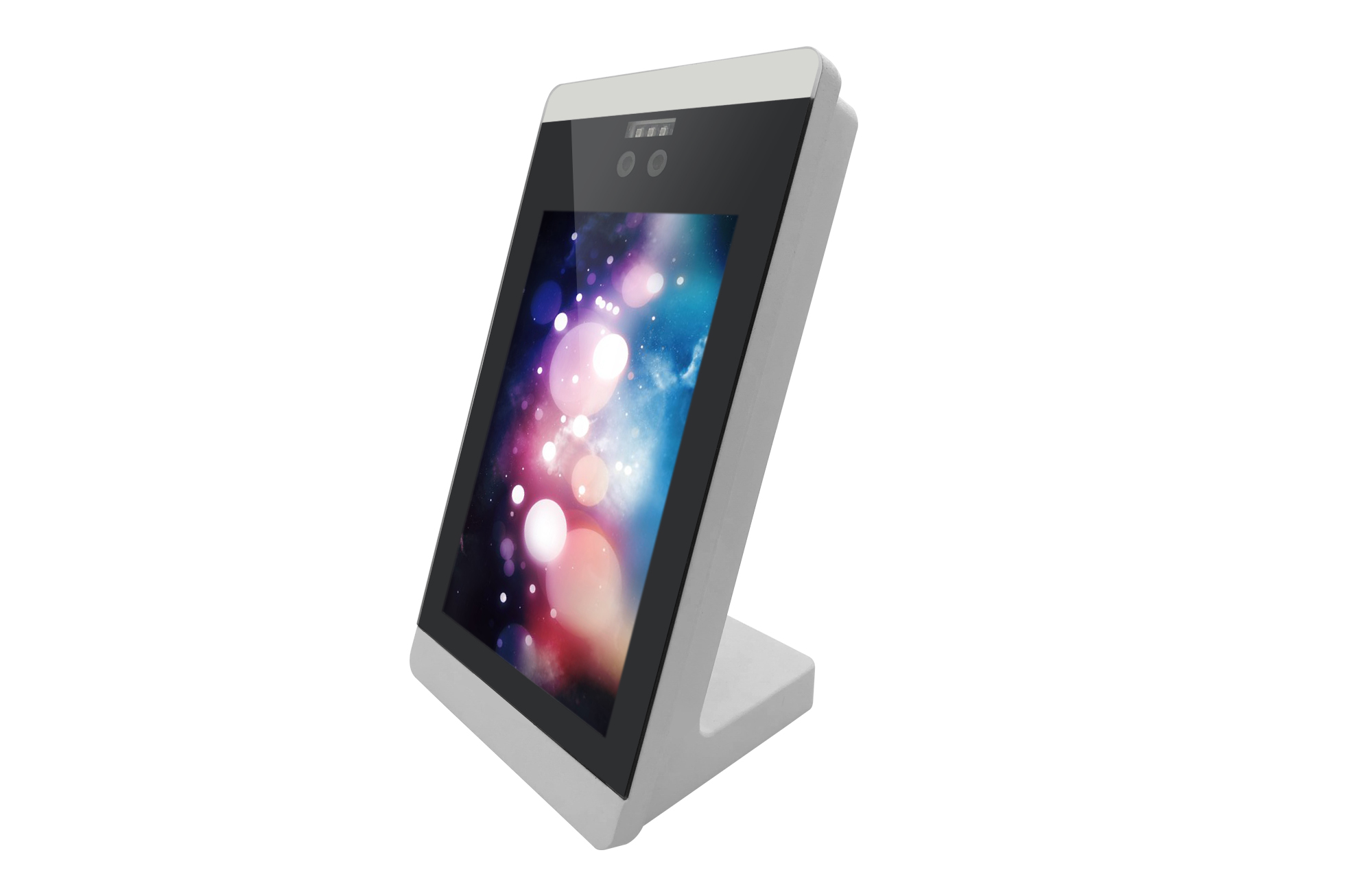

8 Inch Android All-in-one Panel PC

  • 8 Inch Android All-in-one Panel PC
  •  The 8 inch android PCAP touch panel pc AMG-08PPC01T5 from Amongo is carrying with the following benefits:

    • Branded LCD panels with perfect image quality and wide viewing angles to assure a good visual effect;

    • High-quality industrial-grade components built inside for 24/7 long time operation without failures.

    • 8 inch PCAP multi-touchscreen panel with Binocular camera for face recognition;

    • Up-to-date Android main board support applications related with IIoT;

    • Resistance to extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.;

    • Fully tailor-made service offered according to clients requirements;

    Contact Us

Specifications

Model Name

AMG-08PPC01T5

CPU

RK3399 Dual Cortex A72+Quad core A53 64bit CPU

RAM

2GB(4GB Optional)

ROM

16GB(8GB/32GB/64GB optional)

USB Port

1 x USB 2.0

RS232 Port

1 x RS232

LAN

1x 10/100/1000 Base-T Gigabit Ethernet

OS

Android 7.1

3G/4G

Optional

WiFi

2.4G dual-band WiFi dual antenna

Screen Size

8"

Active Area(mm)

172.22(H)x109.64(V)

Pixel Pitch(mm)

0.15825(H)x0.05275(V)

Display Resolution

1280x800

Display Color

Normally Black

Brightness

250nits

Contrast Ratio

900:1

Viewing Angles

170(H);170(V)

Response Time(Tr+Tf)

25ms

Backlight

LED

Touch Screen

PCAP Touch(10 points)

HD Camera

Optional

Dimension(VxHxT)mm

140x248.2x37

Operating Temperature

-10~50℃(Non-condensing)

Storage Temperature

-20~60℃(Non-condensing)

Relative Humidity

5~90(%RH)
