12.1 Inch Vesa/Wall Mount LCD Monitor

  • 12.1 Inch Vesa/Wall Mount LCD Monitor

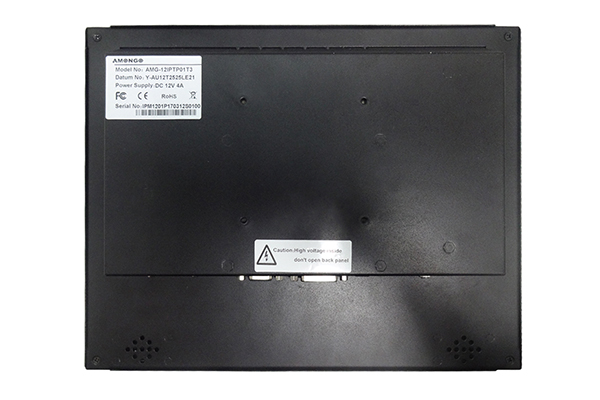

  • The industrial grade wall mount LCD monitor AMG-12IPTP01T1 made by Amongo features a full metal enclosure and mount using VESA holes in the rear of the design with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • Durable mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-12IPTP01T1

Screen Size

12.1"

Active Display Area (mm)

245.76(H) x 184.32(V)

Pixel Pitch (mm)

0.24(H)x0.24(V)

Display Mode

Normally white

Display Resolution (pixel)

1024x768

Contrast Ratio

700:1

Display Color

16.2M/262K

Brightness (CD/㎡)

500

Backlight

LED

Viewing Angles (CR =10)

160(H)X160(V)

Response Time(Typ.Tr+Tf)

35ms

Signal Connector

VGA/DVI/DC2.0

Power Consumption

DC 12V

Dimension(VxHxT)

300X240X49

Operating Temperature

-30~80℃

Storage Temperature

-30~80℃

Relative Humidity

5(%RH)~90(%RH)
