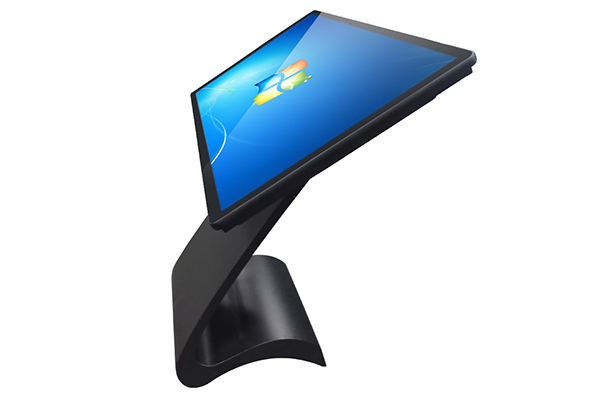

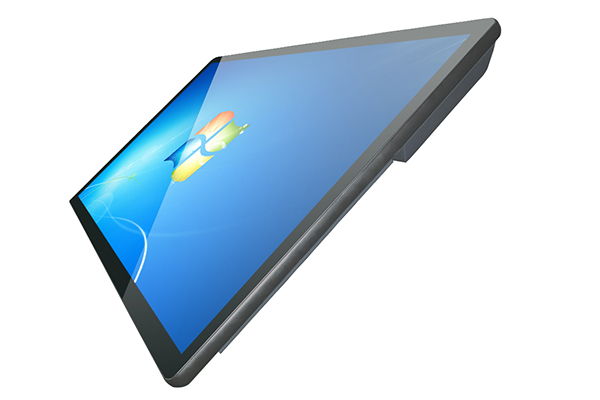

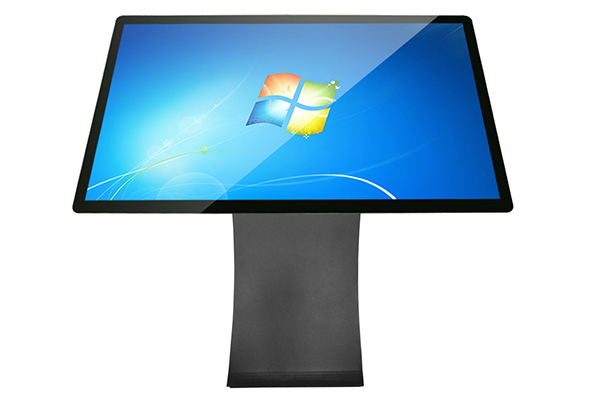

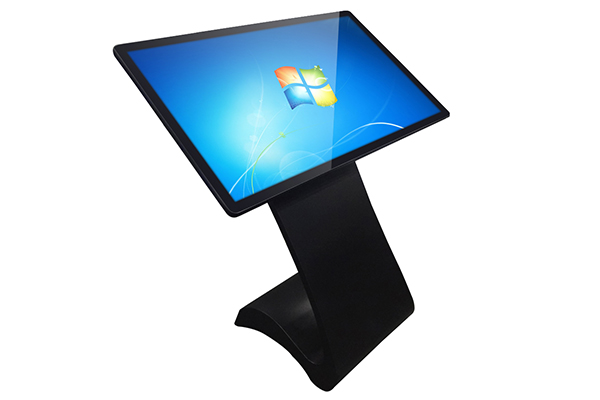

43 Inch Bezel-Free PCAP Industrial Panel PC

  • 43 Inch Bezel-Free PCAP Industrial Panel PC
  • The 43 inch industrial panel pc AMG-43PPC01T1 offered by Amongo is designed for customer with the following characters:
    • Flat-screen design with high-end branded TFT LCD panels with LED backlight, lower power consumption, better image effect and wider view angles;
    • High performance Intel processor with efficient fan-less cooling system to reduce both the lifting of dust and maintenance costs for customers;
    • Industrial-grade components adopted to ensure 24/7 continuously running;
    • Bezel-less pcap touchscreen, rapid touch response, better user experience;
    • IP65 front protection, dustproof, built to enhance and manage all industrial processes;
    • Option of tempered glass for vandal proof function;
    • Robust casing and structure design to withstand the most harsh conditions, anti-vibration, anti-shock;
    • Different mounting options: VESA mount, embedded mount, floor standing etc.
    • Supporting various operation system of Windows, Android, Linux etc.;
    • Meet with reliability test for demanding industrial applications;
    • Passed necessary certificates like UL,CE, RoHS, and ISO 9001 and 14001 etc.;
    Contact Us

Specifications

Model Name

AMG-43PPC01T1

CPU

Intel i5-3337U CPU @ 1.80GHz

RAM

DDRIII 8GB

SSD

128G

VGA ports

2x VGA ports

HDMI ports

2x HDMI ports

USB 2.0 ports

Default 4xUSB 2.0

Ethernet

1x 10/100/1000BASE-T Gigabit Ethernet

Audio

Mic-in, Line-out

WiFi

802.11n WiFi

Screen Size

43"

Active Area(mm)

943.78(H)x532.02(V)

Display Resolution

1920x1080

Display Color

16.7M Colors

Brightness(cd/㎡)

300

Contrast Ratio

1200:1

Viewing Angles

178(H);178(V)

Response Time

6ms

Screen Size

43"

Touch Screen

PCAP Touch(10 points)

K-type floor stand

Support

L-type floor stand

Support

Wall-mounted

Support

Certificate

UL Approved

Operating Temperature

0~50℃(non-condensation)

Storage Temperature

-10~60℃(non-condensation)

Relative Humidity

5~90(%RH)
