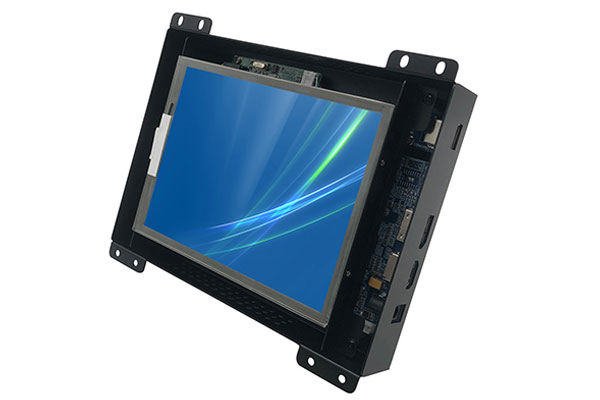

6.5 Inch Rack Mount Industrial Touch LCD Monitor

  • 6.5 Inch Rack Mount Industrial Touch LCD Monitor
  • The open frame industrial grade rack mount LCD monitor AMG-06IPPR01T1 offered by Amongo is a good choice for application in demanding environment with advantages as below:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7 long time operation;
    • Touchscreen / tempered glass is optional such as PCAP, Resistive etc
    • Easy-to-install rack mounting enclosures and embedded install;
    • High brightness / sunlight readable;
    • Stable quality through high reliability testing;
    • Customization service available;
    Application: Kiosks,
    Contact Us

Specifications

Model Name

AMG-06IPPR01T1

Screen Size

6.5"

Active Display Area(mm)

132.48(H)x99.36(V)

Pixel Pitch(mm)

0.207(H)x0.207(V)

Display Mode

Normally White

Display Resolution(pixel)

640x480

Contrast Ratio

16.2M/262K

Display Color

600:1

Brightness

800nits

Backlight

LED

Viewing Angles(CR=10)

160(H);140(V)

Response Time(Typ.Tr+Tf)

25ms

Touch Screen

Resistive touch(5 wire)

Light Sensor

Optional

Tempered glass

Optional

Dimension(VxHxT)

199.5x170x36.2

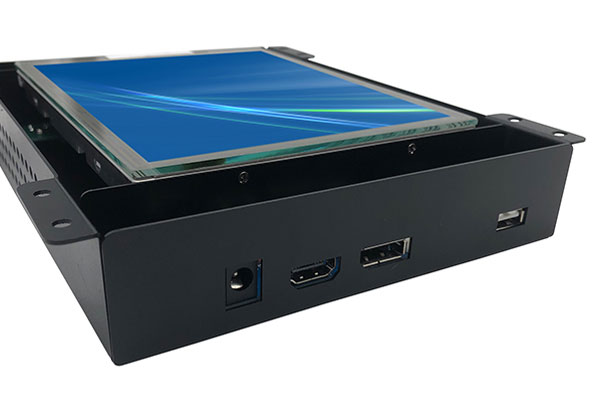

Signal Connector

HDMI/DP

Power Input

DC 12V

Touch Controller

USB

Operating Systems Support

Windows 7/8/10 / Linux(optional)

Operating Temperature

-30~80℃(non-condensation)

Storage Temperature

-30~80℃(non-condensation)

Relative Humidity

5~90(%RH)
