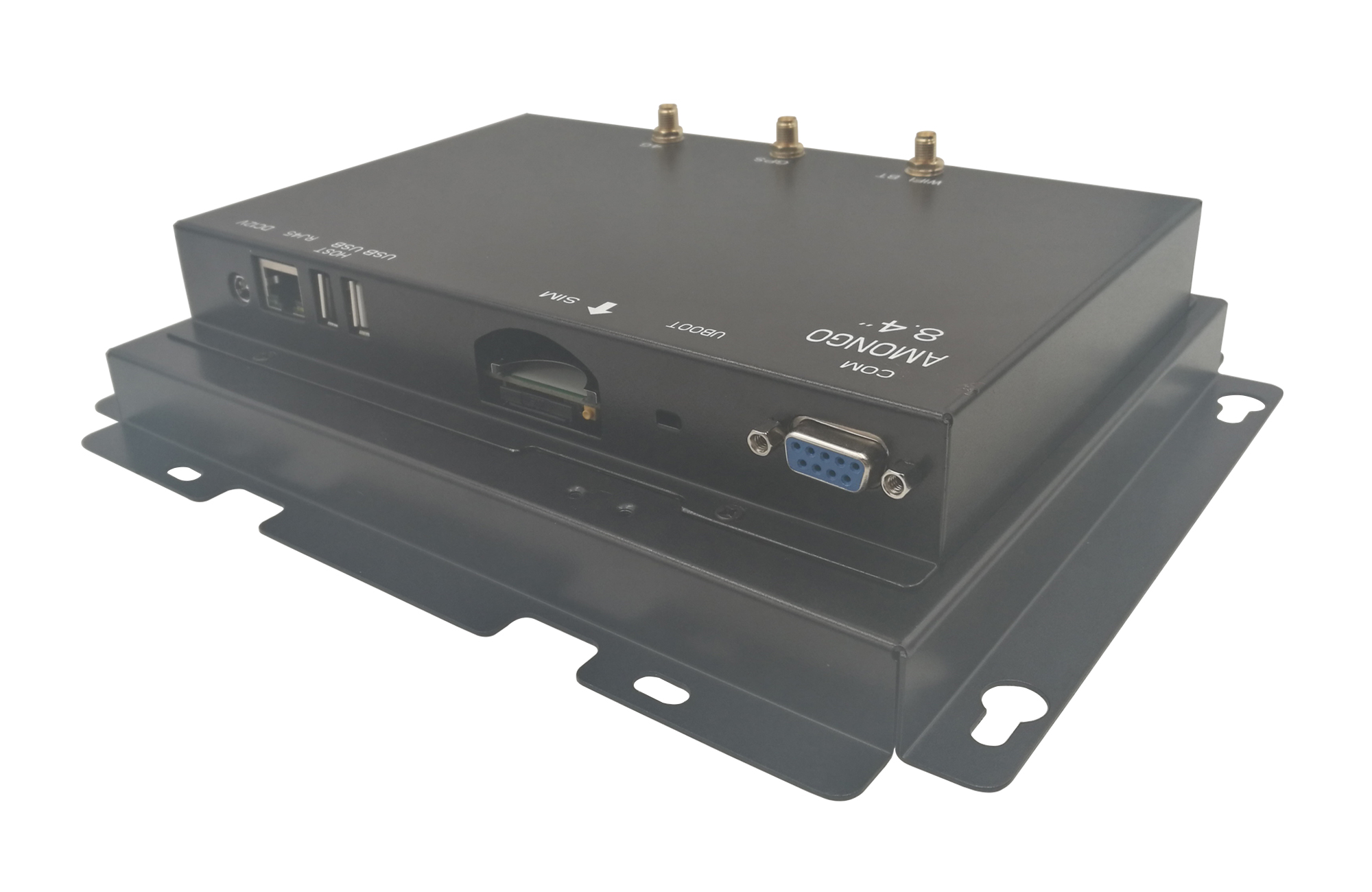

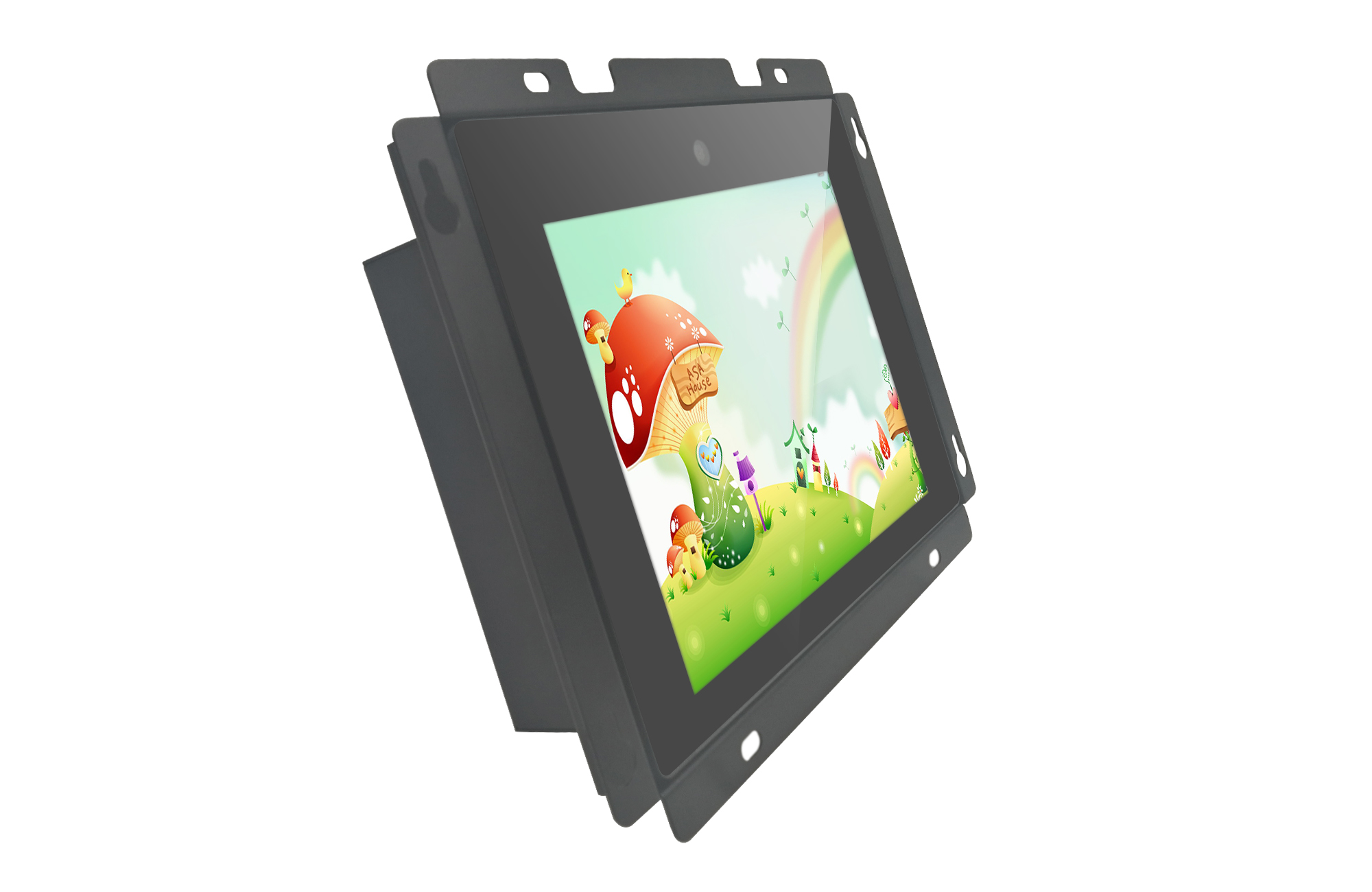

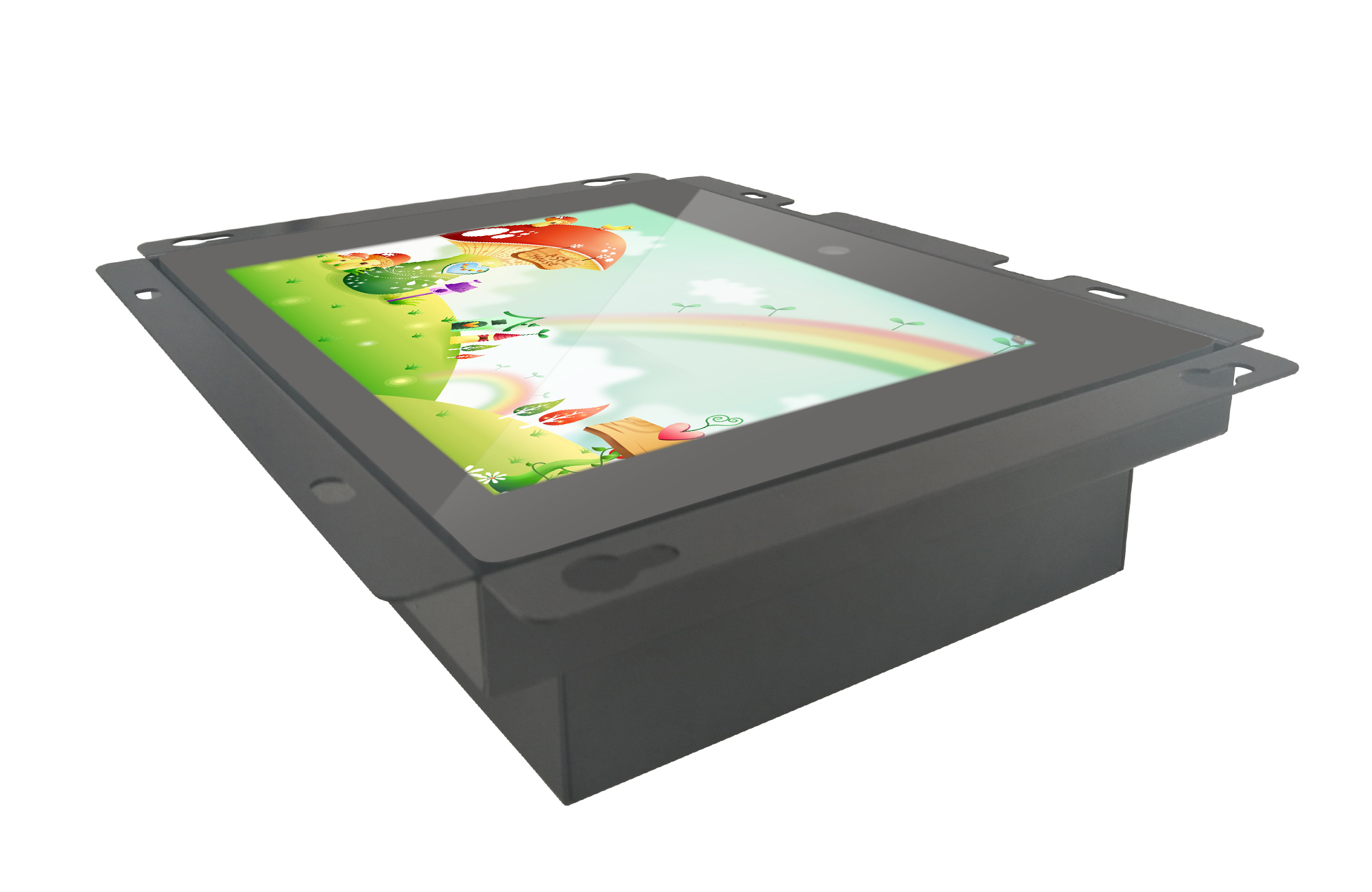

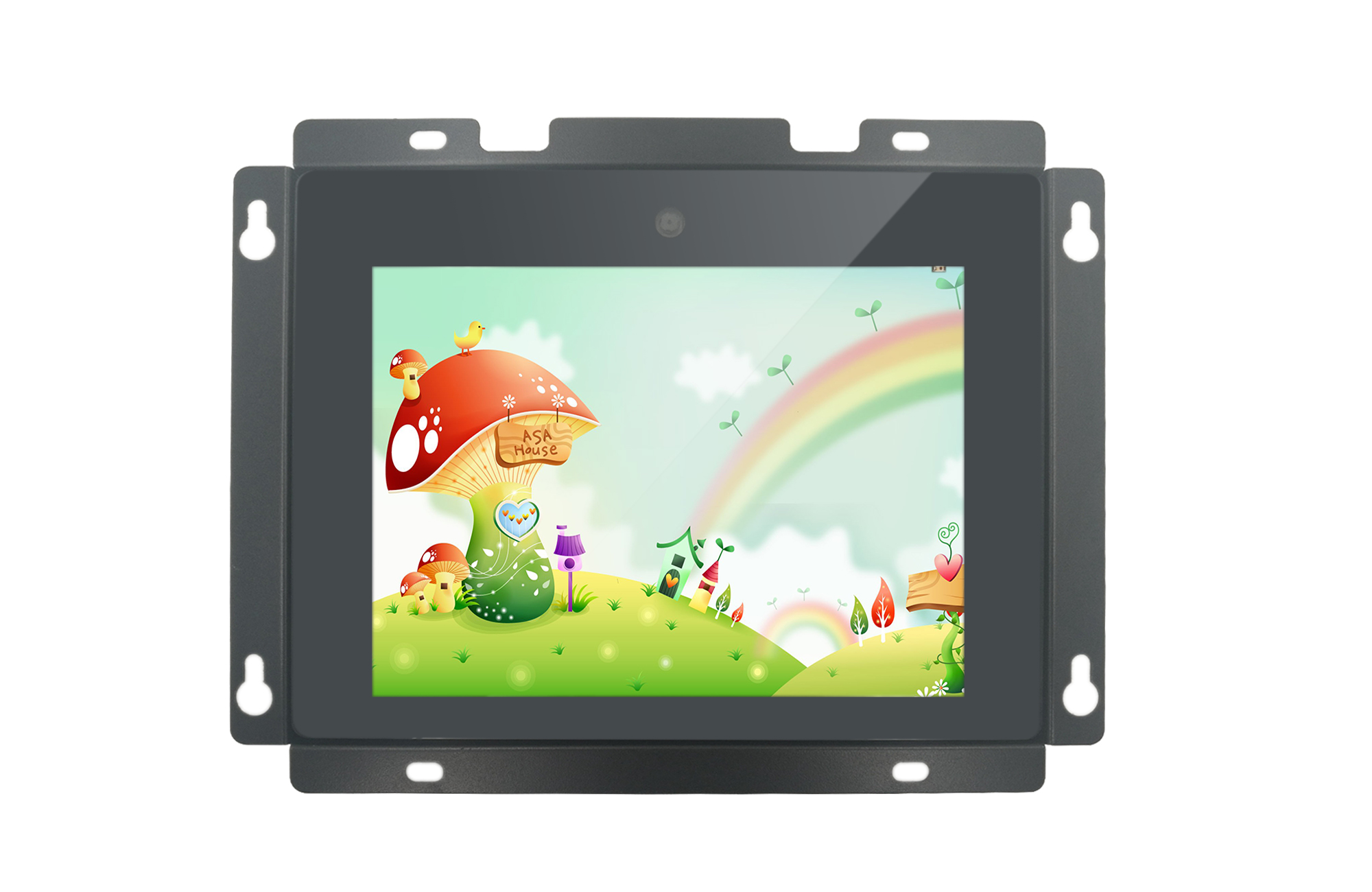

8.4 Inch Android Based All-In-One Panel PC

  • 8.4 Inch Android Based All-In-One Panel PC
  • The 8.4 inch android based all-in-one panel pc AMG-08PPC01T1 from Amongo is built with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles to assure a good visual effect;
    • High-quality industrial-grade components used to ensure a trouble-free operation;
    • 8.4 inch 10-points PCAP touchscreen panel with HD camera;
    • 4G/3G, Ethernet, WiFi, GPS, Bluetooth functions optional;
    • Light sensor added for energy saving and brightness auto-dimming;
    • Front IP65 waterproof, dustproof, easy for installation and maintenance;
    • Up-to-date Android main board support applications related with IIoT;
    • Resistance to extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.;
    Contact Us

Specifications

Model

AMG-08PPC01T1

CPU

RK3368 Eight Core ARM-A53 1.5GHz

RAM

2GB(4GB optional)

ROM

8GB(16/32GB optional)

OS

Android 5.1.1

VGA Port

1 x VGA

USB Ports

2 x USB

Ethernet

4G/3G, Ethernet, WiFi, GPS, Bluetooth optional

SD Card

Support

HD Camera

Support

Audio

Mic-in, Line-out

Screen Size

8.4"

Active Area(mm)

170.4(H)x127.8(V)

Pixel Pitch(mm)

0.213(H)x0.213(V)

Display Resolution

800x600

Display Color

Normally White

Brightness(cd/㎡)

350nits (Light Sensor)

Contrast Ratio

600:1

Backlight

LED

Viewing Angles

160(H);140(V)

Response Time(Tr+Tf)

16ms

Touch Screen

PCAP Touch(10 points)

Light Sensor

Support

Dimension(VxHxT)mm

443.2x387x45.5

Operating Temperature

-20~70℃(Non-conctensation)

Storage Temperature

-30~80℃(Non-conctensation)

Relative Humidity

5~90(%RH)
