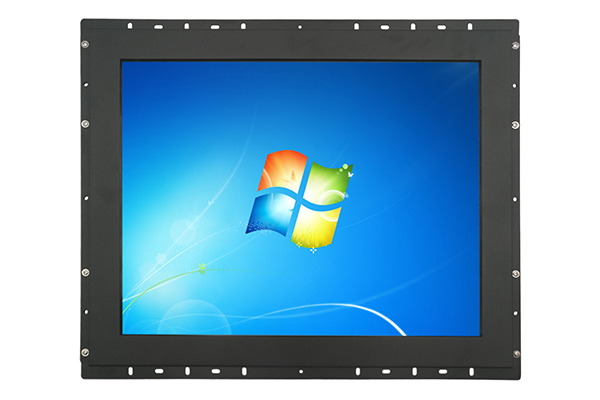

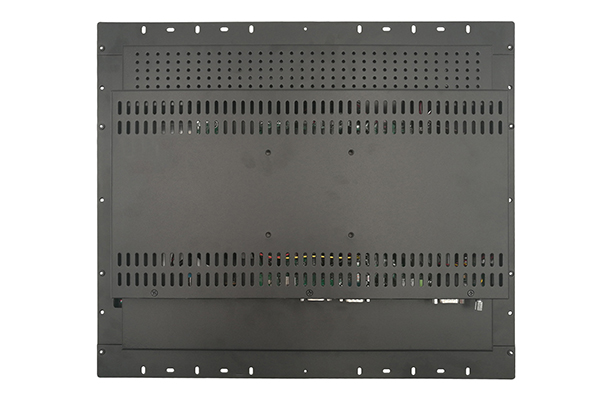

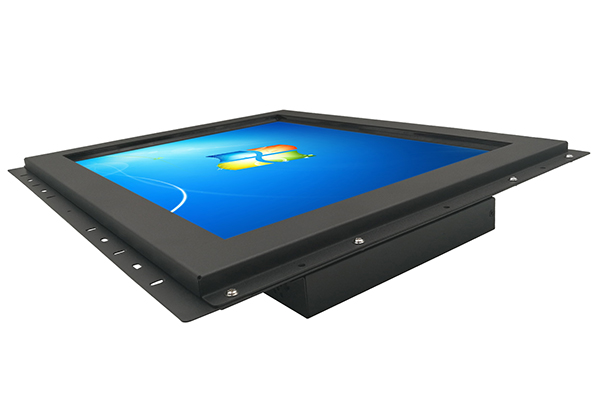

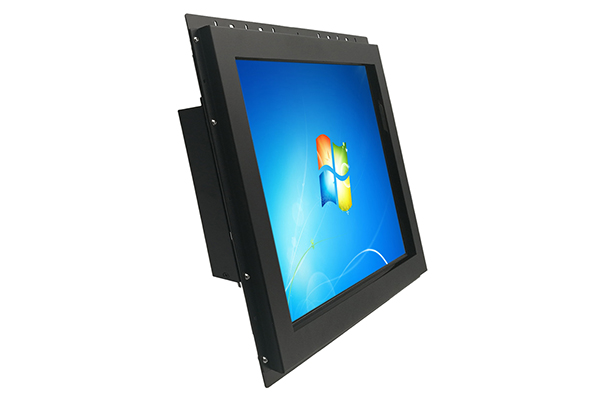

17 Inch VESA Wall Mount Industrial Panel PC

  • 17 Inch VESA Wall Mount Industrial Panel PC
  • The industrial grade wall mount panel computer AMG-17PPC02T3 made by Amongo comes with the following advantages:
    • Branded industrial grade LCD panels with perfect image quality and wide viewing angles;
    • Powered by reliable Intel processor and other industrial-grade components adopted for a reliable 24/7 continuously operation;
    • Durable mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Stable quality, high reliability and long lifetime even in harsh conditions
    • Tailor-made solution according to client requirements;
    Contact Us

Specifications

Model Name

AMG-17PPC02T3

CPU

Intel ® Bay Trail J1900 Quad Core 2.0GHz

RAM

DDR3L 1333/1600MHz 2GB

SSD

16GB(32/64GB optional)

VGA port

1 x VGA port

RS232 port

1 x RS232

COM port

1 x COM port

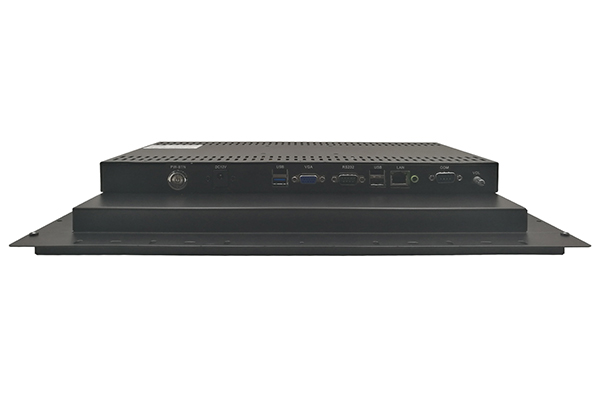

USB ports

3xUSB 2.0 ;  1 x USB 3.0

LAN

1x10/100/1000Base-T Gigabit Ethernet

Screen Size

17"

Active Area(mm)

337.920(H)x270.336(V)

Pixel Pitch(mm)

0.264(H)x0.264(V)

Display Resolution

1280x1024

Display Color

16.7M

Brightness(cd/㎡)

350nits

Contrast Ratio

1000:1

Viewing Angles

170(H);170(V)

Response Time(Tr+Tf)

5ms

Touch Screen

IR Touchscreen

Tempered glass

Optional

Dimension(VxHxT)mm

425x364x60

Operating Temperature

-30~85℃(not clotted)

Storage Temperature

-30~85℃(not clotted)

Relative Humidity

5~90(%RH)
