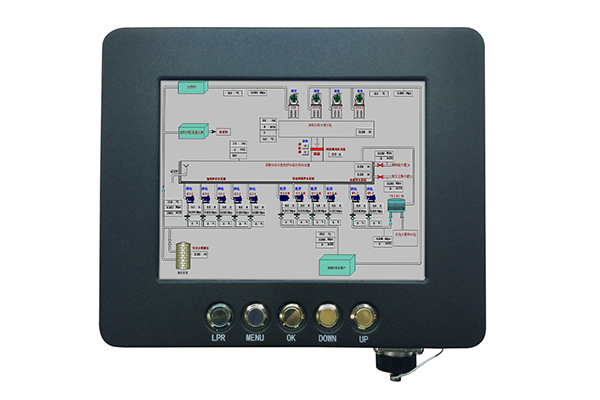

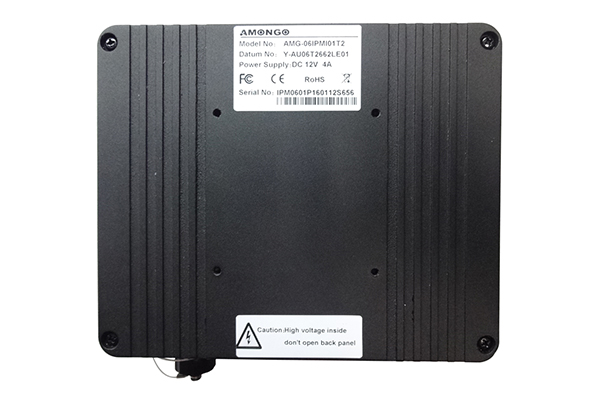

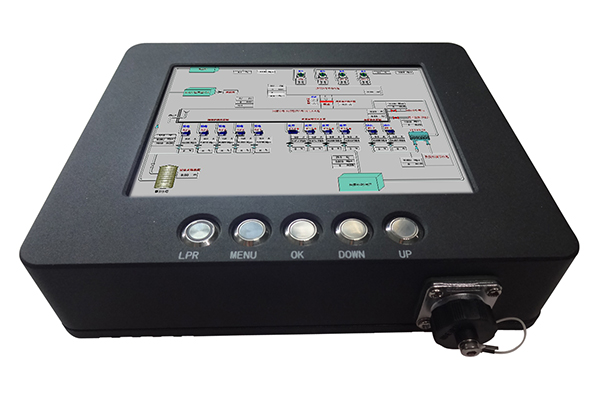

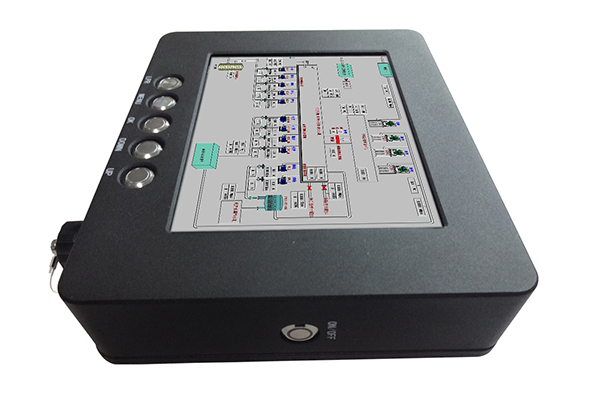

6.5 Inch IP67 Waterproof LCD Monitor

  • 6.5 Inch IP67 Waterproof LCD Monitor
  • The industrial LCD monitor AMG-06IPMI01T2 designed by Amongo for waterproof application with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 continuous operation;
    • Durable mechanical design to meet tough environmental requirements;
    • 5-Wire Resistive touchscreen for harsh operation environment;
    • Ingress Protection grade: IP67; -30-85 ℃ wide operation temperature range;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-06IPMI01T2

Screen Size

6.5"

Active Display Area (mm)

132.48(H)x99.36(V)

Pixel Pitch (mm)

0.207(H)x0.207(V)

Display Mode

Normally White

Display Resolution (pixel)

640x480

Contrast Ratio

600:1

Brightness (cd/㎡)

800

Backlight

LED

Viewing Angles (CR =10)

160Hx140V

Response Time(Typ.Tr+Tf)

25ms

Signal Connector

WeiPu WY28-24(VGA)

Power Consumption

DC 12V/24V

Dimension(VxHxT)

192x160x45

Ingress Protection

IP67

Operating Temperature

-30~80℃

Storage Temperature

-30~80℃

Relative Humidity

5[%RH]~90[%RH]
