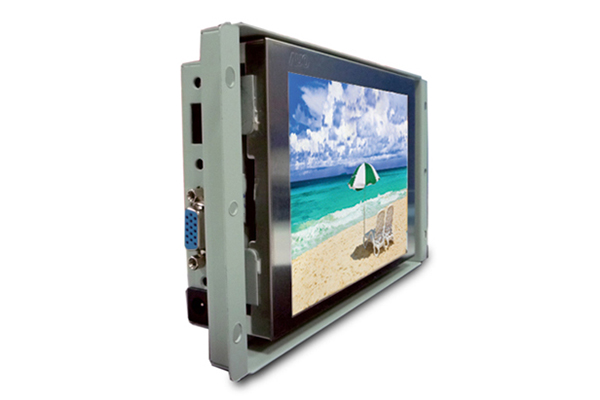

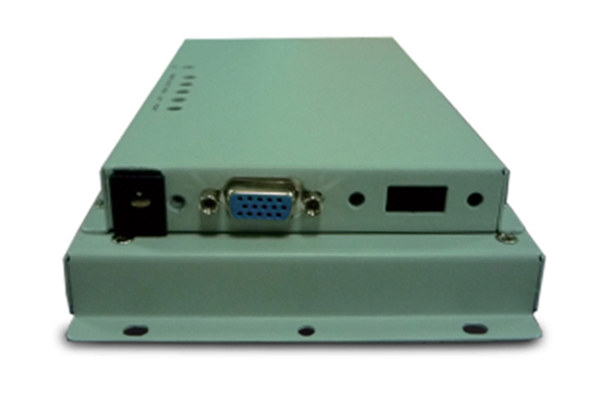

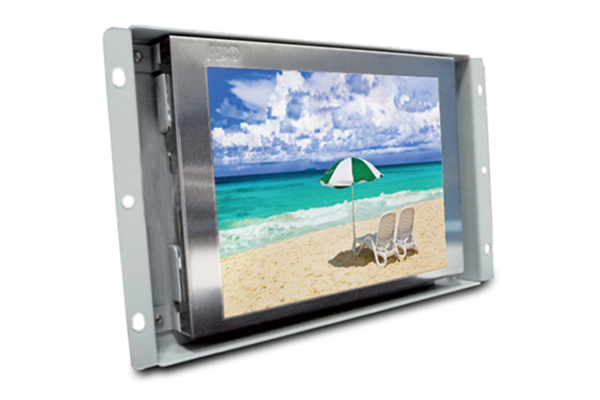

5.7 Inch Rack Mount LCD Monitors

  • 5.7 Inch Rack Mount LCD Monitors
  • The industrial grade rack mount LCD monitor AMG-06OPSK01N1 offered by Amongo is a good choice for application in demanding environment with advantages as below:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
    • Touchscreen is optional such as PCAP, Resistive etc
    • Robust mechanical design with Aluminum for metal IP65/NEMA 4 front panel to meet tough environmental conditions and requirements;
    • Easy-to-install with rack mounting enclosures.
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-06OPSK01N1

Screen Size

5.7"

Active Display Area (mm)

115.2(H) x 86.4(V)

Pixel Pitch (mm)

0.18x0.18

Display Mode

Normally white

Display Resolution (pixel)

640x480

Contrast Ratio

800:1

Display Color

262K

Brightness (CD/㎡)

700

Backlight

LED

Viewing Angles (CR =10)

160(H)X140(V)

Response Time(Typ.Tr+Tf)

25ms

Signal Connector

VGA

Power Consumption

DC 12V

Dimension(VxHxT)

188X114X36.3

Operating Temperature

-30~80℃

Storage Temperature

-30~80℃

Relative Humidity

5(%RH)~90(%RH)
