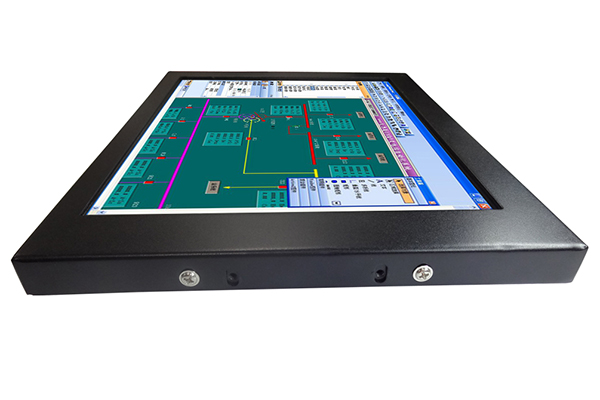

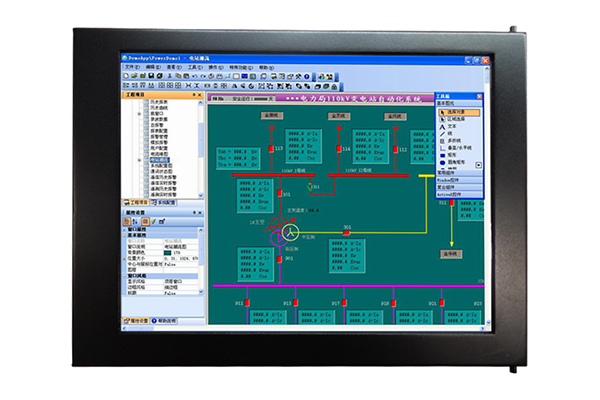

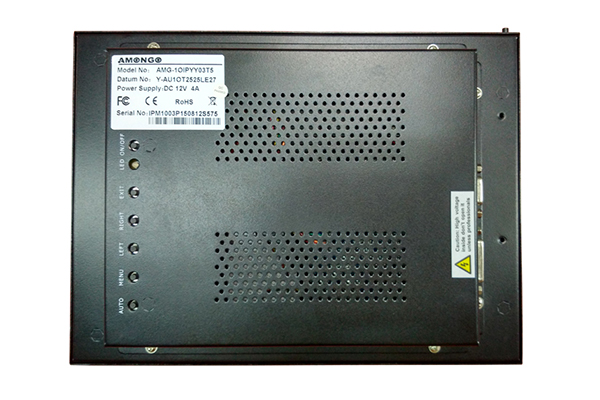

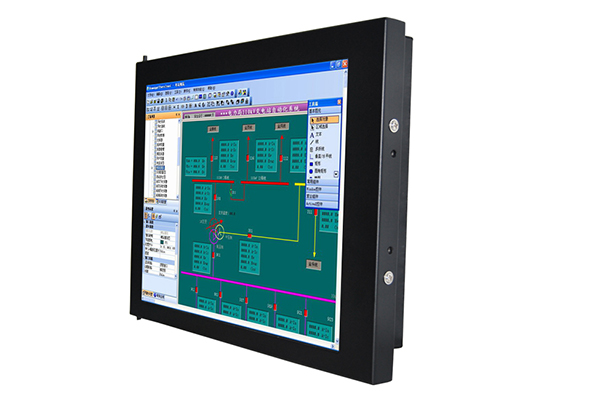

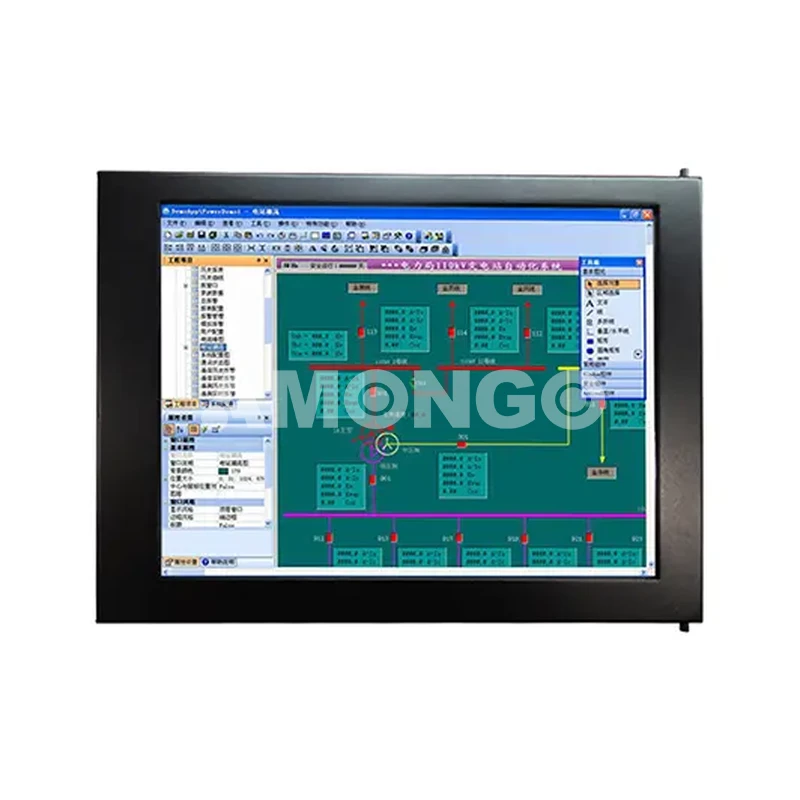

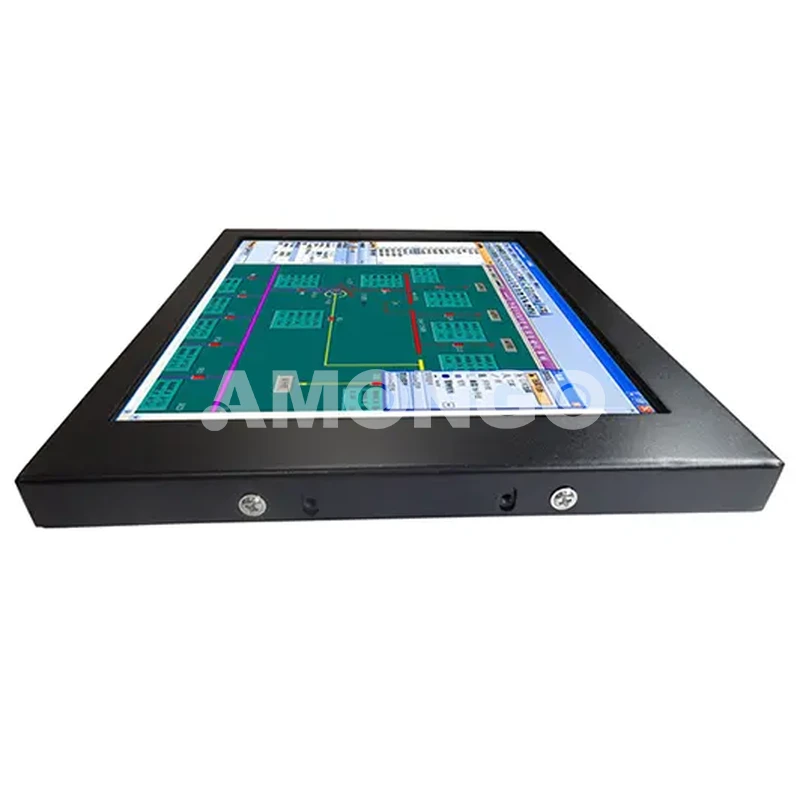

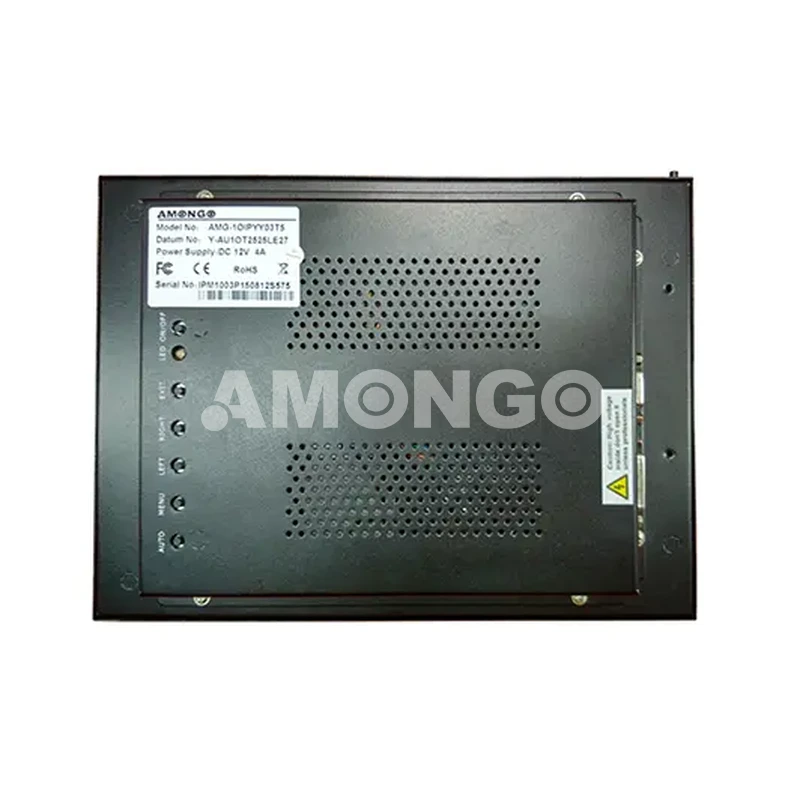

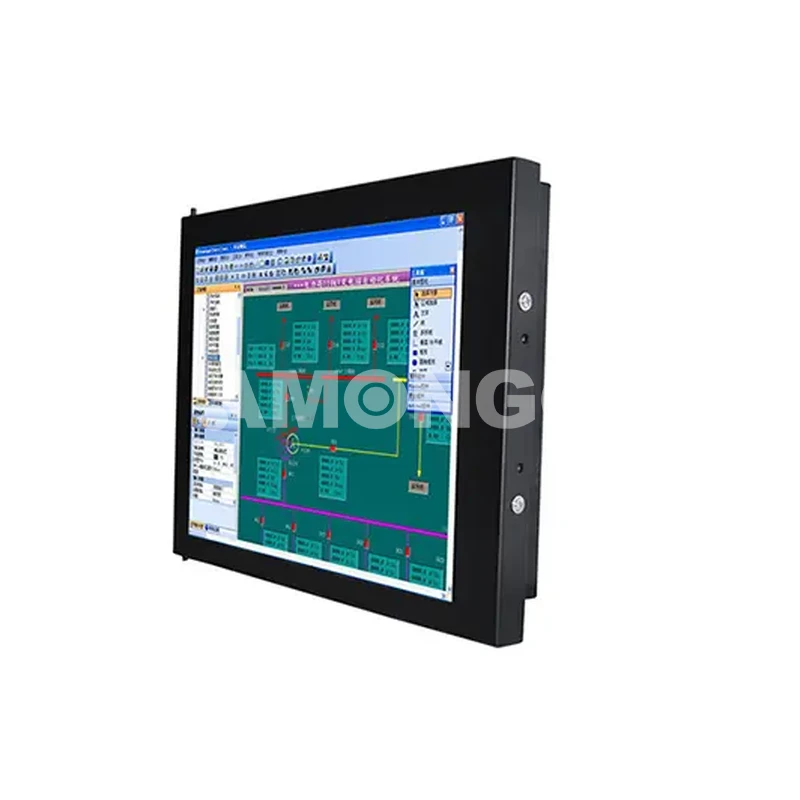

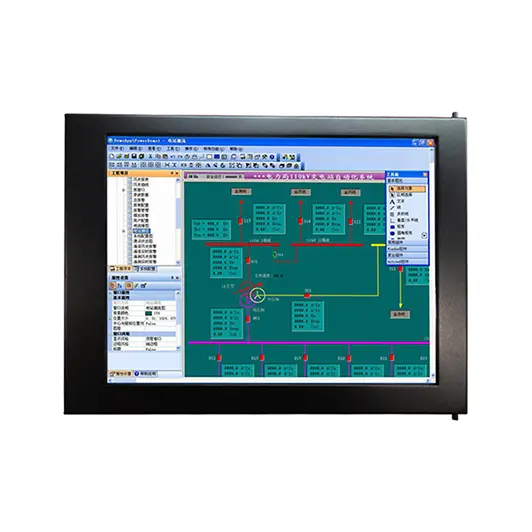

10.4 Inch Wide Temperature Range LCD Monitor

  • 10.4 Inch Wide Temperature Range LCD Monitor
  • The industrial LCD monitor AMG-10IPYY03T5 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles;
    • Built with industrial-grade components for a reliable 24/7 long time operation;
    • Wide range operation temperature from -30~85 ℃;
    • Various touchscreen options like PCAP, Resistive etc.
    • High-end mechanical design to meet tough environmental conditions and requirements,
    • Customization solution available
    Contact Us

Specifications

Model Name

AMG-10IPYY03T5

Screen Size

10.4"

Active Display Area (mm)

211.2(H)x158.4(V)

Pixel Pitch (mm)

0.264(H)x0.264(V)

Display Mode

Normally White

Display Resolution (pixel)

800x600

Contrast Ratio

500:1

Display Color

PCT Touchscreen(10 Points)

Brightness (CD/m )

230

Backlight

LED

Viewing Angles (CR =10)

120(H)x100(V)

Response Time(Typ.Tr+Tf)

35ms

Signal Connector

VGA/DVI/USB

Power Consumption

DC 12V

Dimension(VxHxT)

260.4X193.4X38

Operating Temperature

-30~85℃

Storage Temperature

-30~85℃

Relative Humidity

5(%RH)~90(%RH)
