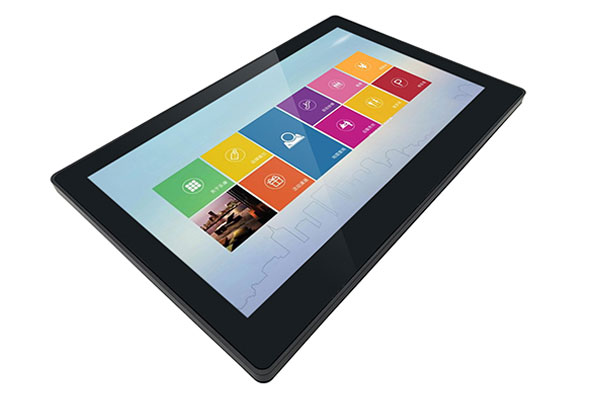

11.6 inch PCAP Touchscreen industrial LCD Monitor

  • 11.6 inch PCAP Touchscreen industrial LCD Monitor
  • The zero-bezel industrial PCAP touch screen LCD monitor AMG-11IPAM01T1 by Amongo features as below:
    • Exceptional quality and highly engineered industrial monitors, industrial-grade components adopted for a reliable 24/7 long time running;
    • Durable mechanical design to meet tough environmental conditions and requirements;
    • Surface hardness MoHs 7;
    • Wide temperature, starting at low temperature;
    • High reliability test, stable quality;
    • These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder applications.
    Application: Kiosks,
    Contact Us

Specifications

Model Name

AMG-11IPAM01T1

Screen Size

11.6"

Active Display Area(mm)

256.32(H)x144.18(V)

Pixel Pitch(mm)

0.1335(H)x0.1335(V)

Display Mode

Normally Black

Display Resolution(pixel)

1920x1080

Contrast Ratio

16.7M

Display Color

900:1

Brightness

600nits

Backlight

LED

Viewing Angles(CR=10)

176(H);176(V)

Response Time(Typ.Tr+Tf)

25ms

Touch Screen

PCAP Touch(10 points)

Light Sensor

Optional

Tempered glass

Optinal

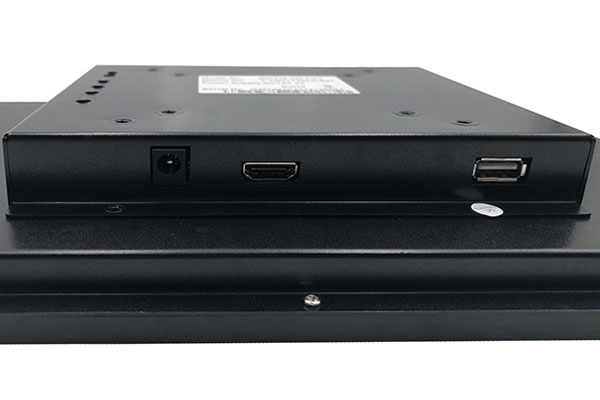

Signal Connector

HDMI

Power Input

DC 12V

Touch Controller

USB

Dimension(VxHxT)mm

289.3x187x42.5

Operating Temperature

-20~70℃(non-condensation)

Storage Temperature

-30~80℃(non-condensation)

Relative Humidity

5~90(%RH)
