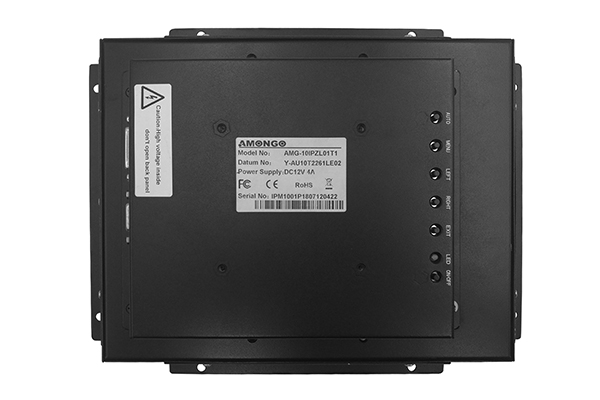

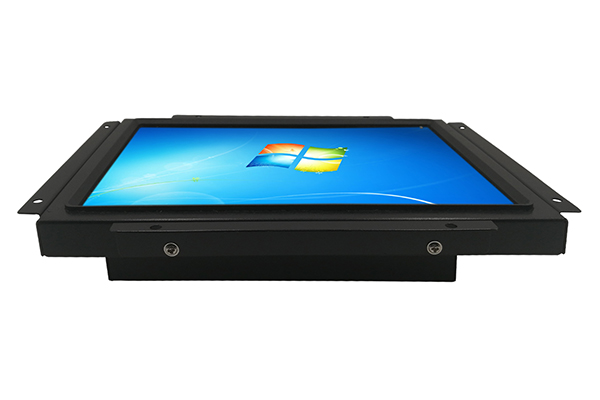

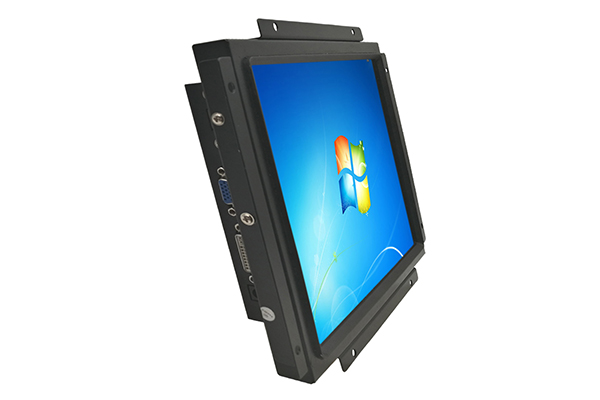

10.4 Inch Rear Mount LCD Monitor

  • 10.4 Inch Rear Mount LCD Monitor
  • The industrial grade rack mount LCD monitor AMG-10IPZL01T1 offered by Amongo is a good choice for application in demanding environment with advantages as below:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7 long timer operation;
    • Touchscreen is optional such as PCAP, Resistive etc
    • Robust mechanical design with Aluminum for metal IP65/NEMA 4 front panel to meet tough environmental conditions and requirements;
    • Easy-to-install with rack mounting enclosures.
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-10IPZL01T1

Screen Size

10.4"

Active Display Area (mm)

211.2(H)x158.4(V)

Pixel Pitch (mm)

0.20625(H)x0.20625(V)

Display Mode

Normally white

Display Resolution (pixel)

262K/16.7M

Contrast Ratio

1024x768

Display Color

900:1

Brightness (CD/㎡)

1000nits(Light Sensor)

Backlight

LED

Viewing Angles (CR =10)

150(H);150(V

Response Time(Typ.Tr+Tf)

16ms

Signal Connector

VGA/DVI/USB

Power Consumption

DC 12V 4A

Dimension(VxHxT)

242.6x188.6x45.8

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃

Relative Humidity

5(%RH)~90(%RH)
