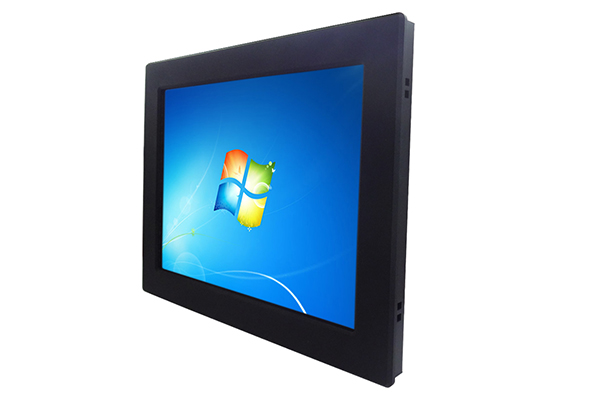

12.1 Inch J1900 Resistive Touch Panel Mount Industrial Panel Pc

  • 12.1 Inch J1900 Resistive Touch Panel Mount Industrial Panel Pc
  • The 12.1 inch industrial panel computer AMG-12PPC01TA from Amongo is a good option for industrial application with features as below:
    • Industrial-grade LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
    • High performance processor, fast access hard drives, stable power supplies for trouble-free function in long time workload;
    • Various touchscreen technologies, like PCAP, Resistive etc.;
    • Robust structure design with metal bezel for front IP65 waterproof;
    • Easy installation for panel mount or embedded mount;
    • Meet with requested sustainability tests and reliability test to survive in the toughest application environment;
    Contact Us

Specifications

Model Name

AMG-12PPC01TA

CPU

Intel Celeron CPU J1900 1.99GHz

RAM

DDRIII 4GB

SSD

128G

VGA ports

1x VGA ports

COM ports

1x COM ports

USB ports

Default 3xUSB 2.0(1xUSB 3.0)

Ethernet

1x 10/100/1000BASE-T Gigabit Ethernet

Audio

Mic-in, Line-out

WiFi

802.11n WiFi

Screen Size

12.1"

Active Area(mm)

245.76(H)x184.32(V)

Display Resolution

1024x768

Pixel Pitch(mm)

0.24(H)x0.24(V)

Display Mode

Normally white

Display Color

16.2M/262K

Brightness(cd/㎡)

500

Contrast Ratio

700:1

Viewing Angles

160(H);160(V)

Response Time

35ms

Touch Screen

Resistive touch(5 wire)

Operating  Temperature

-30~85℃

Storage  Temperature

-30~85℃

Relative Humidity

5[%RH]~90[%RH]
