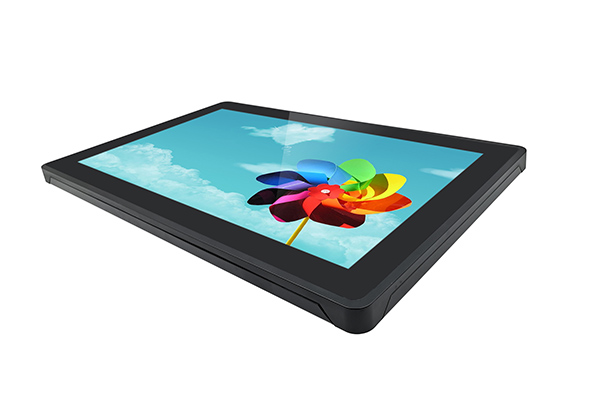

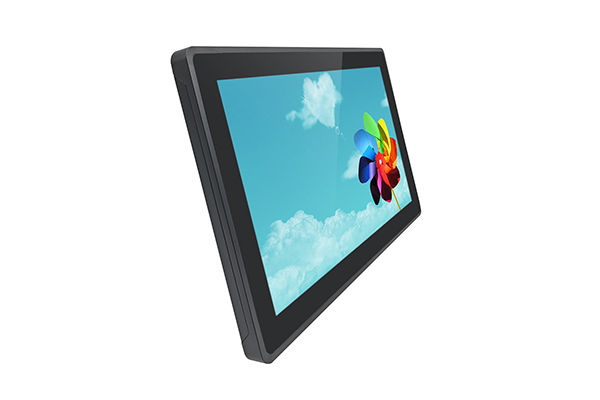

15.6 inch Multi-Point Capacitive Touch Monitor

  • 15.6 inch Multi-Point Capacitive Touch Monitor
  • Amongo's newly launched AMG-15OPTE01T2 is designed to be applied in self-service kiosks for public areas. This innovative monitor is featured as below :

    • Branded LCD panels with perfect image quality and wide viewing angles;

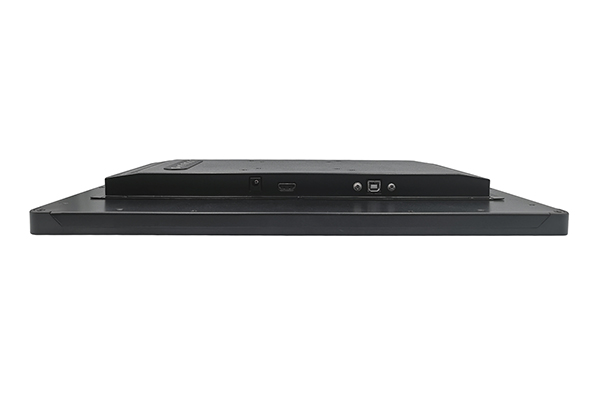

    • Own patented A/D boards with various interface port as VGA/DVI/HDMI/DP etc;

    • Built with industrial-grade components to withstand harsh environments and run 24/7;

    • Molded side frame integrated with latest capacitive touch screen to meet front IP65 ensuring it stays dust-proof and water-resistant;

    • Side fame color optional: black, white

    • Thickness of glass cover is optional for vandal proof application;

    • Customization solution available;

    Contact Us

Specifications

Model Name

AMG-15OPTE01T2

Screen Size

15.6”

Active Display Area(mm)

344.16(H)x193.59(V)

Pixel Pitch(mm)

0.17925(H)x0.17925(V)

Display Resolution (pixel)

1920x1080

Contrast Ratio

1000:1

Display Mode

Normally Black

Touch screen(optional)

PCAP Touch(10 points)

Brightness

250nits

Backlight

LED

Viewing Angles (CR=10)

178(H)x178(V)

Dimension(VxHxT)

386.8x237.1x41

Signal Connector

HDMI

Touch Interface

USB

Input Voltage

DC12V

Operating Systems Support

Windows 7/8/10 / Linux(optional)

Operating Temperature

0~50℃(non-condensation)

Storage Temperature

-20~60℃(non-condensation)

Relative Humidity

5(%RH)~90(%RH)
