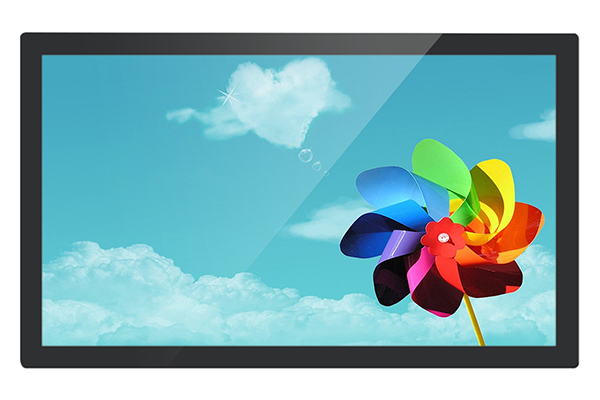

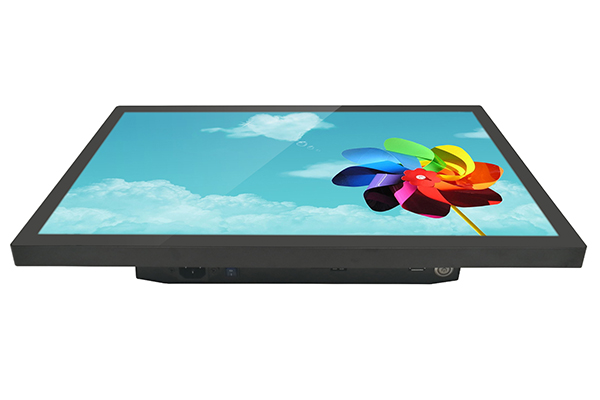

21.5 Inch Zero Bezel PCAP Touch Industrial Panel PC

  • 21.5 Inch Zero Bezel PCAP Touch Industrial Panel PC
  • The 21.5 inch industrial panel pc AMG-21PPC02T3 offed by Amongo is delivered to customers worldwide for different application with advantages as below:
    • High-end branded TFT LCD panels with LED backlight, lower power consumption, better image effect and wider view angles;
    • Fan-less cooling system with reliable Intel processor, customized option available;
    • Bezel-less pcap touchscreen, rapid touch response, better user experience;

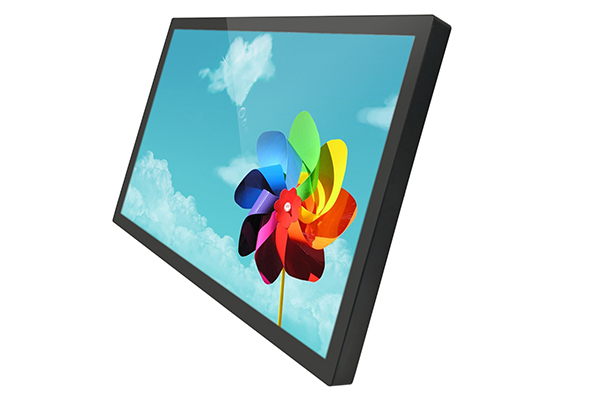

    • Edge-to-edge design true flat surface design, bezel free, sleek and modern look ;
    • IP65 front protection, dust proof ;
    • Option of tempered glass for vandal proof function;
    • Robust casing and structure design to withstand the most harsh conditions, anti-vibration, anti-shock;

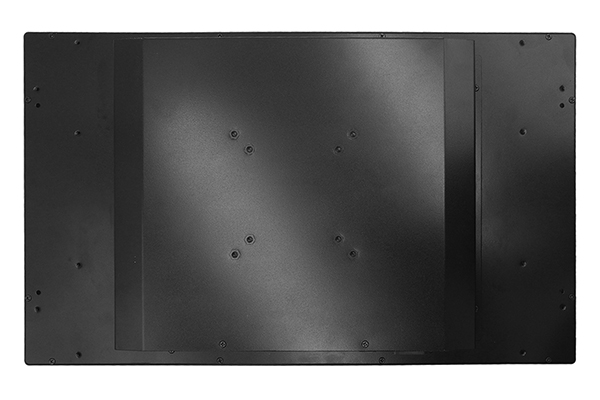

    • Different mounting options: VESA mount, embedded mount etc.
    • Supporting various operation system of Windows, Android, Linux etc.;
    • Meet with reliability test for demanding industrial applications;
    • Passed necessary certificates like CE, RoHS, and ISO system etc.;
    Contact Us

Specifications

Model Name

AMG-21PPC02T3

CPU

Intel ® Haswell i5-4310U dual core 2.0GHz

RAM

DDR3L 13334 GB

SSD

32GB(16/64GB optional)

VGA port

1 x VGA port

HDMI port

1 x HDMI port

USB ports

2xUSB 2.0 ;  2 x USB 3.0

LAN

1x10/100/1000Base-T Gigabit Ethernet

Audio

Mic-in, Line-out

Screen Size

21.5"

Active Area(mm)

476.064(H)x267.786(V)

Pixel Pitch(mm)

0.24795(H)x0.24795(V)

Display Resolution

1920x1080

Display Color

16.7M

Brightness(cd/㎡)

250nits

Contrast Ratio

3000:1

Viewing Angles

178(H);178(V)

Backlight

LED

Response Time(Tr+Tf)

18ms

Touch Screen

PCAP Touch(10 points)

Tempered glass

Optional

Dimension(VxHxT)mm

511.9x303.4x61.2

Operating Temperature

-30~85℃(non-condensation)

Storage Temperature

-30~85℃(non-condensation)

Relative Humidity

5~90(%RH)
