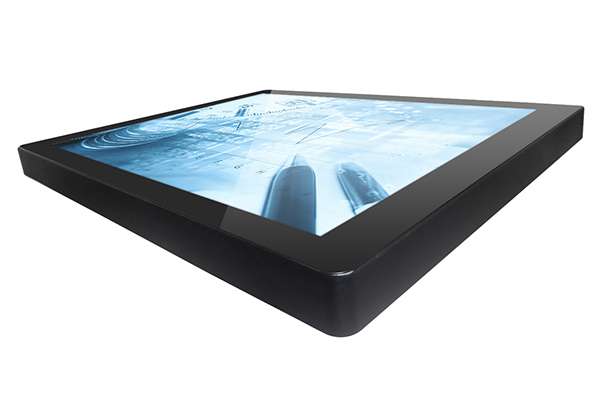

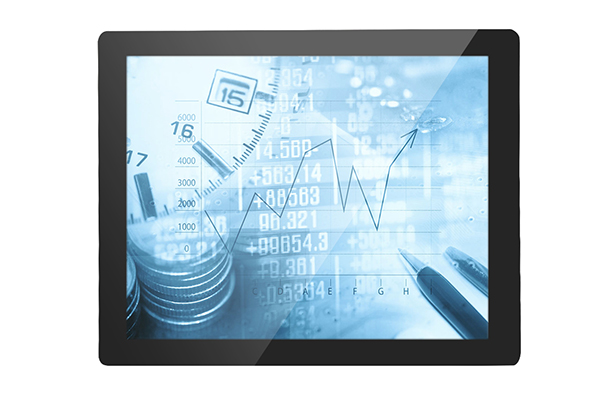

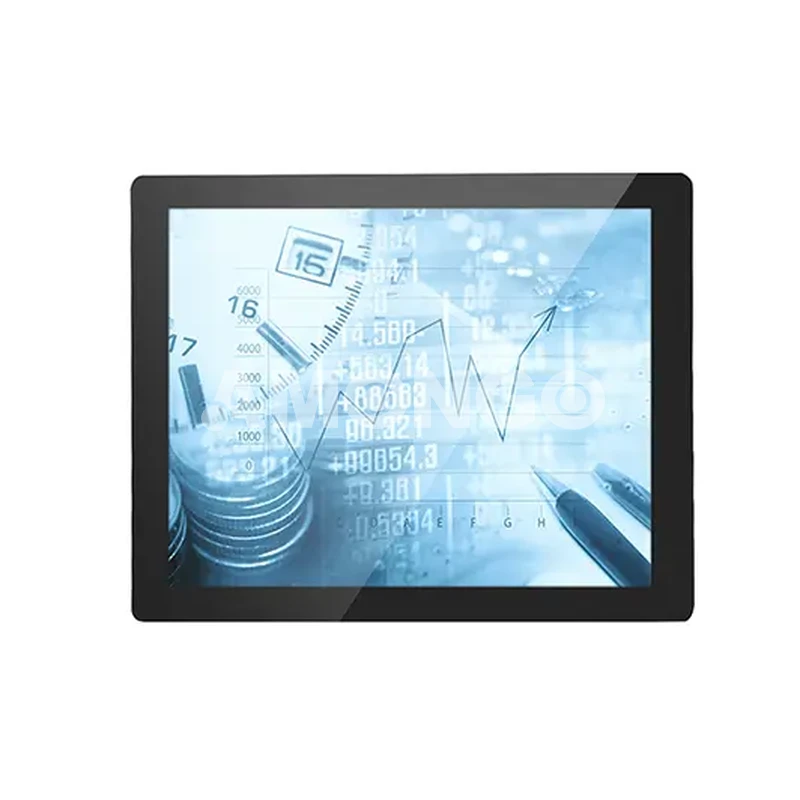

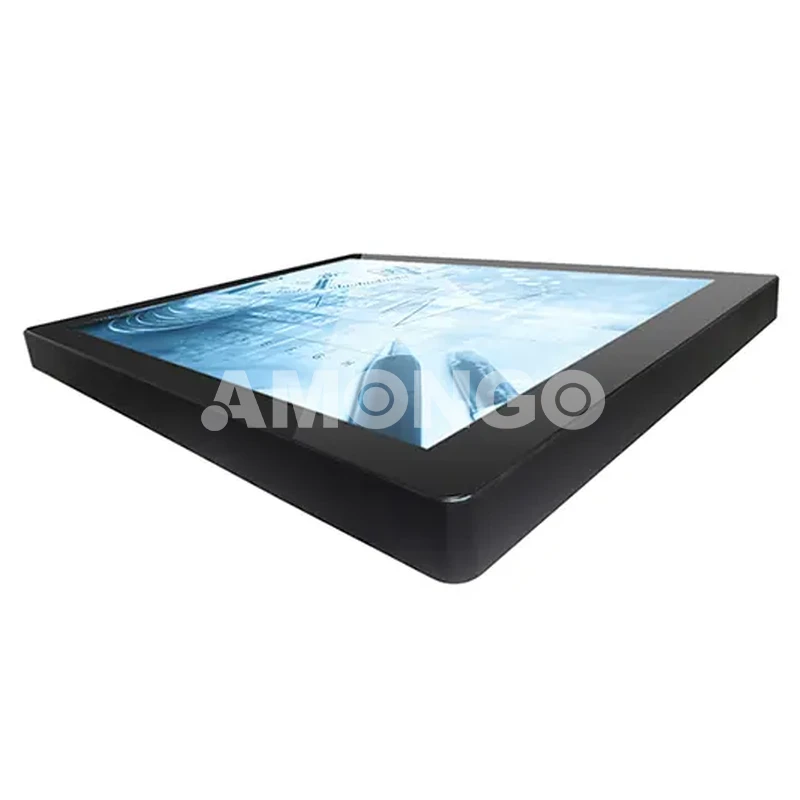

17 Inch Wide Temperature Range LCD Monitor

  • 17 Inch Wide Temperature Range LCD Monitor
  • The industrial LCD monitor AMG-17OPHY01T1 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles;
    • Built with industrial-grade components for a reliable 24/7 long time operation;
    • Wide range operation temperature from -30~85 ℃;
    • Privacy Film for end-user security;
    • Customization solution available
    Contact Us

Specifications

Model Name

AMG-17OPHY01T1

Screen Size

17"

Active Display Area(mm)

337.920(H)x270.336(V)

Pixel Pitch(mm)

0.264(H)x0.264(V)

Display Mode

Normally white

Display Resolution(pixel)

1280x1024

Contrast Ratio

1000:1

Brightness

350nits

Backlight

LED

Viewing Angles(CR=10)

170(H);160(V)

Response Time(Typ.Tr+Tf)

5ms

Touch Screen

PCAP Touch(10 points)

Electromagnetic Pen

Optional

Privacy Film

Optional

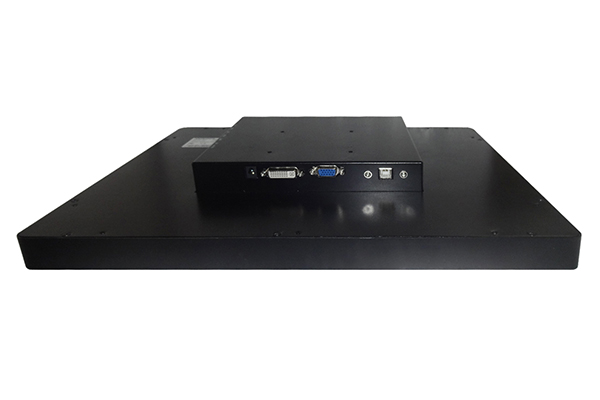

Signal Connector

VGA/DVI-D/USB

Power Consumption

DC 12V

Touch Controller

USB

Dimension(VxHxT)

446x321x55

Operating Temperature

-30~85℃

Storage Temperature

-30~85℃

Relative Humidity

5(%RH)~90(%RH)
