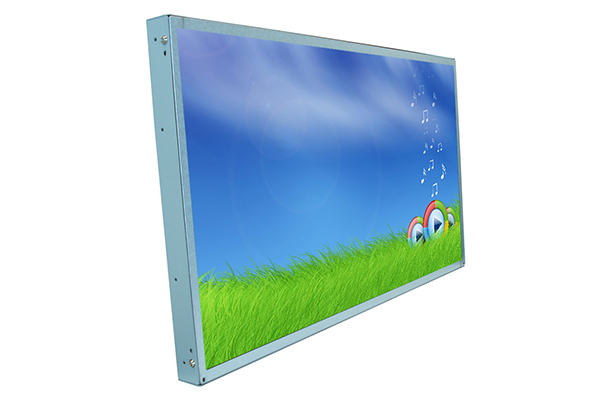

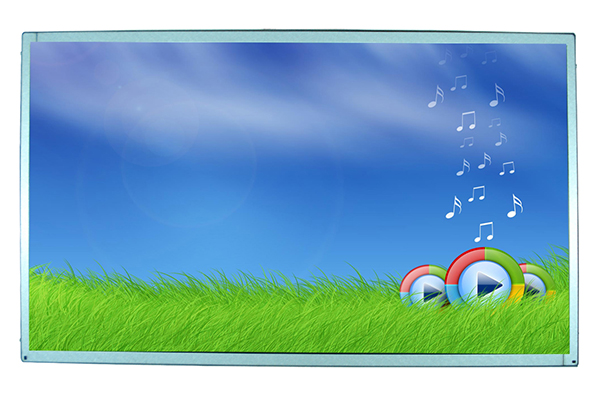

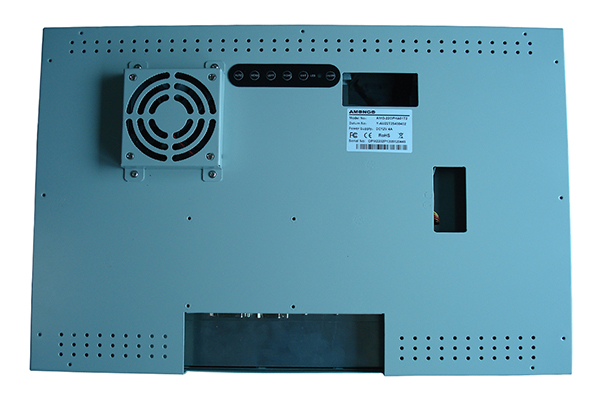

22 Inch Open Frame LCD Monitor

  • 22 Inch Open Frame LCD Monitor
  • The open frame LCD monitor AMG-22OPHA01T2 offered by Amongo is welcomed by our customers for the following benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles
    • Built with industrial-grade components for a reliable 24/7/365 operation
    • LED backlight for low power consumption to save more energy
    • Various touchscreen options like PCAP, Resistive, IR, SAW etc
    • High-end mechanical design to meet tough environmental conditions and requirements,
    • Customization solution available
    Contact Us

Specifications


Model Name

AMG-22OPHA01T2

Screen Size

22"

Active Display Area (mm)

473.76 (H) x 296.1 (V)

Pixel Pitch (mm)

0.282 (H) x 0.282 (V)

Display Mode

Normally Black

Display Resolution (pixel)

1680x1050

Contrast Ratio

1000:1

Display Color

16.7M

Brightness (CD/㎡)

300

Backlight

LED

Viewing Angles (CR =10)

178 (H); 178(V)

Response Time(Typ.Tr+Tf)

20ms

Signal Connector

VGA/DVI/DC 2.0

Power Consumption

DC 12V

Dimension(VxHxT)

532x322.6x60.5

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen(Optional)

IR / Resistive
